Grab Handle

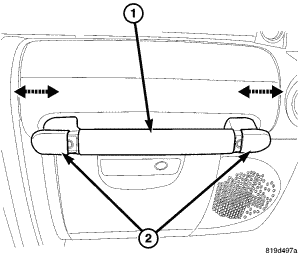

Fig 1: Identifying Grab Handle
GC0064745Courtesy of CHRYSLER LLC
  1. Using a trim stick C-4755 or equivalent, slide the grab handle trim caps (2) off the trim handle (1).

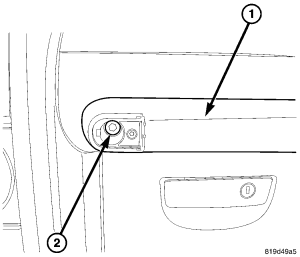

    Fig 2: Removing/Installing Bolts & Grab Handle
    GC0064746Courtesy of CHRYSLER LLC
  2. Remove the bolts (2) and remove the grab handle (1).
