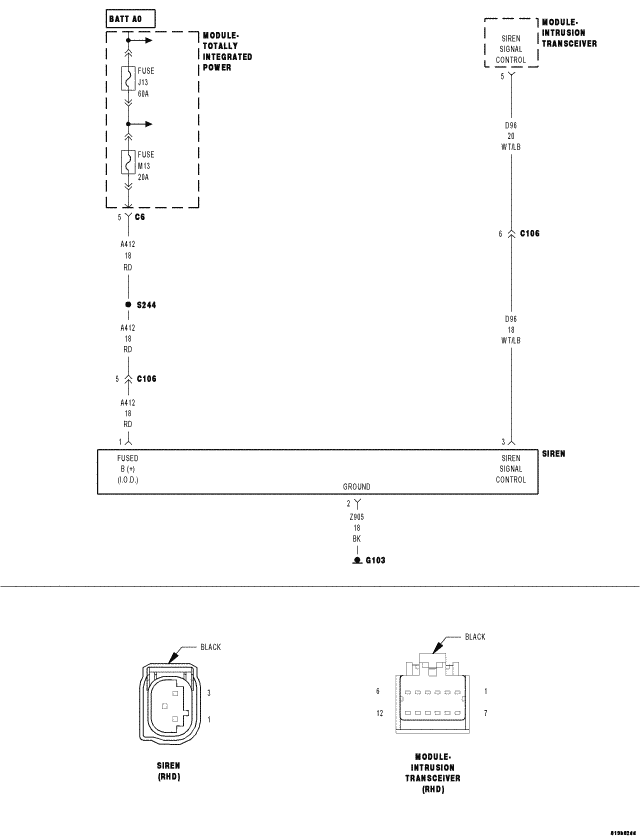

Home >> Jeep >> 2007 >> Wrangler Rubicon, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Vehicle Theft Security System - Electrical Diagnostics >> Vehicle Theft Security - Electrical Diagnostics >> DTC Troubleshooting >> B1A3C-Internal Siren Battery >> Circuit Schematic
