Body - Interior & Exterior: Tailgate: Latch: Removal: Latch

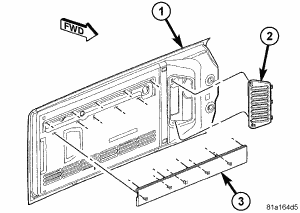

Fig 1: Removing/Installing Inner Latch Trim

Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

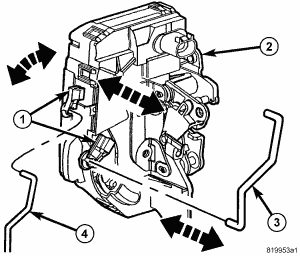

   Fig 2: Removing/Installing Rod Clips & Latch Rods

   Courtesy of CHRYSLER LLC
2. Release the rod clips (1) and disconnect the latch rods (3 and 4).

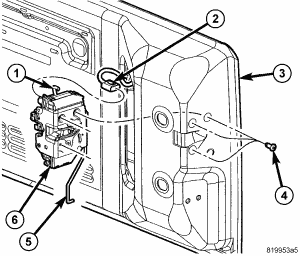

   Fig 3: Removing/Installing Screws & Latch

   Courtesy of CHRYSLER LLC
3. Remove the screws (4) and remove the latch (6).
4. Disconnect the electrical connector (2).
