Exhaust System & Turbocharger: Muffler: Removal

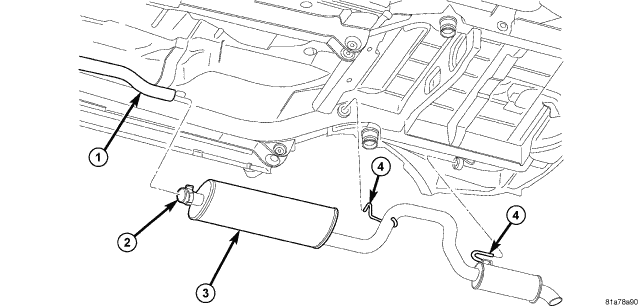

Fig 1: Muffler/Resonator Assembly

Courtesy of CHRYSLER LLC

1 - CATALYTIC CONVERTER PIPE

2 - CLAMP

3 - MUFFLER/RESONATOR/TAILPIPE ASSEMBLY

4 - HANGER ROD

1. Raise vehicle on hoist.
2. Remove exhaust pipe to muffler and tailpipe assembly clamp nuts (2).
3. Using a suitable pry bar, pry muffler and tailpipe assembly out of exhaust hanger.
4. Remove muffler and tailpipe assembly (3) from vehicle.
