Water In Fuel Sensor Faulted High (BCM): Notes

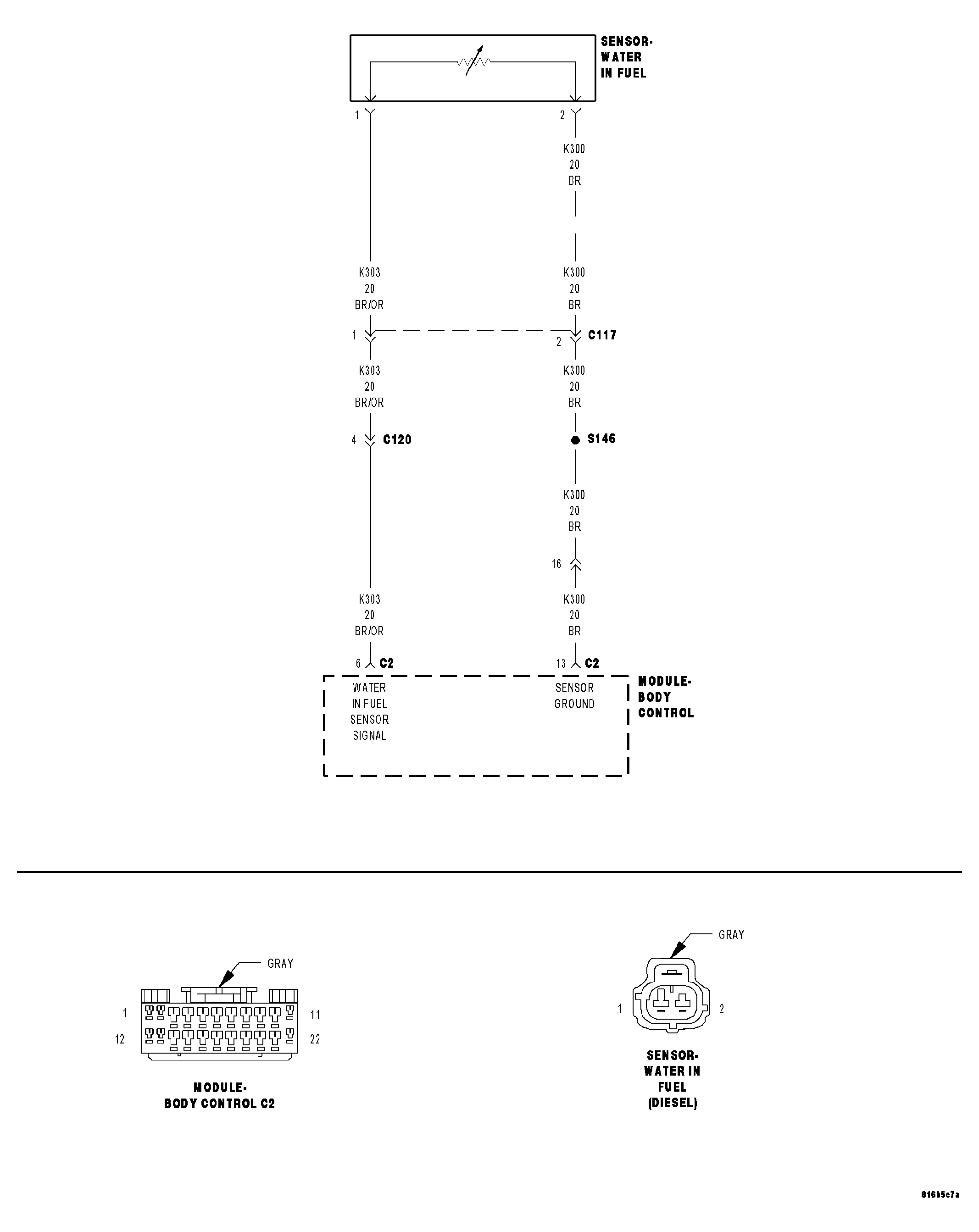

Fig 1: Water In Fuel Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   With the Ignition on.

2. Set Condition:

   The BCM detects a High condition on the Water In Fuel Sensor Signal Circuit.
