Oil Pressure Sensor Faulted High (BCM): Notes

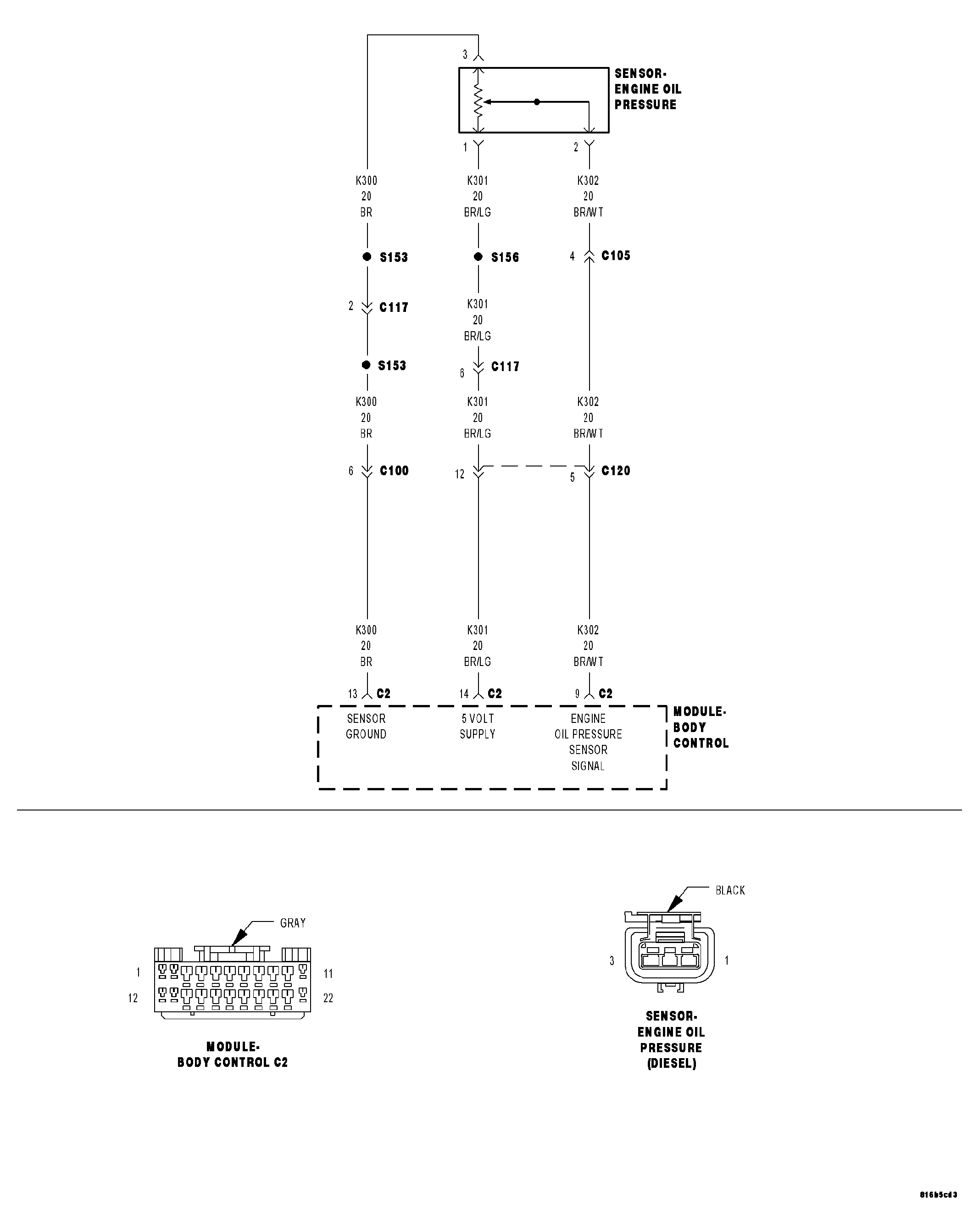

Fig 1: Engine Oil Pressure Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   With the ignition on.

2. Set Condition:

   Oil Pressure Sensor voltage high.
