*Instrument Cluster Inoperative: Notes

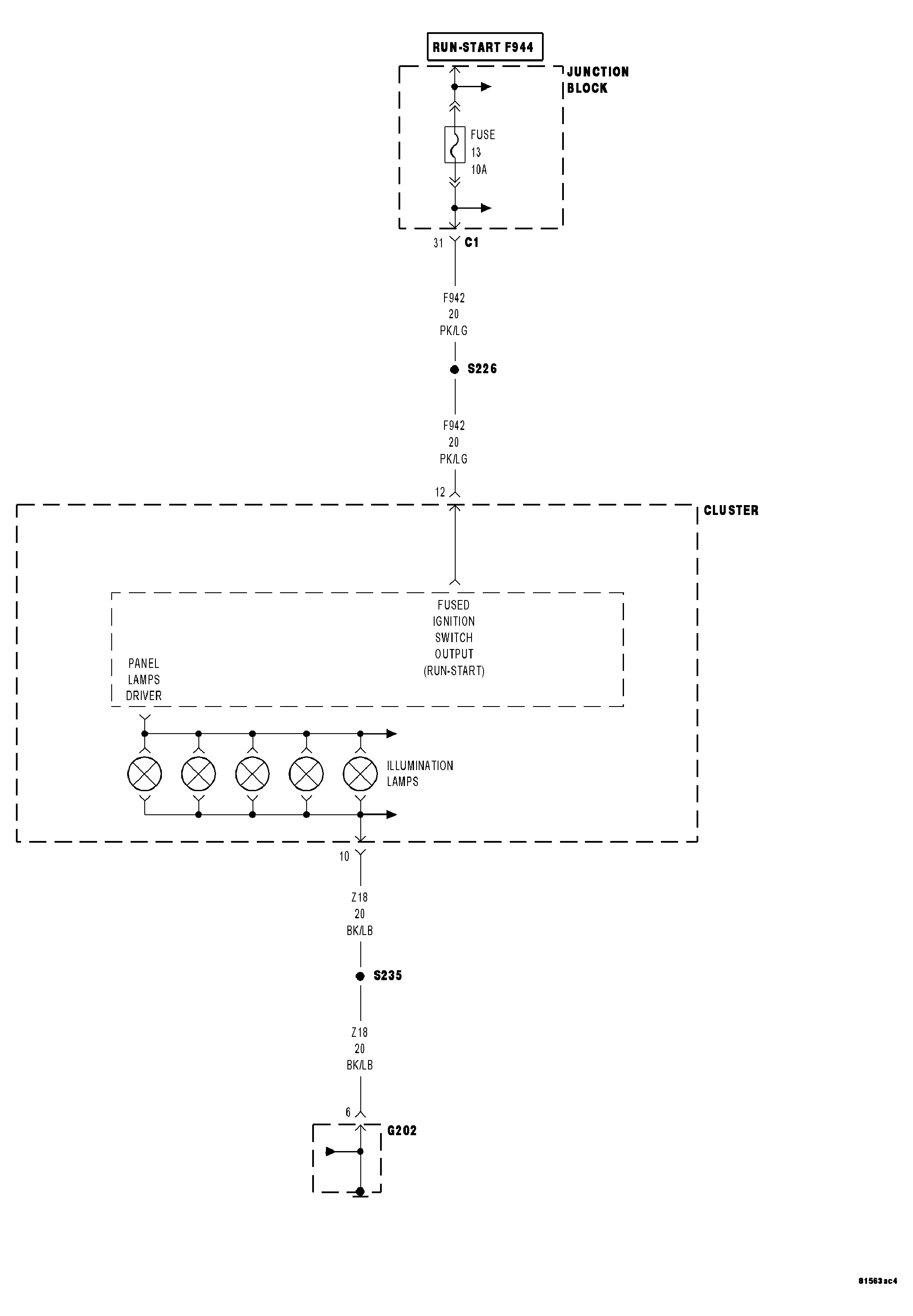

Fig 1: Instrument Cluster Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

Possible Causes
(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT SHORT TO GROUND
(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
(Z18) INSTRUMENT CLUSTER GROUND CIRCUIT OPEN
INSTRUMENT CLUSTER
