Diagnostic Test

1) OIL PRESSURE SENSOR VOLTAGE ABOVE 4.92 VOLTS
Start the engine.

With a scan tool, read the Oil Pressure Sensor voltage.

Is the voltage above 4.92 volts?

Yes
1. Go To step 2).
No
1. Refer to INTERMITTENT CONDITION .
2. Perform POWERTRAIN VERIFICATION TEST .
2) OIL PRESSURE SENSOR

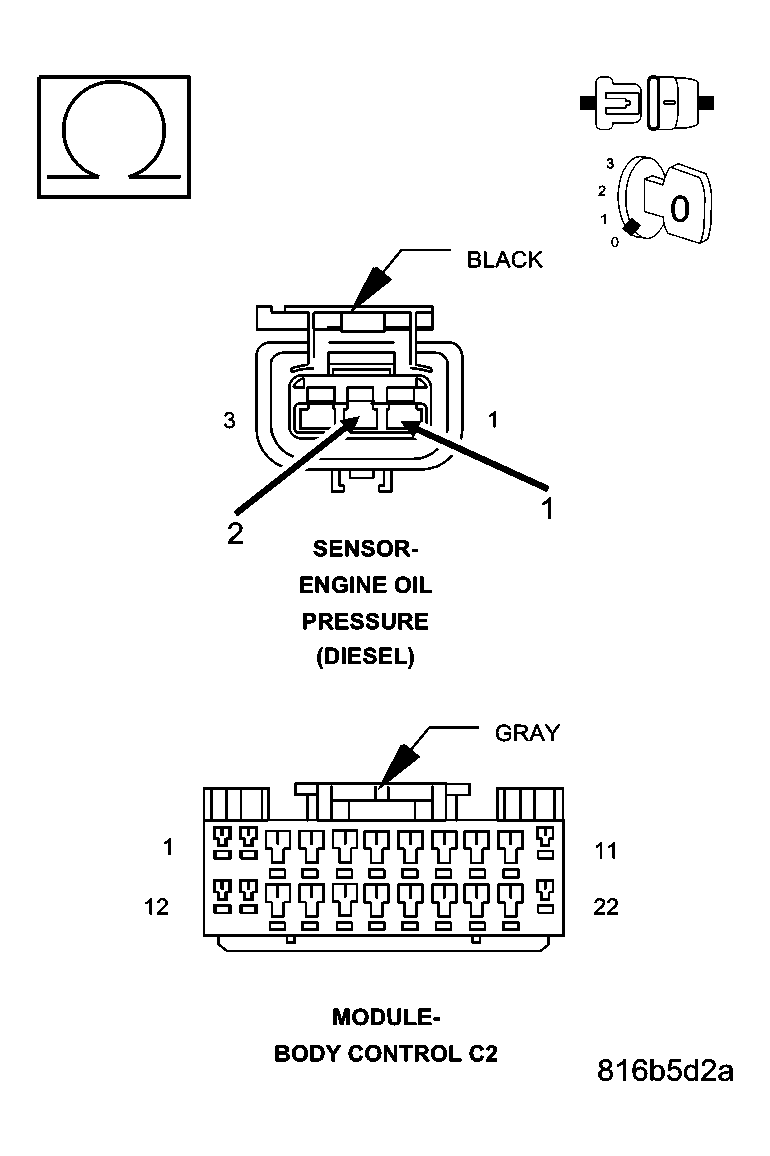

Fig 1: Connecting Jumper Wire Between Toil Pressure Sensor Signal Circuit And Sensor Ground Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Oil Pressure Sensor harness connector.

Connect a jumper wire between the (K302) Oil Pressure Sensor Signal circuit and the (K300) Sensor ground circuit in the Sensor harness connector.

Ignition on, engine not running.

With a scan tool, monitor the Oil Pressure Sensor voltage.

Is the voltage below 1.0 volt with the jumper wire installed?

Yes
1. Replace the Oil Pressure Sensor.
2. Perform BODY VERIFICATION TEST .
No
1. Go To step 3).
  NOTE: Remove the jumper wire before continuing.
3) (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

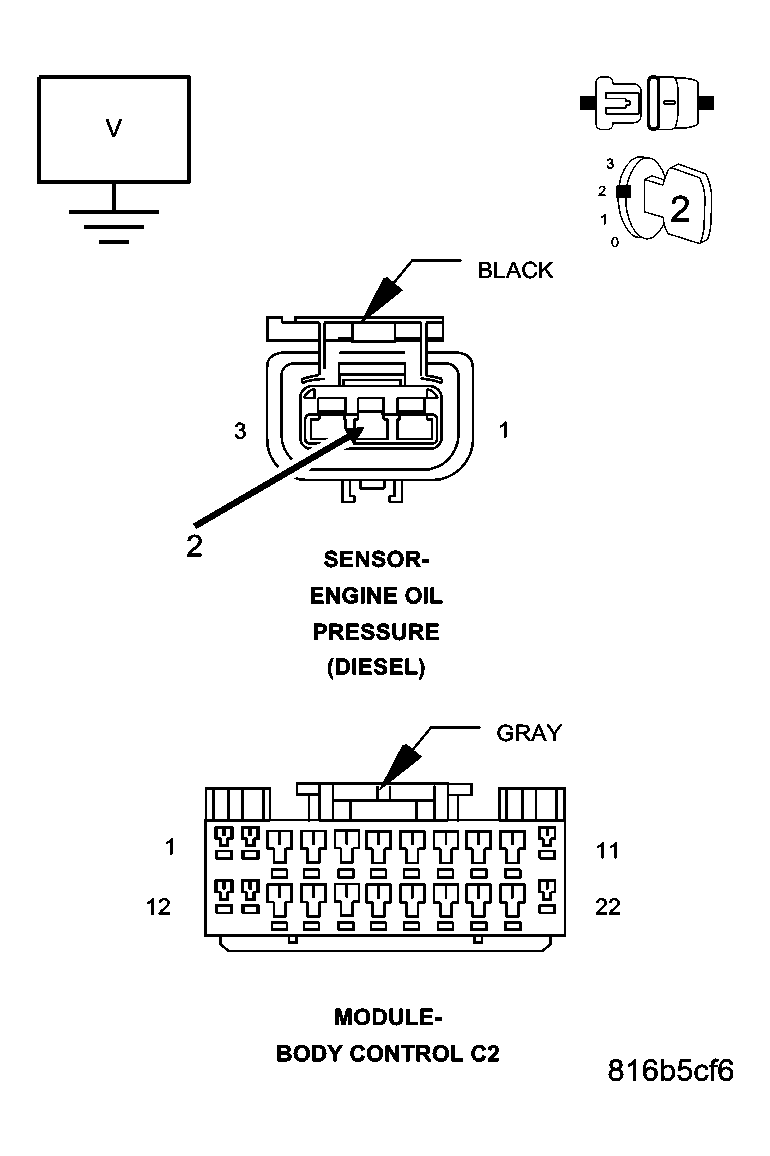

Fig 2: Measuring Voltage On Oil Pressure Sensor Signal Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the BCM C2 harness connector.

Ignition on, engine not running.

Measure the voltage on the (K302) Oil Pressure Sensor Signal circuit in the Oil Pressure Sensor harness connector.

Is the voltage above 5.2 volts?

Yes
1. Repair the short to battery voltage in the (K302) Oil Pressure Sensor Signal circuit.
2. Perform BODY VERIFICATION TEST .
No
1. Go To step 4).
4) (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT OPEN

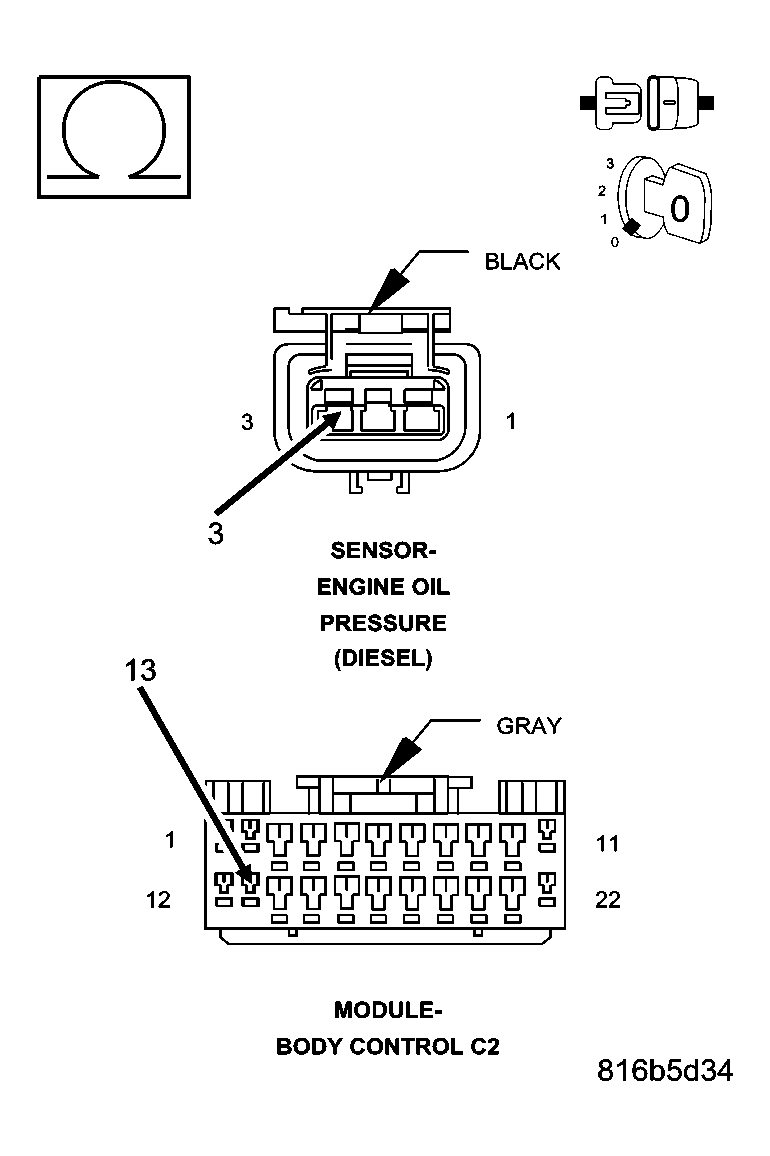

Fig 3: Measuring Resistance Of Oil Pressure Sensor Signal Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Measure the resistance of the (K302) Oil Pressure Sensor Signal circuit.

Is the resistance below 5.0 ohms?

Yes
1. Go To step 5).
No
1. Repair the open in the (K302) Oil Pressure Sensor Signal circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
5) (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (K301) 5-VOLT SUPPLY CIRCUIT

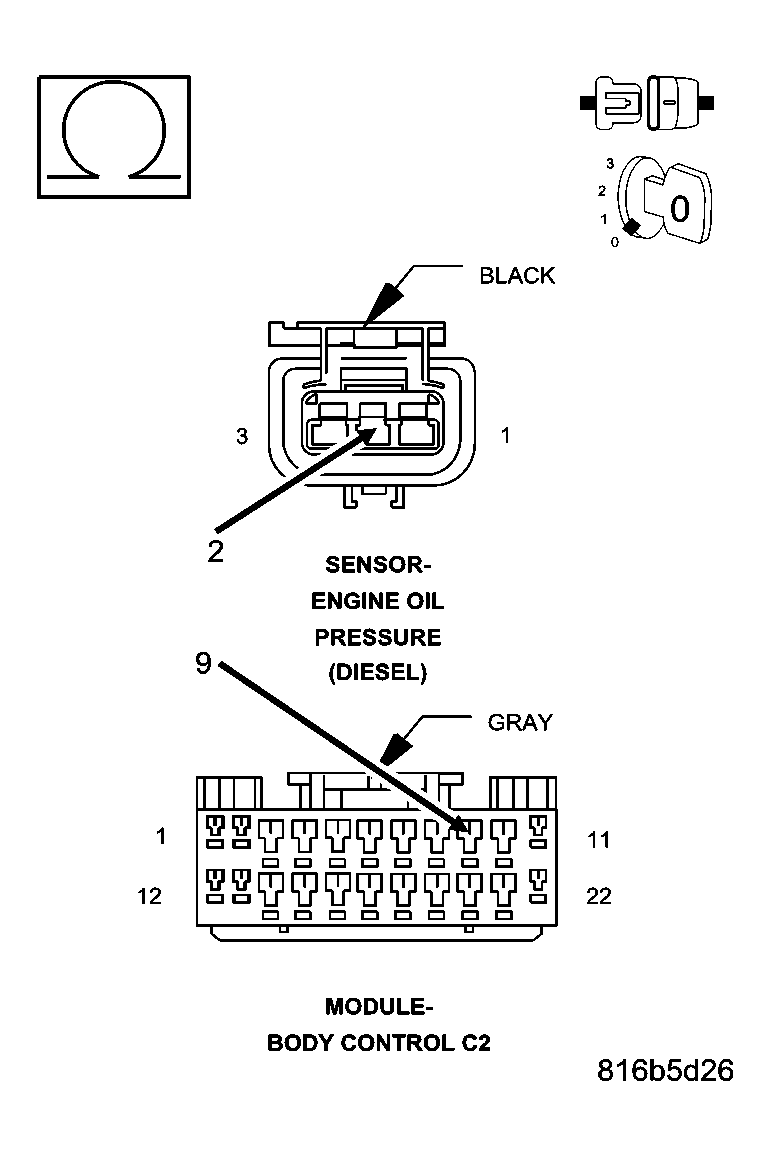

Fig 4: Measuring Resistance Between Oil Pressure Sensor Signal Circuit And 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC

Disconnect the BCM C2 harness connector.

Measure the resistance between the (K302) Oil Pressure Sensor Signal circuit and the (K301) 5-volt Supply circuit in the Oil Pressure Sensor harness connector.

Is the resistance below 100 ohms?

Yes
1. Repair the short between the (K301) 5-volt Supply circuit and the (K302) Oil Pressure Sensor Signal circuit.
2. Perform BODY VERIFICATION TEST .
No
1. Go To step 6).
6) (K300) SENSOR GROUND CIRCUIT OPEN

Fig 5: Measuring Resistance Of Sensor Ground Circuit
Courtesy of CHRYSLER LLC

Measure the resistance of the (K300) Sensor ground circuit.

Is the resistance below 5.0 ohms?

Yes
1. Go To step 7).
No
1. Repair the open in the (K300) Sensor ground circuit.
2. Perform BODY VERIFICATION TEST .
7) BCM
NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes
1. Repair as necessary.
2. Perform BODY VERIFICATION TEST .
No
1. Replace and program the Powertrain Control Module per Service Information.
2. Perform POWERTRAIN VERIFICATION TEST .
