*All Gauges Inoperative: Notes

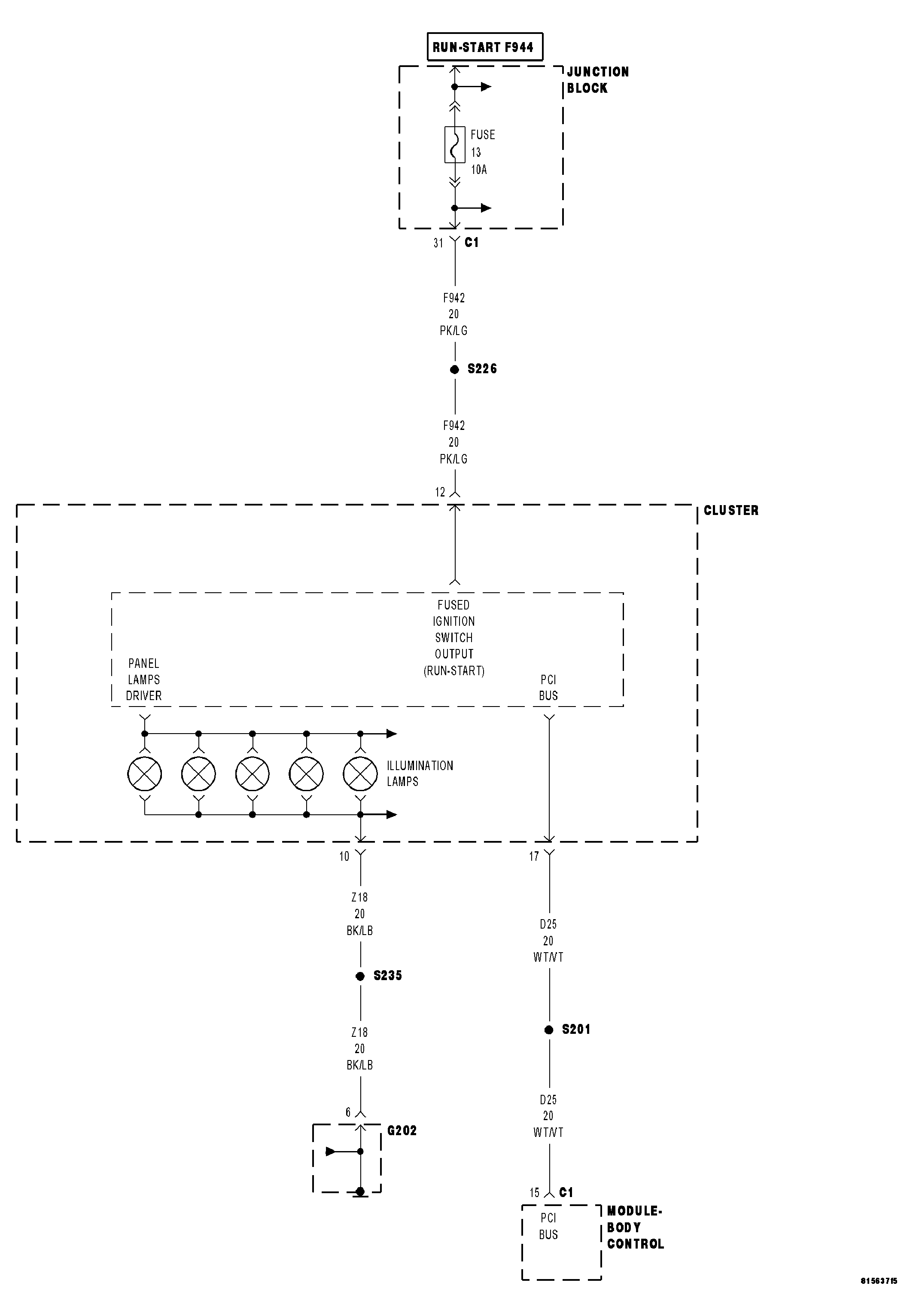

Fig 1: Instrument Cluster Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

Possible Causes
NO RESPONSE - PCI BUS
NO RESPONSE - PCI BUS - POWERTRAIN CONTROL MODULE
NO RESPONSE - PCI BUS - INSTRUMENT CLUSTER
(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT SHORT TO GROUND
(Z18) INSTRUMENT CLUSTER GROUND CIRCUIT OPEN
(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
INSTRUMENT CLUSTER
