Latch Release Cable

  1. Remove the battery. Refer to REMOVAL .

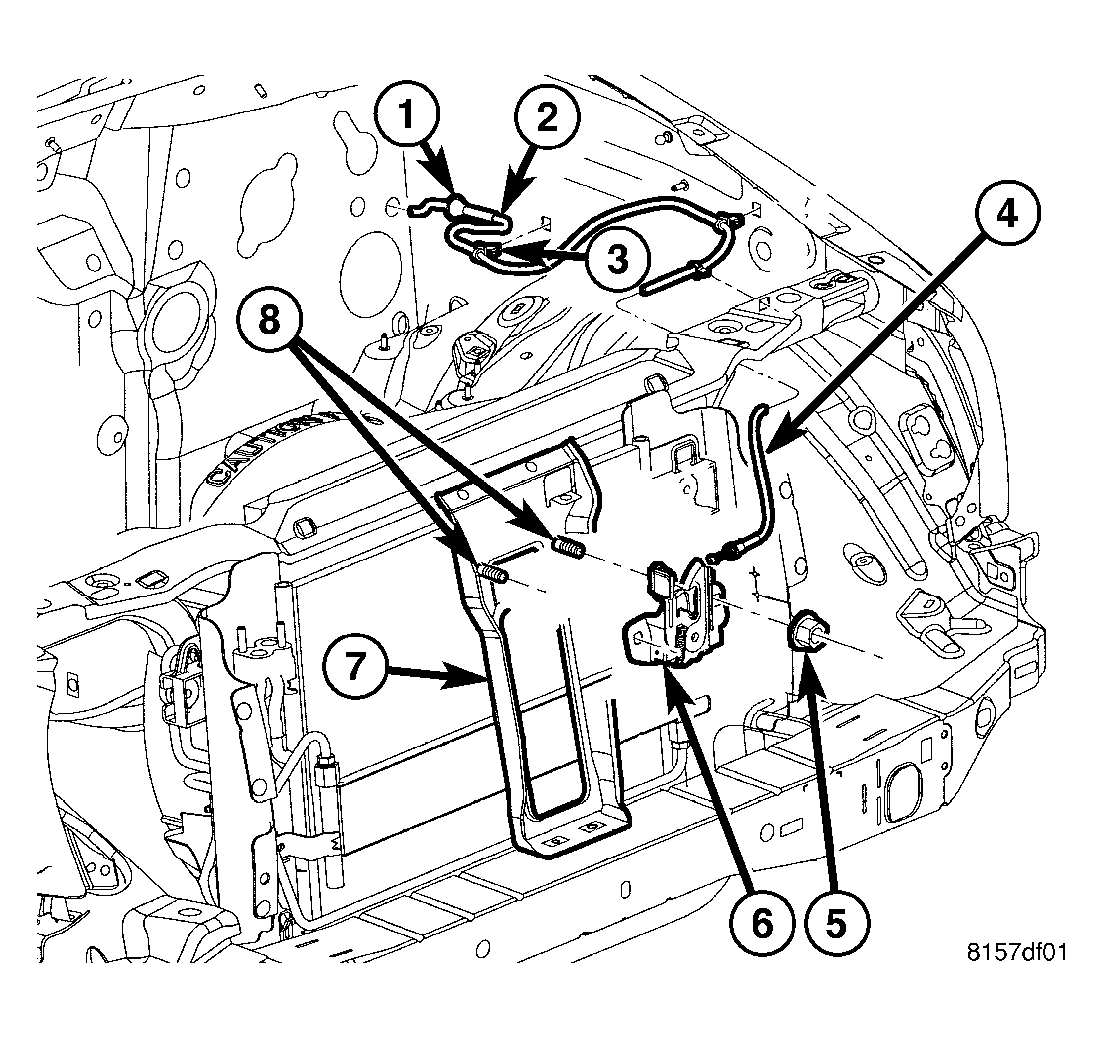

    Fig 1: Hood Latch Components
    GC0046684Courtesy of CHRYSLER LLC
  2. Remove the hood latch. See REMOVAL .
    Fig 2: Removing/Installing PCM
    GC0026398Courtesy of CHRYSLER LLC
    1 - PCM
    2 - MOUNTING BOLTS (3)
    3 - 32-WAY CONNECTORS
  3. Remove the powertrain control module. Refer to REMOVAL .

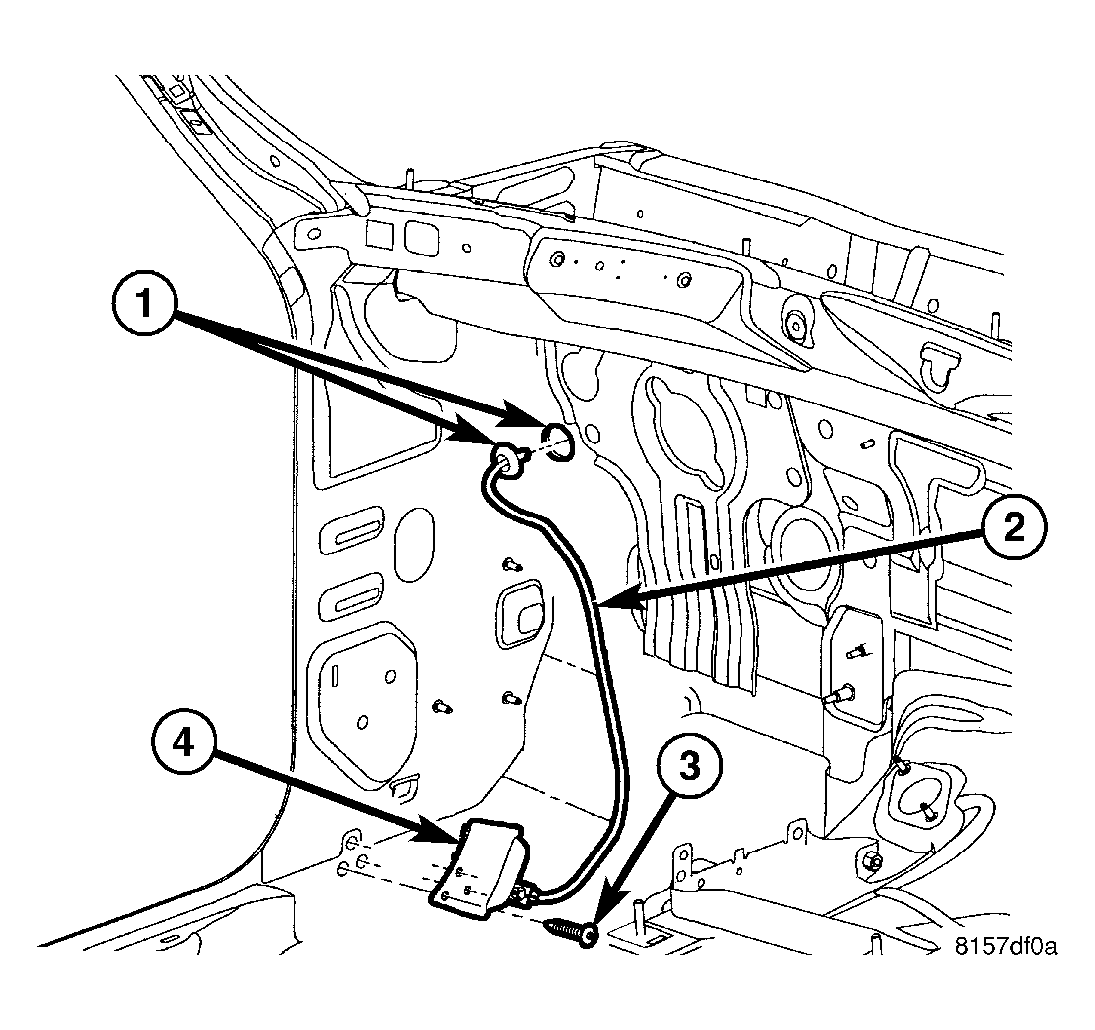

    Fig 3: Identifying Hood Release
    GC0046686Courtesy of CHRYSLER LLC
  4. Remove the hood release handle. See REMOVAL .
  5. Disconnect the attaching clips and remove the cable from the inside.
