Front Fender

Fig 1: Fascia Inner Support

Courtesy of CHRYSLER LLC

1 - INNER SUPPORT CLIP

2 - SIDE REPEATER CONNECTOR (IF EQUIPPED)

3 - FASCIA ASSEMBLY

4 - FOG LAMP

Release the inner support clips from within the fascia between the lights.

Fig 2: Front Fascia

Courtesy of CHRYSLER LLC

1 - ELECTRICAL CONNECTOR

2 - PUSH PINS

3 - FRONT FASCIA ASSEMBLY

4 - LOWER SCREWS

5 - PLASTIC RIVETS (2)

6 - INNER SUPPORT CLIPS

7 - SUPPORT TABS

Release the support tabs beneath the headlamps and position the fascia assembly aside to access the fender support bracket bolts.

Fig 3: Fender Support Bracket

Courtesy of CHRYSLER LLC

1 - FENDER BOLTS (2)

2 - FENDER

3 - FENDER SUPPORT BRACKET

4 - SUPPORT BRACKET BOLTS (2)

5 - U-NUTS (2)

Remove the fender support bracket bolts.

Fig 4: Front Fender

Courtesy of CHRYSLER LLC

1 - HYDRAFORM

2 - U-NUTS

3 - BOLTS (3)

4 - FENDER

5 - BOLTS (2)

6 - BOLTS (2)

Remove the bolts and remove the fender.

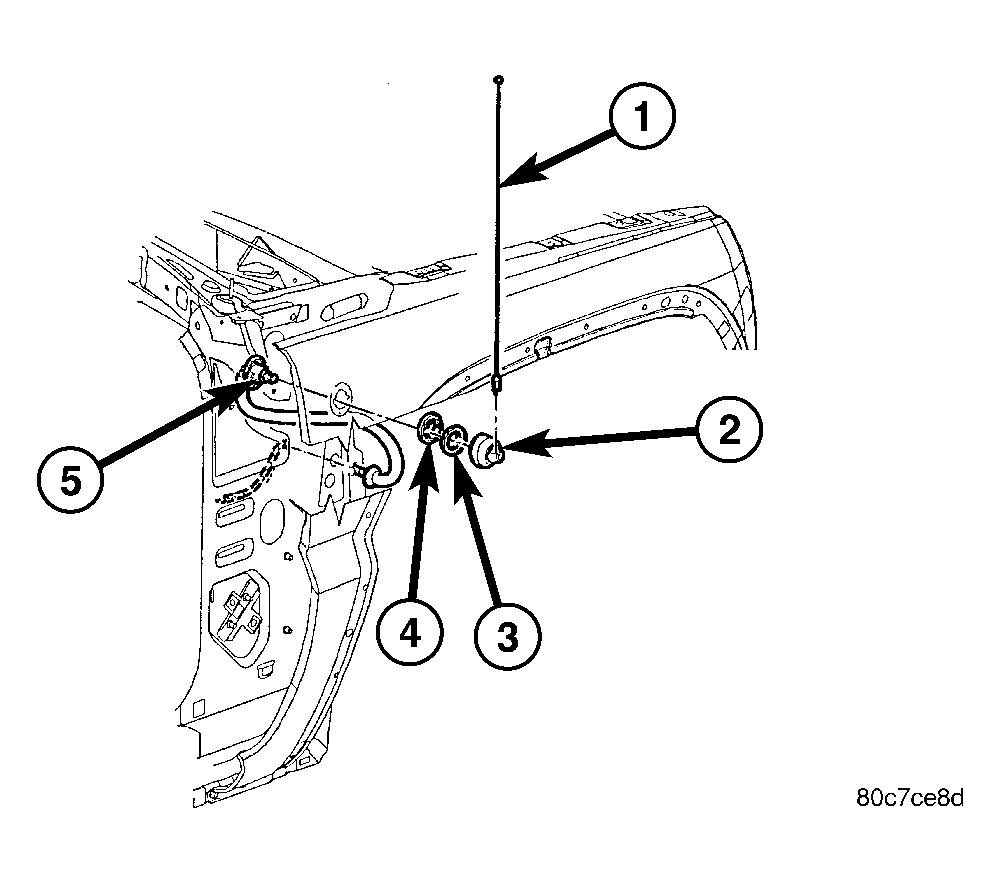

Fig 5: Antenna Body And Cable

Courtesy of CHRYSLER LLC

1 - ANTENNA MAST

2 - ANTENNA COVER

3 - ANTENNA BASE MOUNTING NUT

4 - ANTENNA BEZEL ADAPTER

5 - ANTENNA BODY AND CABLE
