Rear Axle - 8 1/4: Differential: Disassembly: Differential

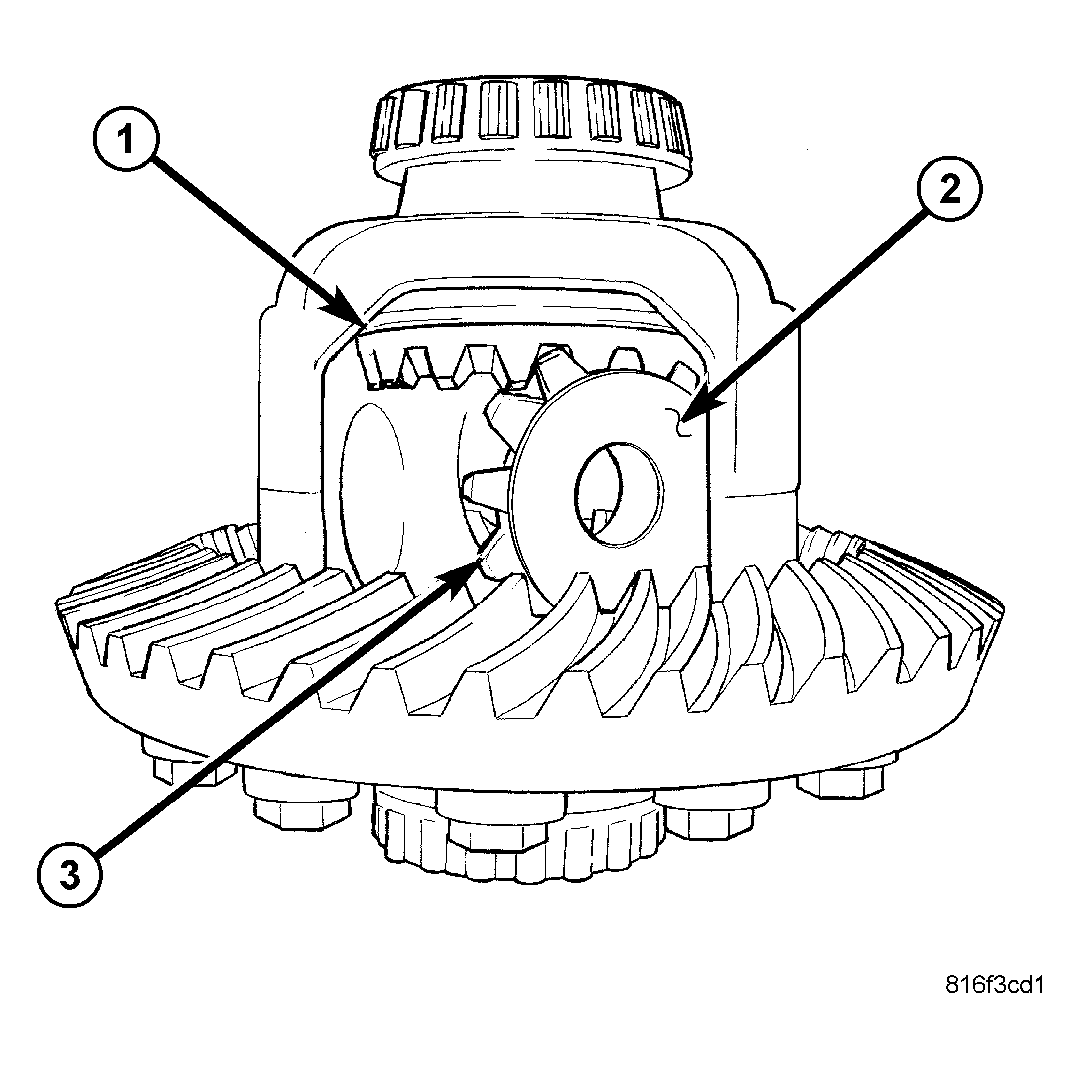

Fig 1: First Pinion Gear

Courtesy of CHRYSLER LLC

1. Rotate one pinion gear (2) with thrust washer (3) to the differential window (1) and remove gear and thrust washer.

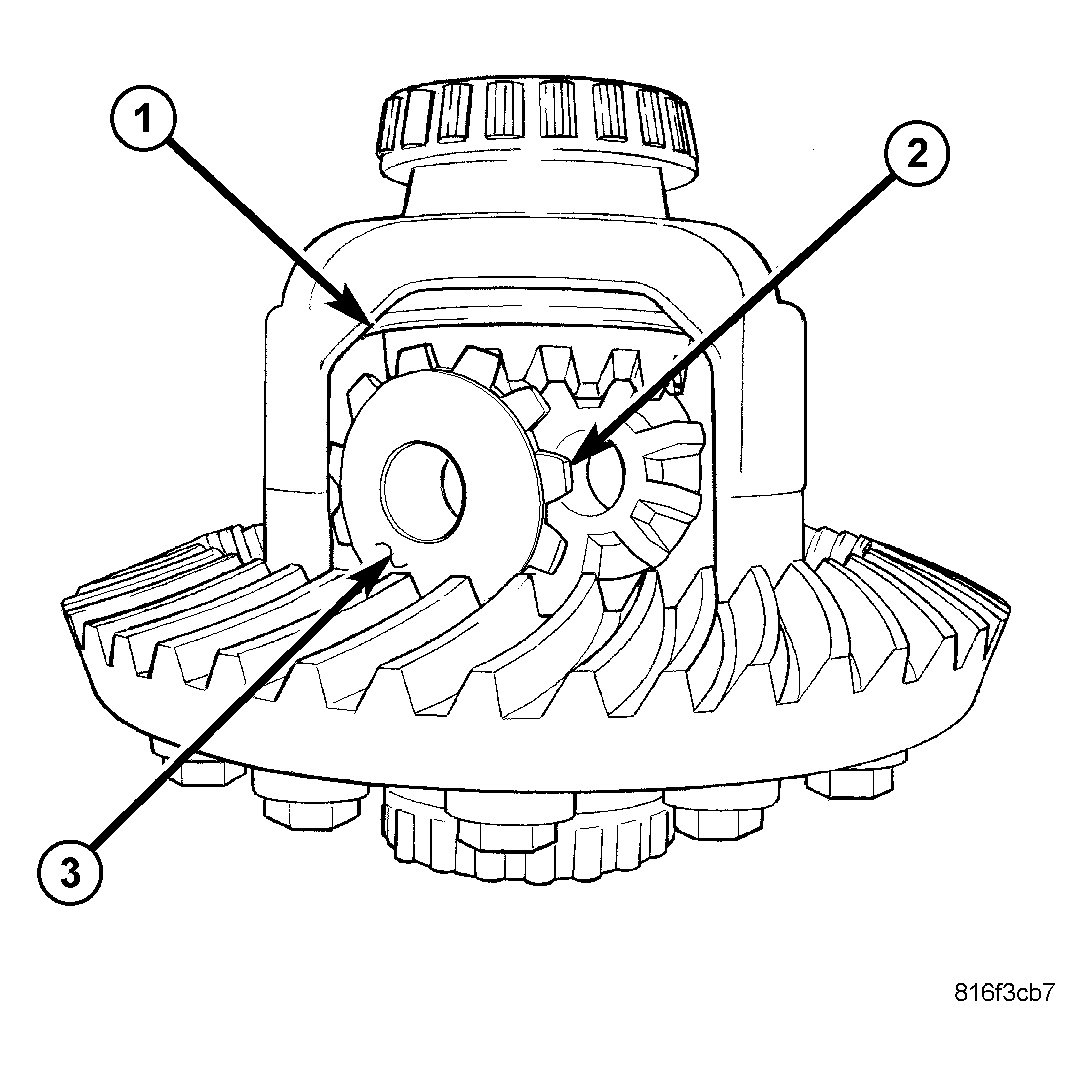

   Fig 2: Second Pinion Gear

   Courtesy of CHRYSLER LLC
2. Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1) and remove gear and washer.

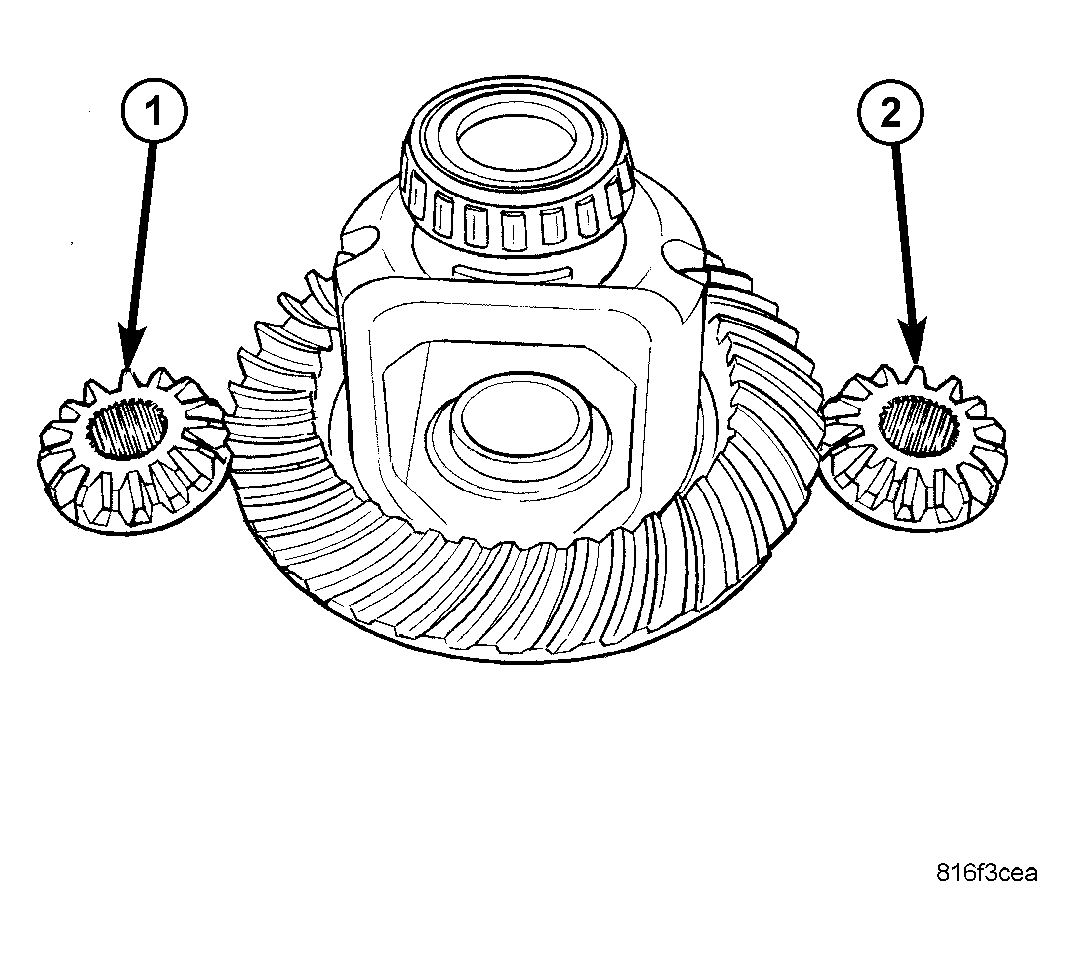

   Fig 3: Side Gears

   Courtesy of CHRYSLER LLC
3. Remove differential side gears (1) (2) and thrust washers.
