Gear Backlash

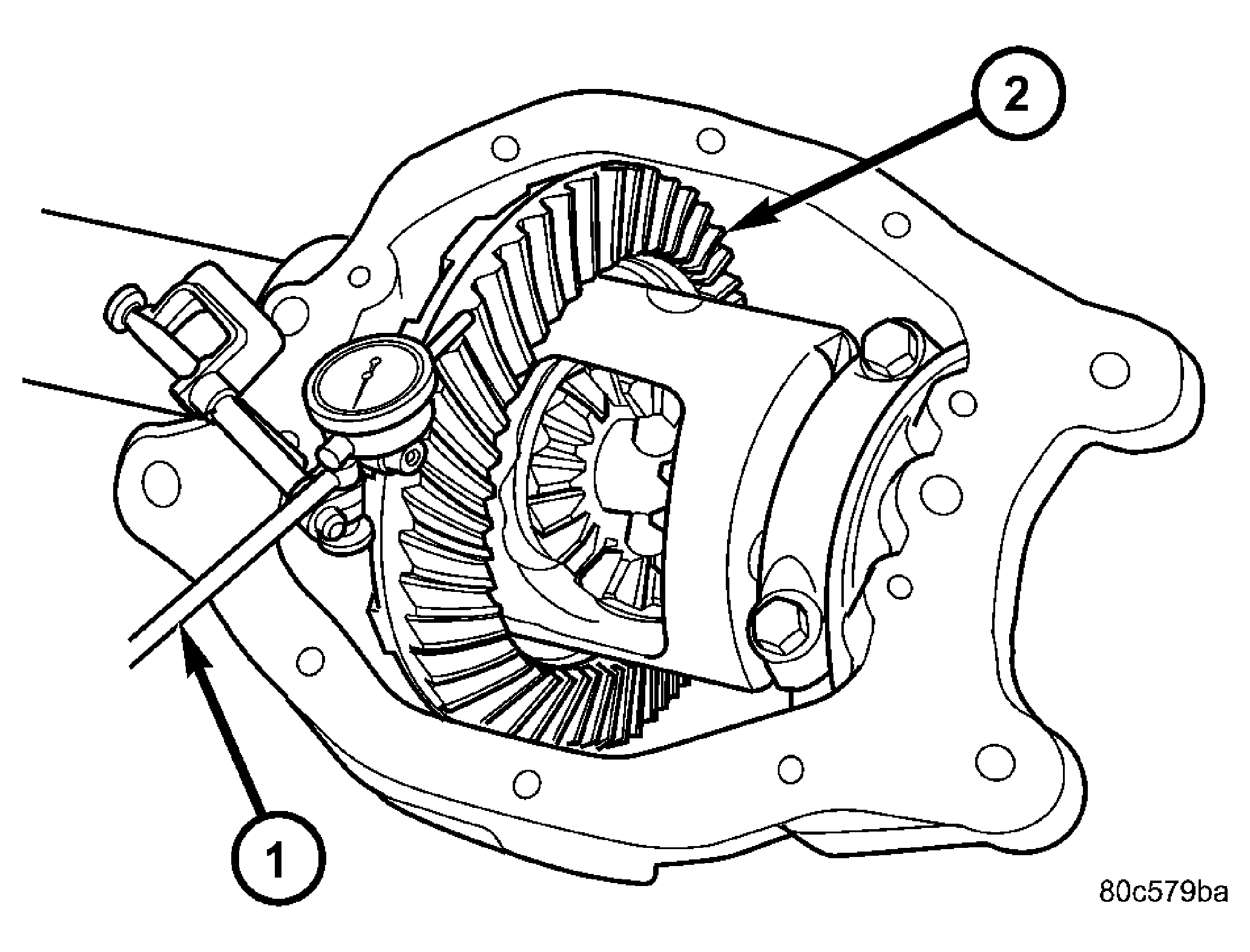

Fig 1: Ring Gear Backlash

Courtesy of CHRYSLER LLC

1. Rotate the differential case several times to seat the side bearings.
2. Position the indicator plunger (1) against a ring gear tooth (2).
3. Push and hold ring gear upward while not allowing the pinion gear to rotate.
4. Zero dial indicator face to pointer.
5. Push and hold ring gear downward while not allowing the pinion gear to rotate. Dial indicator reading should be between 0.12 mm (0.005 in.) and 0.20 mm (0.008 in.). If backlash is not within specifications transfer the necessary amount of shim thickness from one side of the housing to the other.
6. Verify differential case and ring gear runout by measuring ring to pinion gear backlash at eight locations around the ring gear. Readings should not vary more than 0.05 mm (0.002 in.). If readings vary more than specified, the ring gear or the differential case is defective.

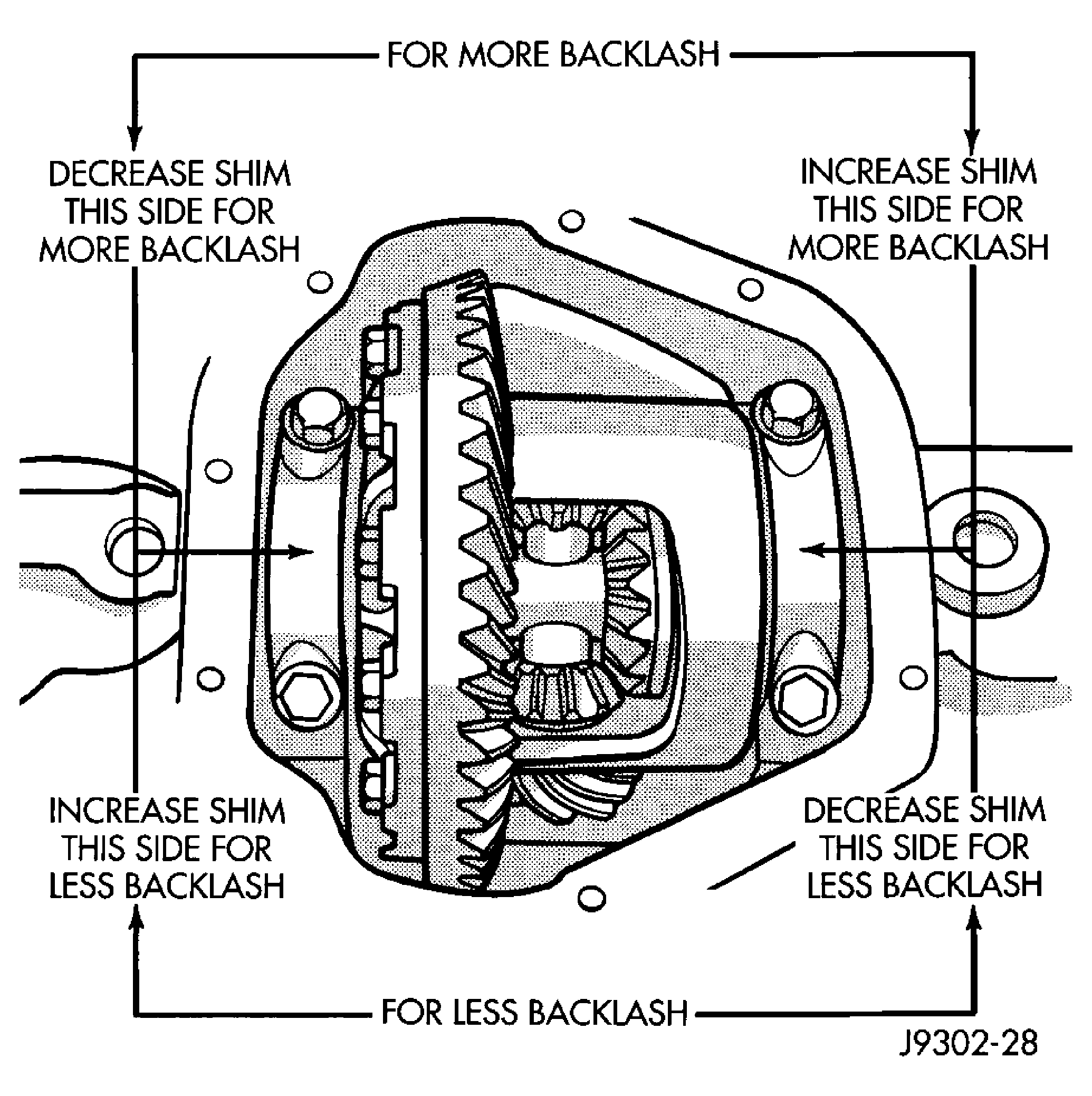

Fig 2: Backlash Shims

Courtesy of CHRYSLER LLC

After the proper backlash is achieved, perform GEAR CONTACT PATTERN  analysis procedure.
