Brake Pedal
| 1 - MASTER CYLINDER ASSEMBLY |
| 2 - BRAKE BOOSTER |
| 3 - CLIP |
| 4 - BRAKE PEDAL |
| 5 - BOOSTER ROD |
- Install the pedal (4) into the vehicle.
- Install the nuts securing the pedal to the column bracket.
- Tighten the nuts to 22.6 N.m (200 in. lbs.).
- Lubricate the brake pedal pin and bushings with Mopar multi-mileage grease.

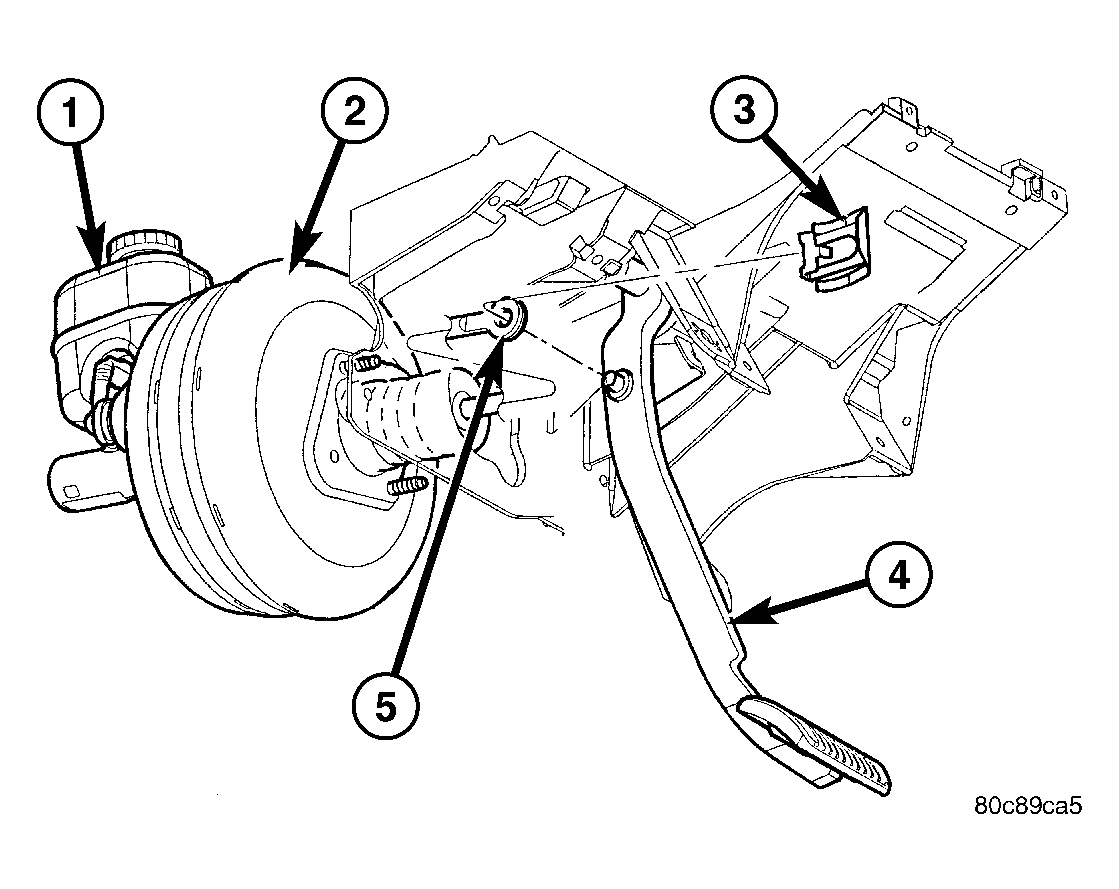

- Install the booster push rod (5) on the pedal pin and install a new retainer clip. See Figure.
- Install the brake lamp switch. Refer to INSTALLATION .
- Install the knee blocker. Refer to INSTALLATION .
