Body - Interior & Exterior: Sunroof: Glass: Adjustments: Glass

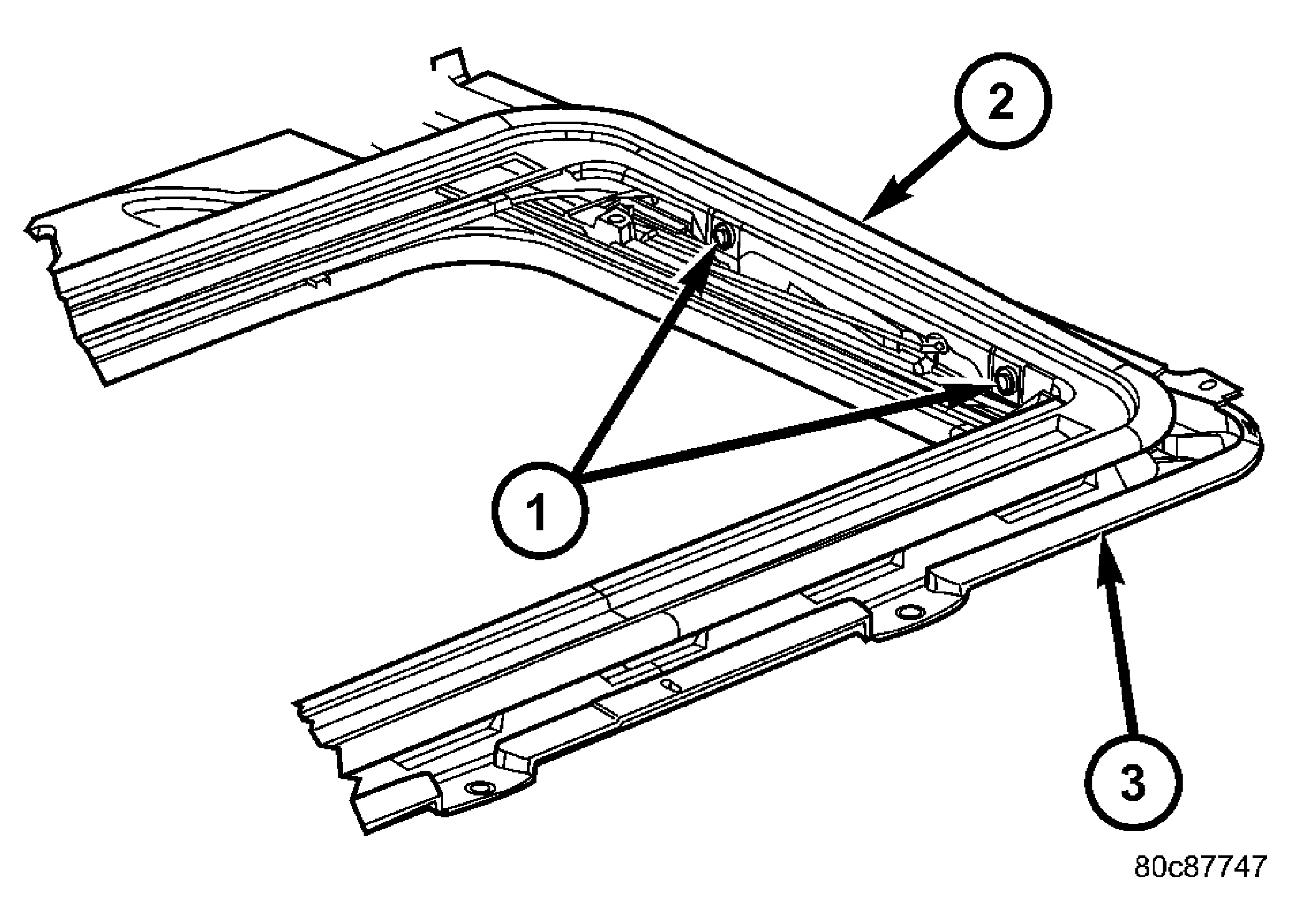

Fig 1: Removing/Installing Sunroof Glass Panel

Courtesy of CHRYSLER LLC

1 - SCREWS

2 - GLASS PANEL

3 - MODULE ASSEMBLY

1. Move the sunshade rearward to the open position.
2. Move the sunroof glass panel to the fully closed position.
3. Adjust the glass one corner at a time.
   • Loosen four glass screws (1).
   • Lift glass assembly and align the top of the glass panel to the top of the roof panel.
   • Tighten screw to 3.5 N.m (31 in. lbs.).
   • Repeat steps a. and b. for each corner of the glass panel.
   • When properly adjusted, the front of the glass panel is 1.75 mm (0.07 in.) to 2.75 mm (0.11 in.) lower than the roof surface and the rear edge of the glass panel is 1.75 mm (0.07 in.) to .75 mm (0.03 in.) lower than the roof surface.

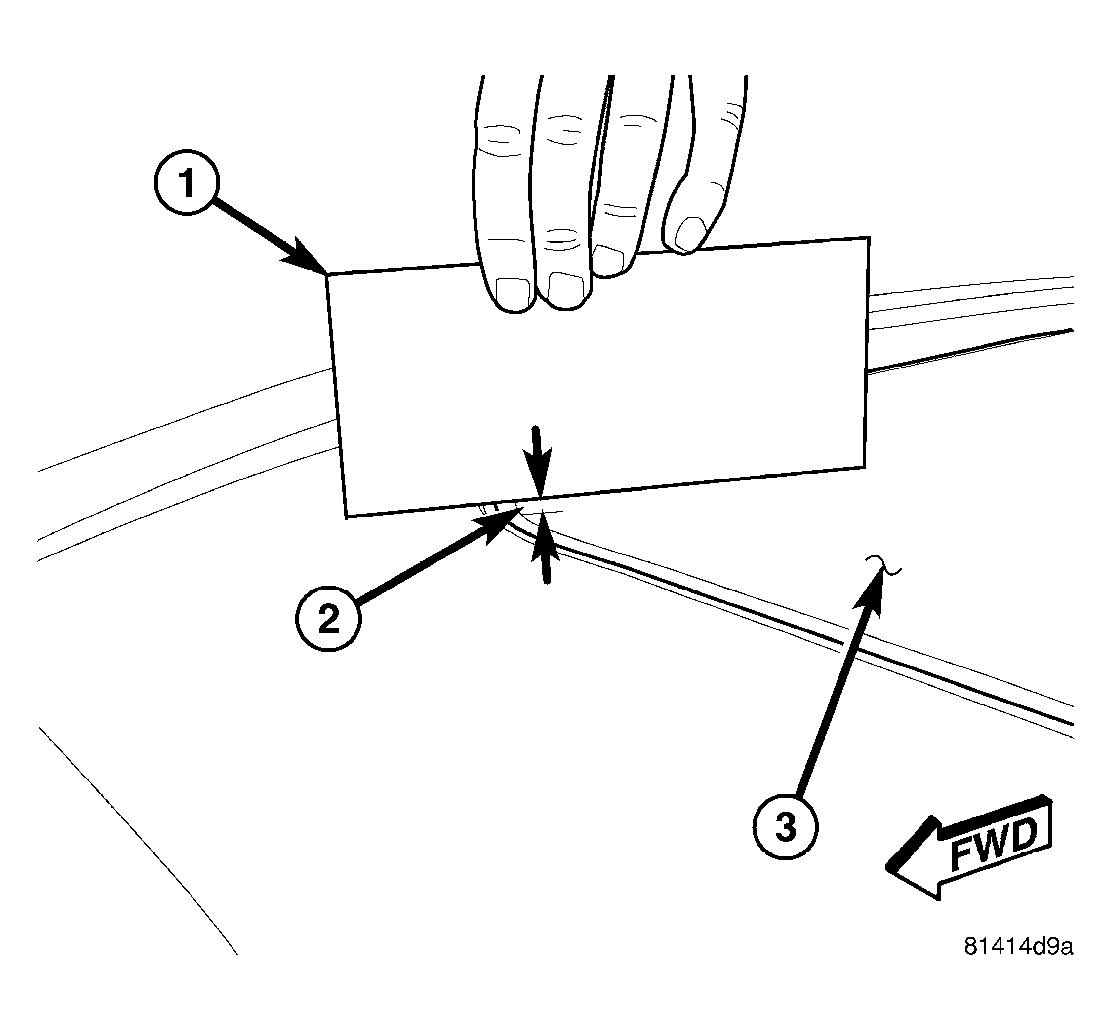

   Fig 2: Checking Sunroof Front Height

   Courtesy of CHRYSLER LLC
   NOTE: When properly adjusted, the front of the glass panel (3) is 1.75 mm (0.07 in.) to 2.75 mm (0.11 in.) lower than the roof surface (2).

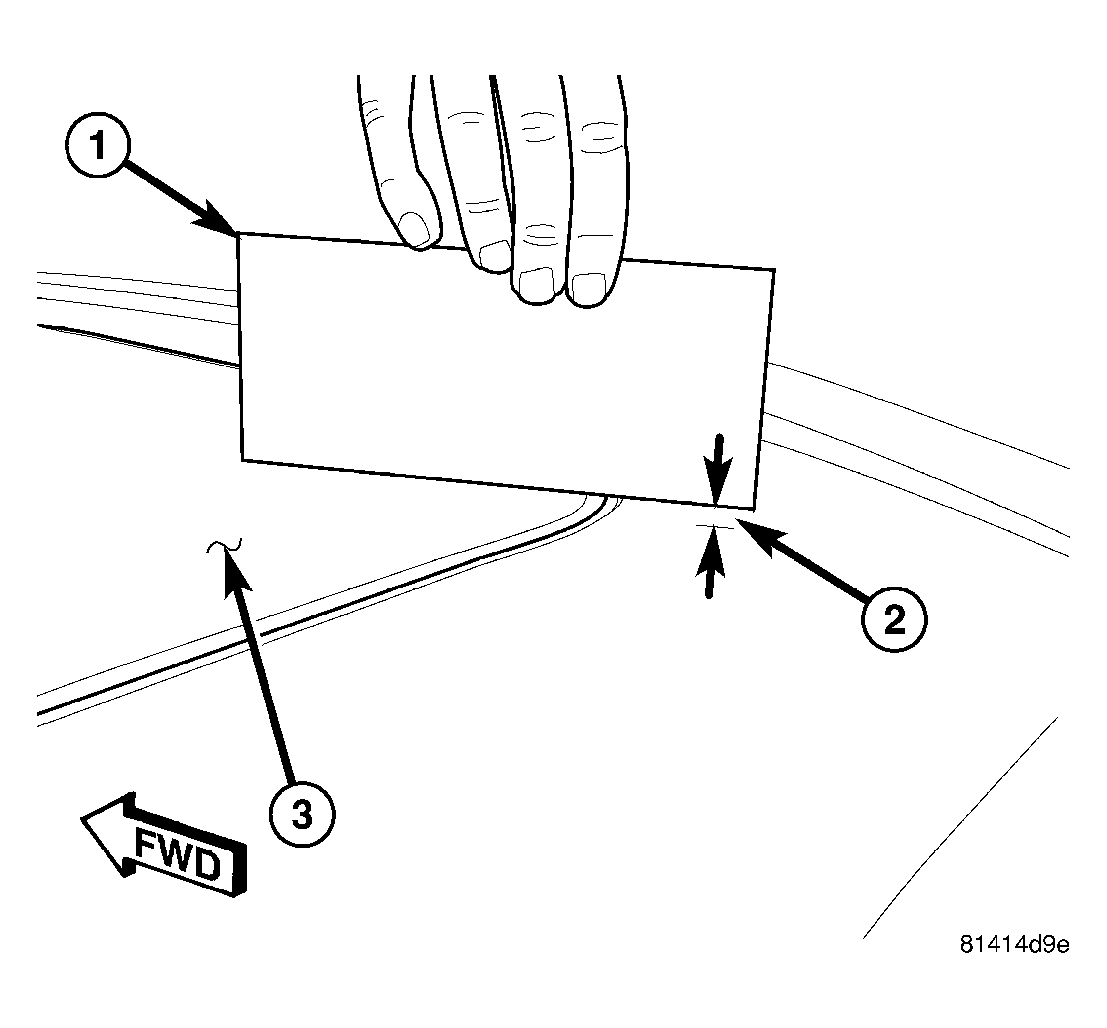

   Fig 3: Checking Sunroof Rear Height

   Courtesy of CHRYSLER LLC
   NOTE: When properly adjusted, the rear edge of the glass panel (3) is 1.75 mm (0.07 in.) to .75 mm (0.03 in.) lower than the roof surface (2).
   NOTE: Glass assembly seal is 2.5 mm (0.1 in) higher than the glass panel. Measure at 300 mm (11.8 in) outboard of the centerline of the vehicle.
4. Verify sunroof operation and alignment. Check fit and re-adjust as necessary.
