Cowl Grille

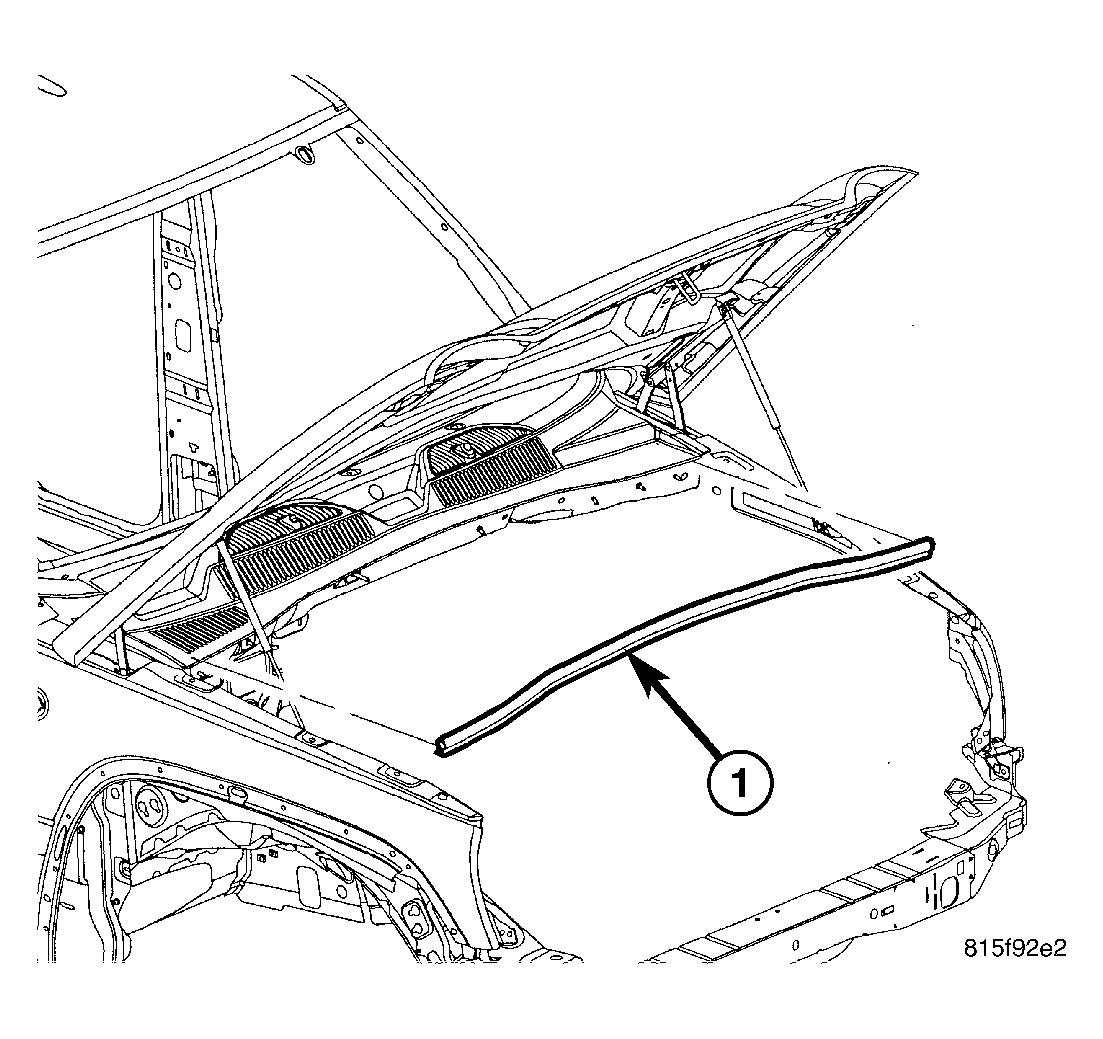

Fig 1: Hood Seal
GC0046699Courtesy of CHRYSLER LLC
  1. Remove the hood seal (1).

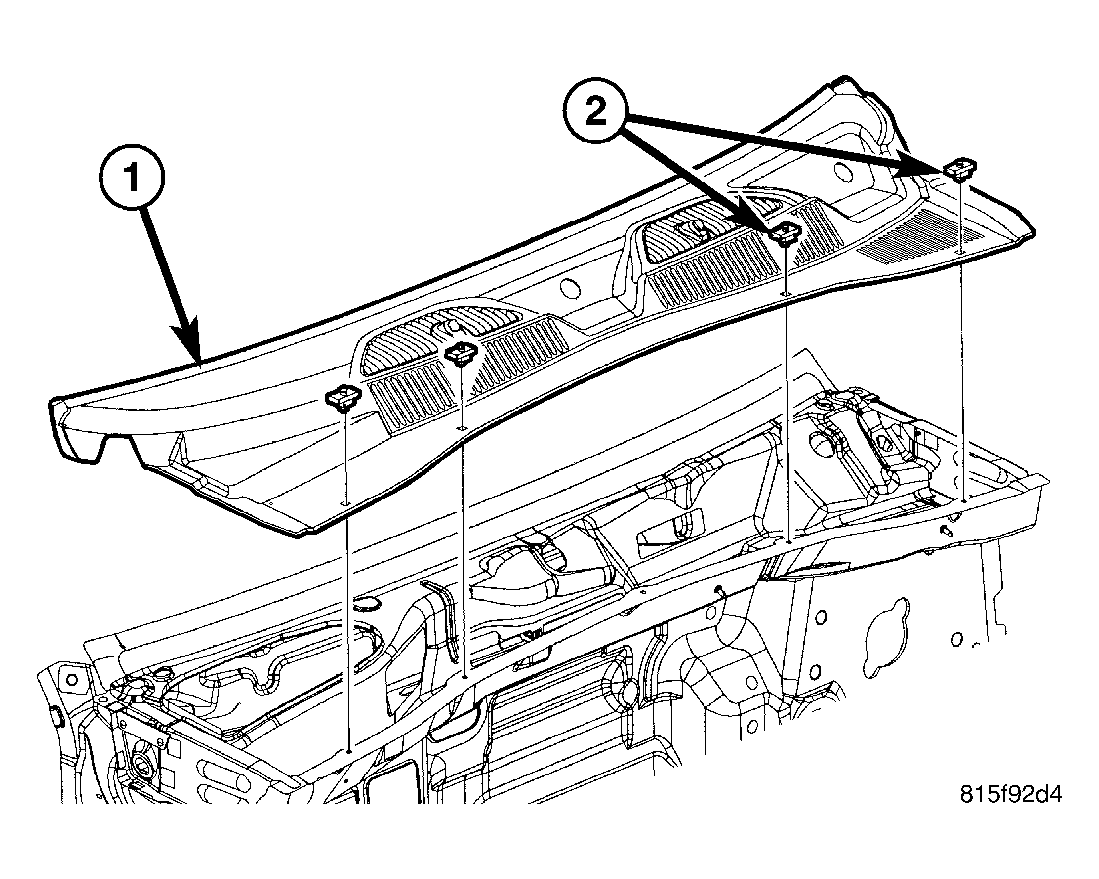

    Fig 2: Cowl Grille
    GC0046698Courtesy of CHRYSLER LLC
  2. Remove the wiper arms. .REMOVAL .
  3. Remove the four plastic retainers (2) and remove the cowl grille (1).
