Trim Lace

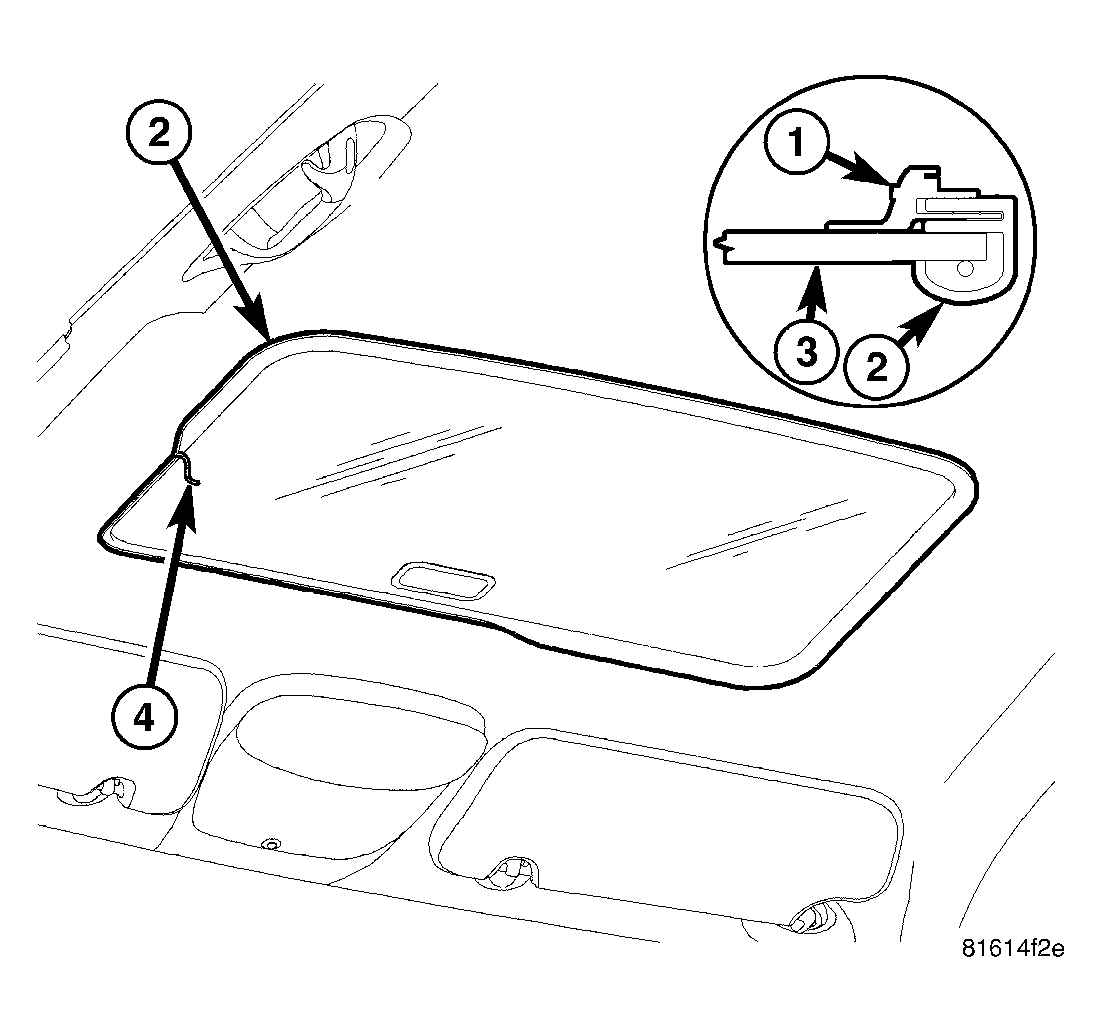

Fig 1: Sunroof Trim Lace
GC0046711Courtesy of CHRYSLER LLC
  1. Remove lace by starting at the joint center of the opening on driver's side.
  2. Pull one end of the lace away from the headliner until the entire lace is removed.
