Vanity Lamp Bulb
NOTE:
Vehicles equipped with optional vanity lamps have a mirror with a lamp that is integral to each sun visor. Each lamp is independently controlled by an integral switch that is automatically actuated by the mirror cover. The bulb types and service procedures are identical for both of these lamps.
- Disconnect and isolate the battery negative cable.

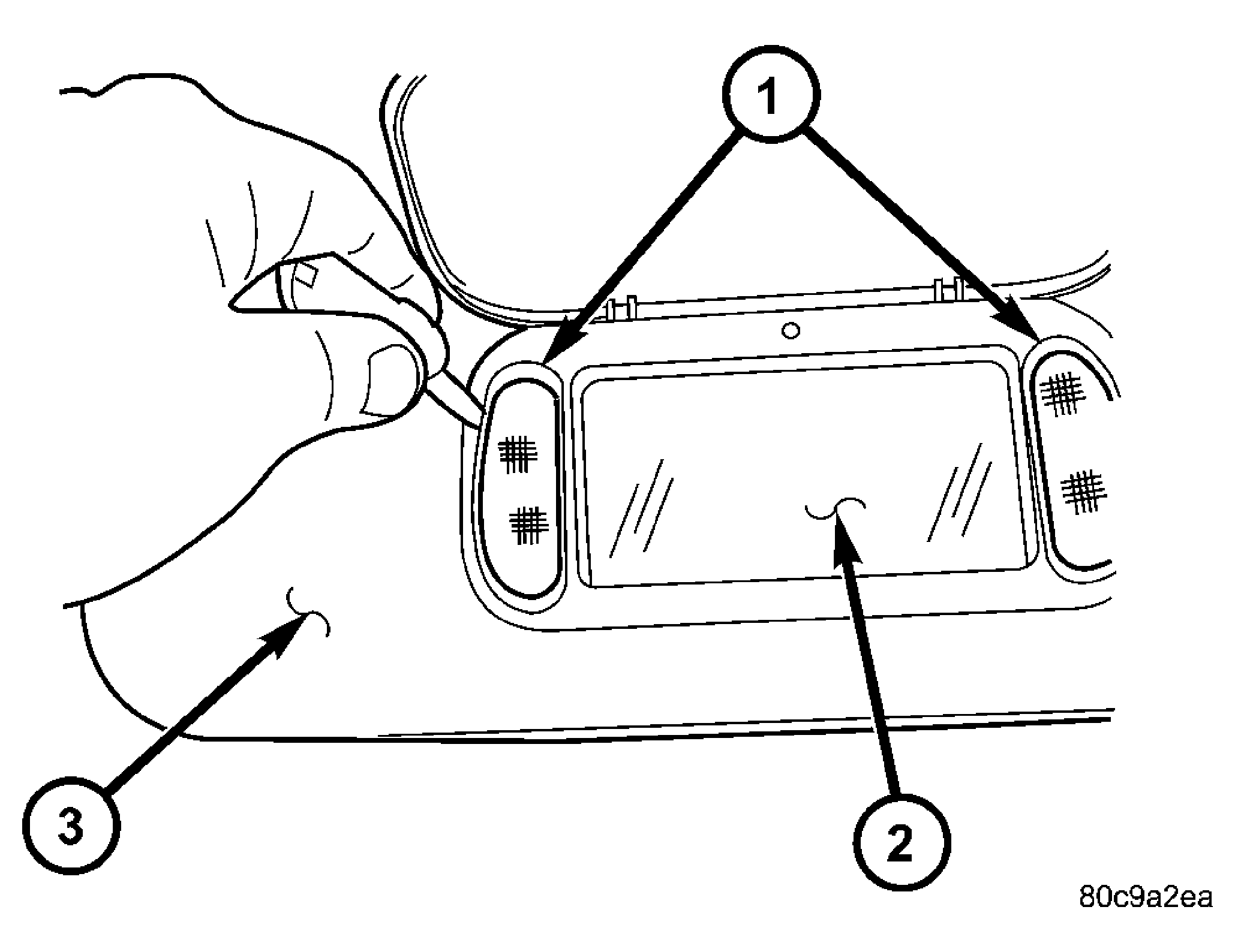

- Insert a small thin-bladed tool on either side of the mirror (2) near the top or the bottom between the vanity lamp lens (1) and the sun visor (3) vanity lamp housing.
- Carefully pry the lens outward until it unsnaps from the lamp housing.

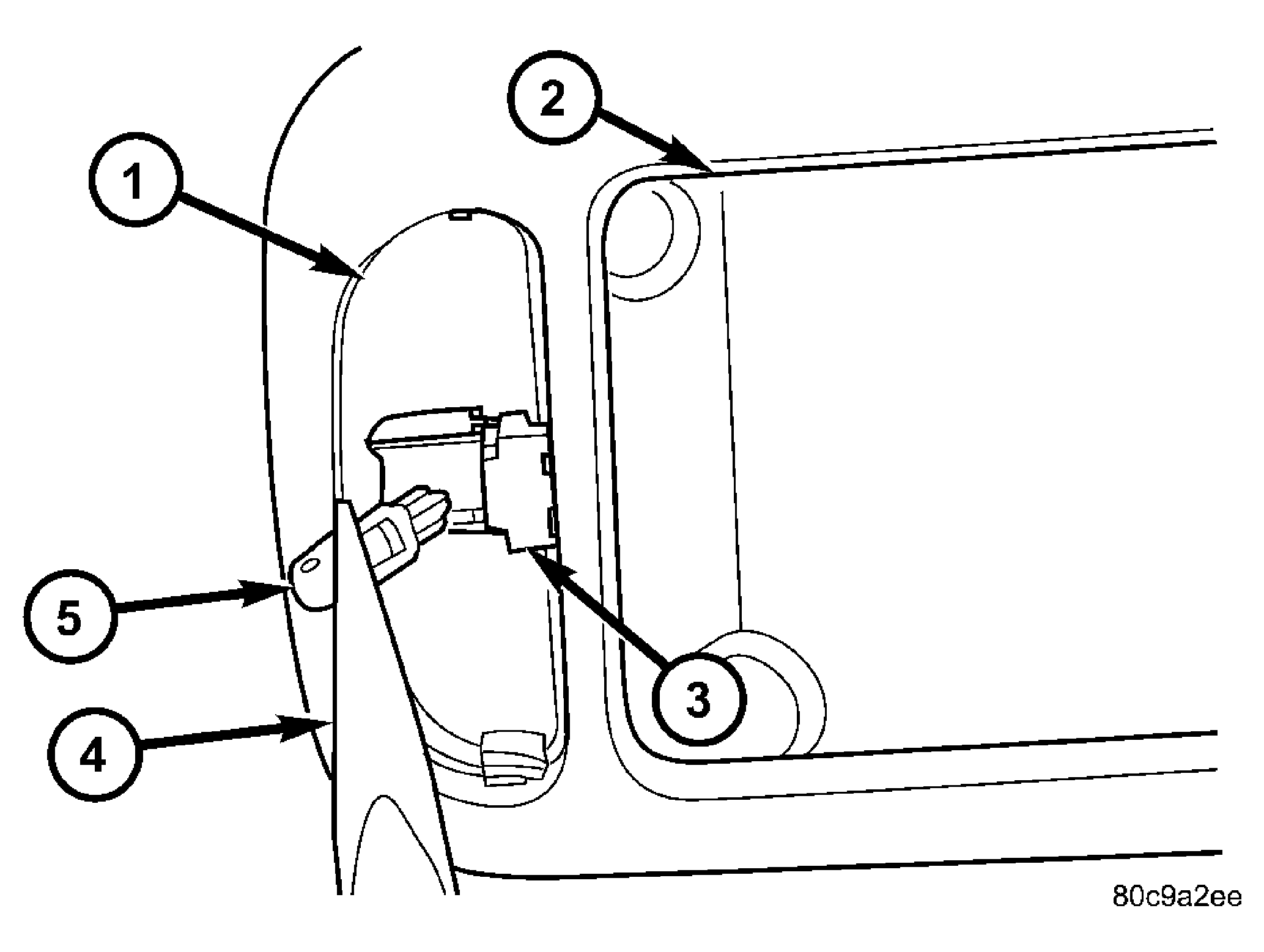

- Using small needle-nose pliers (4), carefully grasp the bulb (5) and pull the base out of the lamp socket (3).
