Front Fog Relay Circuit Low: Notes

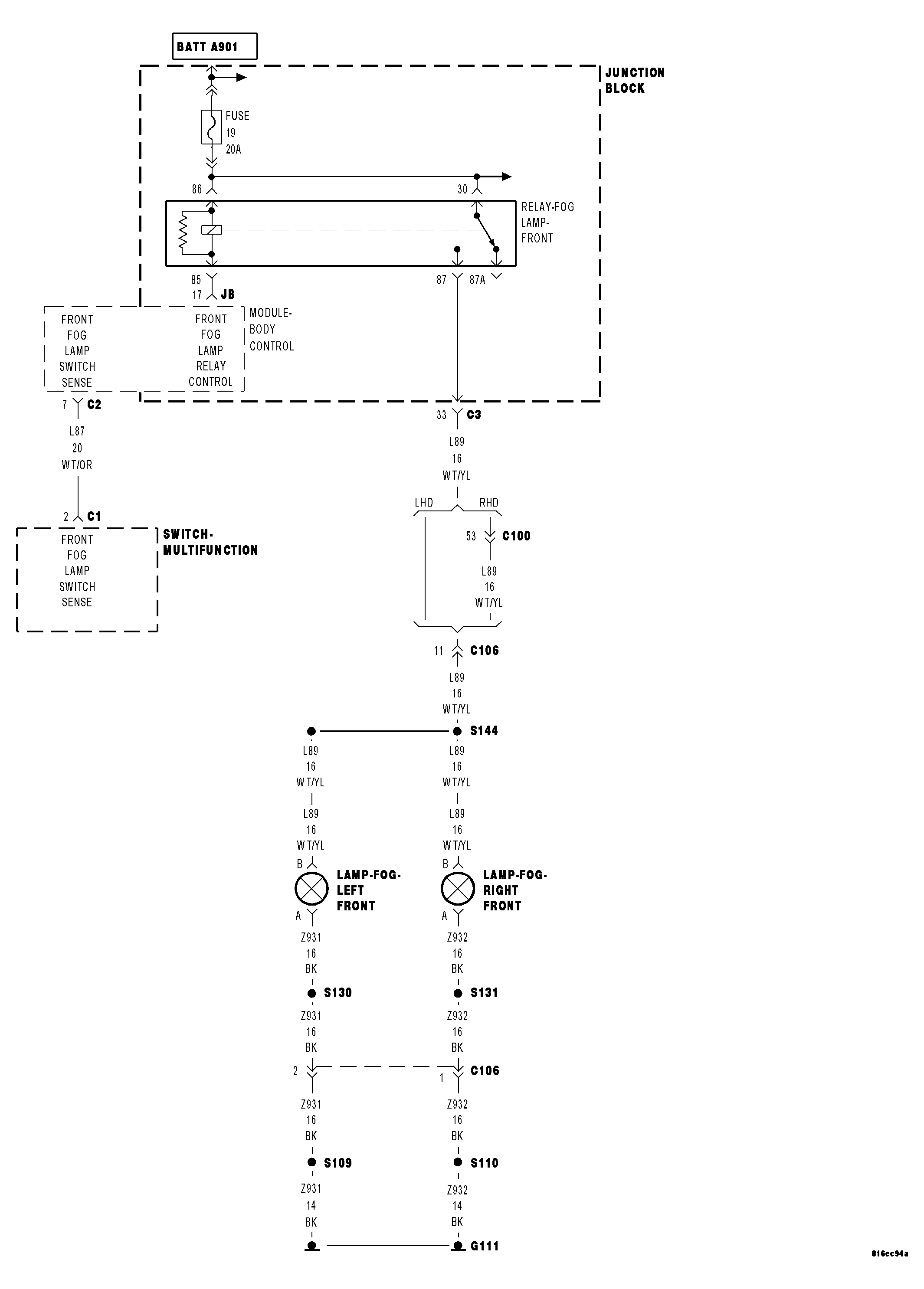

Fig 1: Front Fog Lamp Relay Circuit Diagram

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   With the ignition on.

2. Set Condition:

   BCM detects a low (ground) on the Front Fog Relay even though it is not attempting to turn on the Front Fog Lamps for more than 5 seconds.
