Fuel Sensor Faulted Low (BCM): Notes

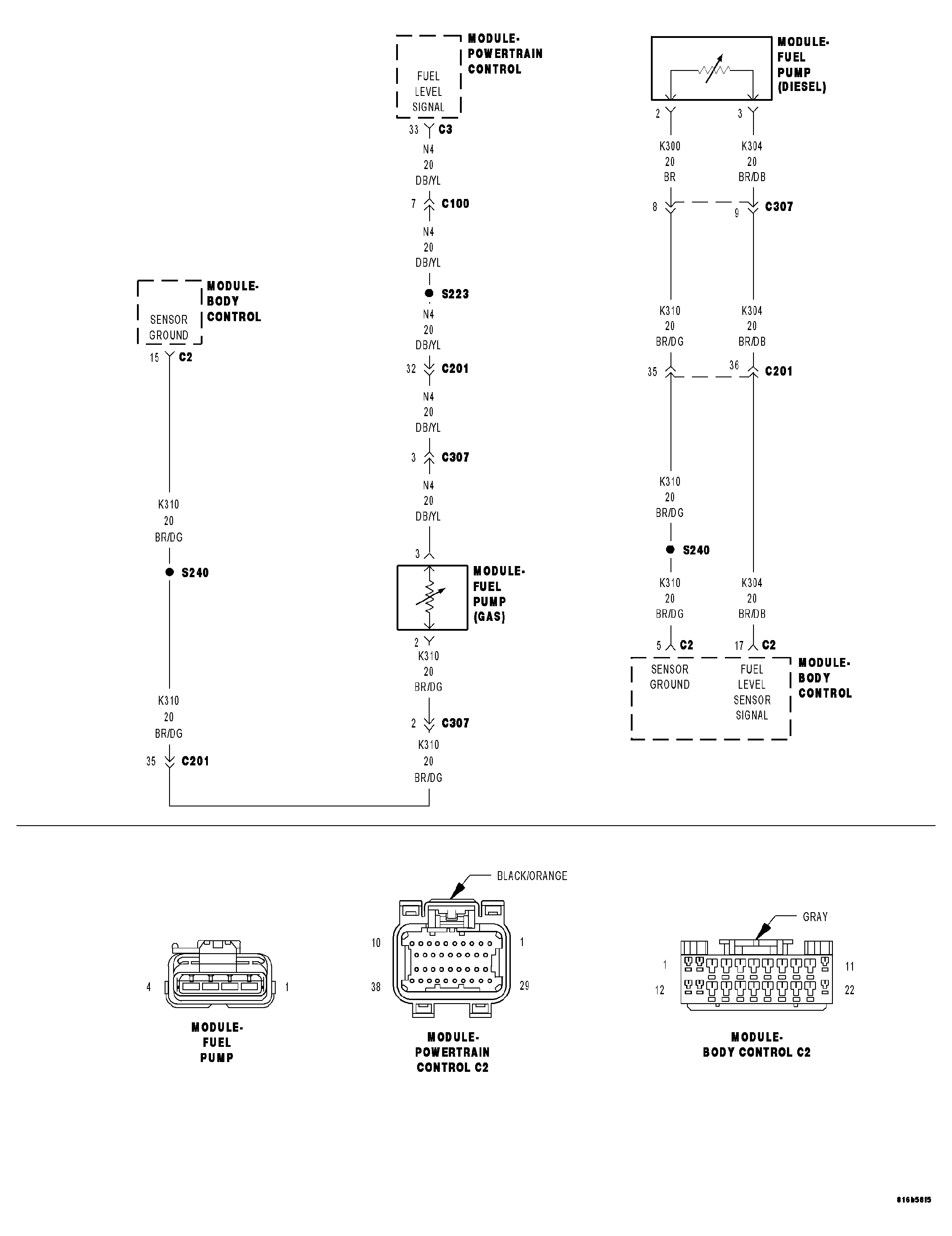

Fig 1: Fuel Level Signal Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   Ignition on and battery voltage above 10.4 volts.

2. Set Condition:

   The fuel level sensor signal voltage goes below 0.0196 of a volt for more than 90 seconds.
