Diagnostic Test

  1. 1) INTERMITTENT CONDITION
    NOTE: Ensure that the Brake Fluid Level Switch harness connector is properly connected.

    With the scan tool, erase DTCs.

    Cycle the ignition and wait approximately 15 seconds.

    With the scan tool, read DTCs.

    Does the scan tool display: BRAKE FLUID SWITCH CIRCUIT OPEN?

    Yes

    1. Go To step  2).

    No

    1. The condition is not present at this time. Monitor scan tool parameters while wiggling the related wire harness. Refer to any Technical Service Bulletins (TSB) that may apply. Visually inspect the related wiring harness and connectors.
    2. Perform BODY VERIFICATION TEST .
  2. 2) BRAKE FLUID LEVEL SWITCH

    Turn the ignition off.

    Disconnect the Brake Fluid Level Switch harness connector.

    Check connectors - Clean/repair as necessary.

    Measure the internal resistance of the Brake Fluid Level (Red Brake Warning Indicator Driver) Switch.

    Is the resistance above 1.1k (1,100) ohms?

    Yes

    1. Replace the Brake Fluid Level (Red Brake Warning Indicator Driver) Switch in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST .

    No

    1. Go To step  3).
  3. 3) (Z932) BRAKE FLUID LEVEL SWITCH GROUND CIRCUIT
    Fig 1: Measuring Resistance Between Ground And Brake Fluid Level Switch Ground Circuit
    GC0046841Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Brake Fluid Level Switch harness connector.

    Check connectors - Clean/repair as necessary.

    Measure the resistance between ground and the (Z932) Brake Fluid Level Switch Ground circuit.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (Z932) Brake Fluid Level (Red Brake Warning Indicator Driver) Switch Ground circuit for an open.
    2. Perform BODY VERIFICATION TEST .

    No

    1. Go To step  4).
  4. 4) (B20) RED BRAKE WARNING INDICATOR DRIVER CIRCUIT OPEN

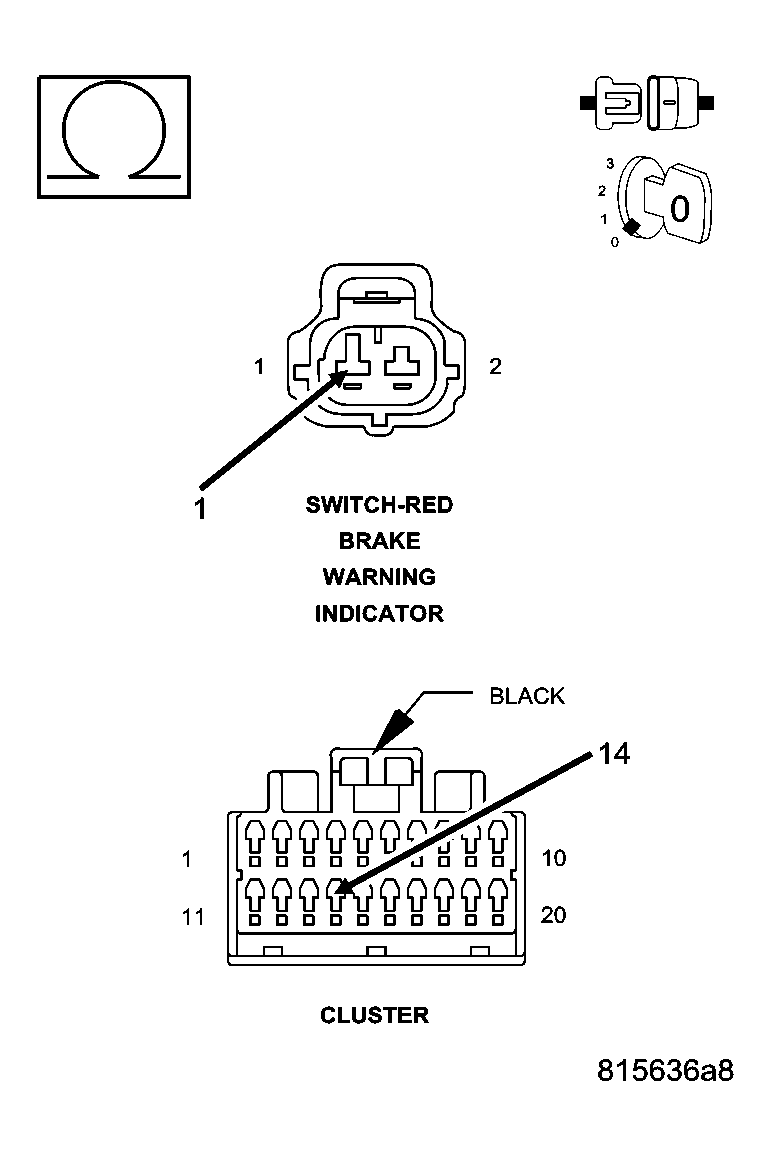

    Fig 2: Measuring Resistance Of Red Brake Warning Indicator Driver Circuit
    GC0046842Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Brake Fluid Level Switch harness connector.

    Disconnect the Instrument Cluster harness connector.

    Measure the resistance of the (B20) Red Brake Warning Indicator Driver circuit.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (B20) Red Brake Warning Indicator Driver circuit for an open.
    2. Perform BODY VERIFICATION TEST .

    No

    1. Replace and configure the Instrument Cluster in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST .
