Antenna Cable - Satellite Radio

Fig 1: Antenna Cable & Receiver
GC0046800Courtesy of CHRYSLER LLC
  1. Connect antenna cable to satellite receiver.

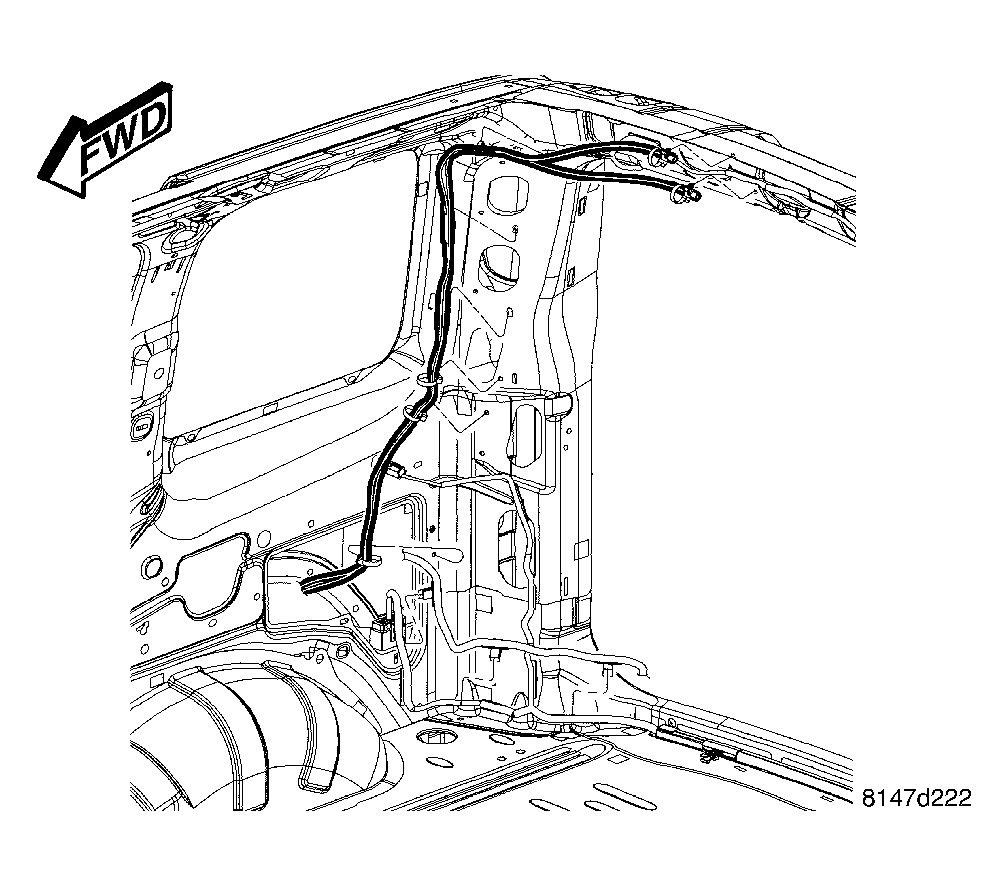

    Fig 2: Antenna Cable At C-Pillar & Roof Panel
    GC0046801Courtesy of CHRYSLER LLC
  2. Install antenna cable retainers to C-pillar and roof panel.
  3. Connect antenna cable to satellite antenna.
  4. Install headliner. Refer to INSTALLATION .
  5. Connect battery negative cable.
