Vacuum Reservoir

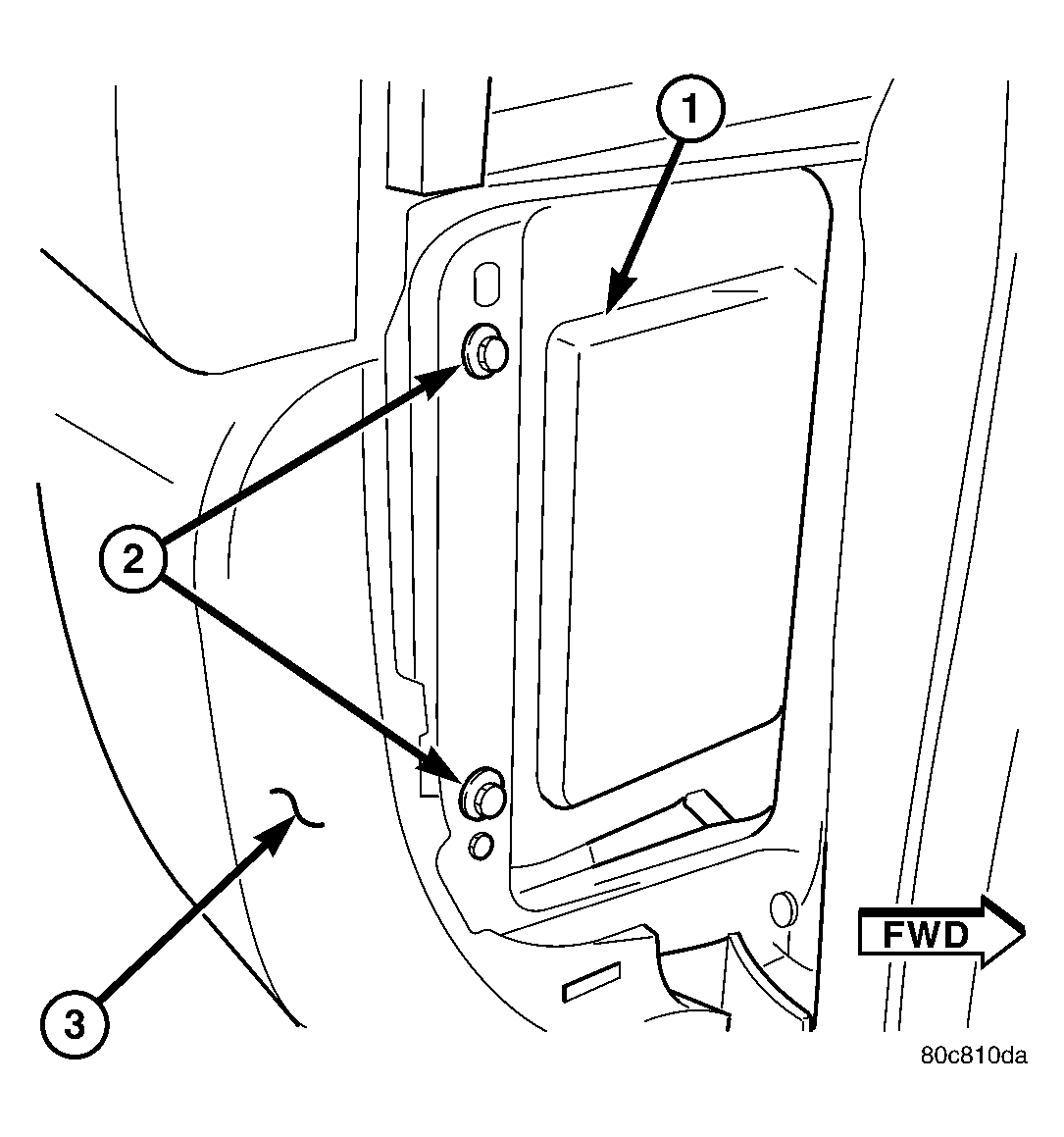

Fig 1: Vacuum Reservoir Location
GC0026628Courtesy of CHRYSLER LLC
1 - VACUUM RESERVOIR
2 - HORIZONTAL MOUNTING SCREWS
3 - OUTBOARD END OF I.P.
  1. Position reservoir (1) to instrument panel.
  2. Install two horizontal mounting screws (2) but do not tighten.

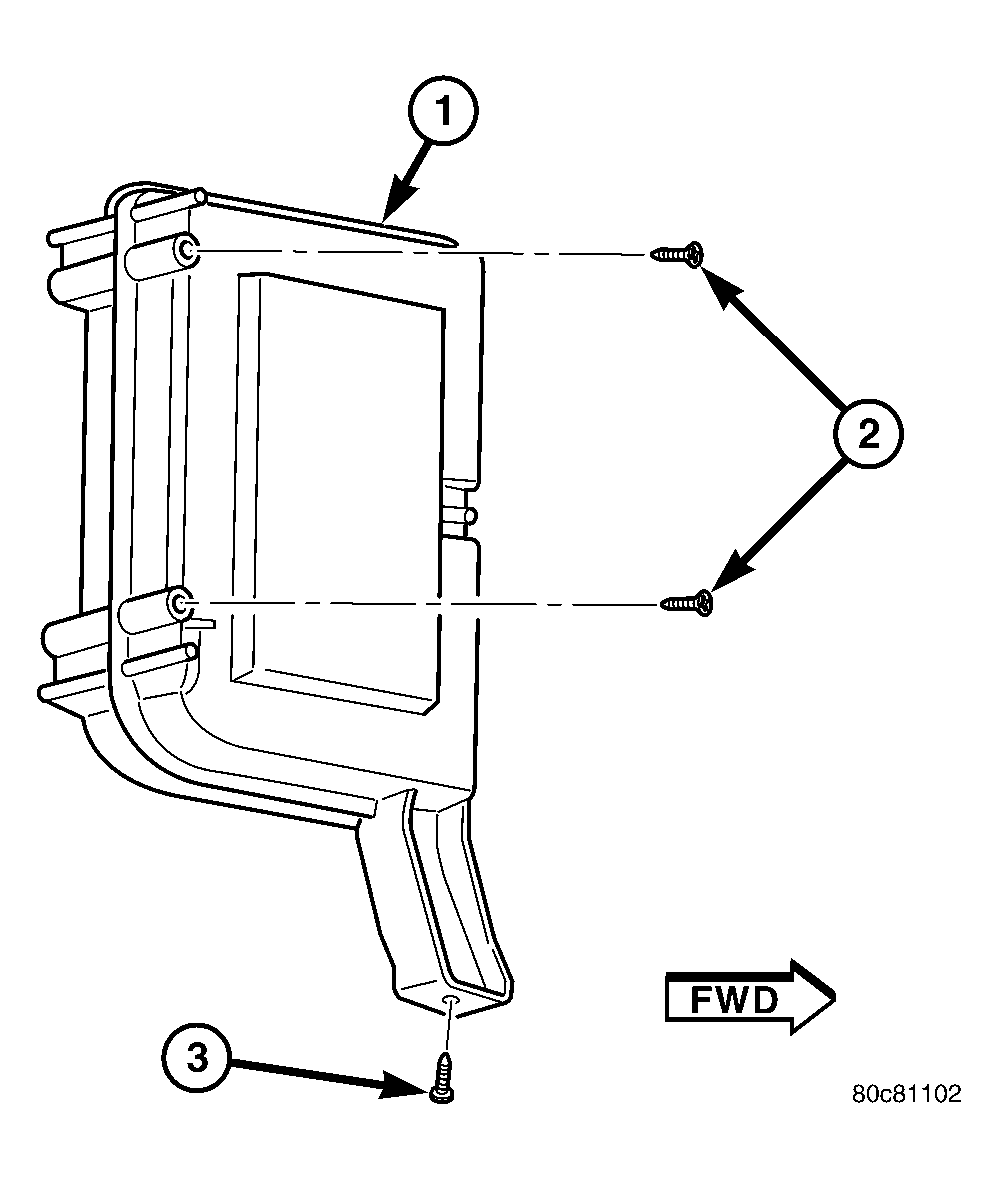

    Fig 2: View Of Vacuum Reservoir & Screws
    GC0026629Courtesy of CHRYSLER LLC
    1 - VACUUM RESERVOIR
    2 - HORIZONTAL MOUNTING SCREWS (2)
    3 - VERTICAL MOUNTING SCREW (1)
  3. Install one vertically mounted screw (3). Tighten all three mounting screws to 3 N.m (20 in. lbs.).
  4. Connect vacuum line to reservoir fitting.
  5. Install glovebox assembly.
  6. Install fuse box access cover panel.
