Seat Cushion - Rear

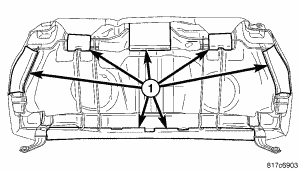

Fig 1: CUSHION ASSEMBLY
GC0055756Courtesy of CHRYSLER LLC
  1. Remove the seat cushion. See REMOVAL .
  2. Separate the J-straps (1) from the seat frame.
    Fig 2: Cushion Cover - Hog Rings
    GC0025851Courtesy of CHRYSLER LLC
    1 - SEAT FOAM CUSHION
    2 - HOG RINGS
    3 - SEAT CUSHION COVER
  3. Remove the hog rings (2) connecting the seat cover (3) to the seat cushion foam (1) and separate from the seat cushion frame.
