Seat Cushion - Front

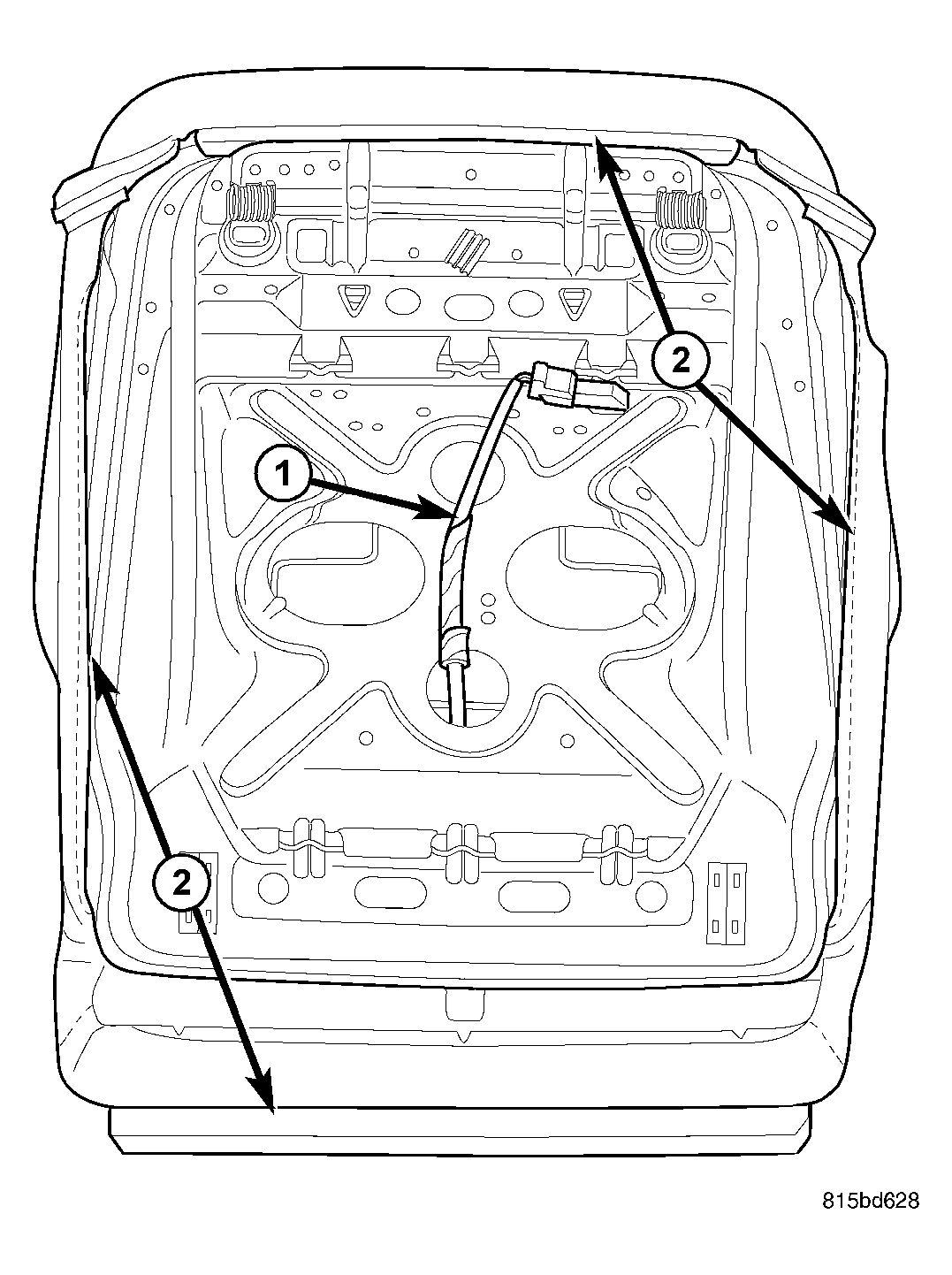

Fig 1: COVER R/I
GC0044995Courtesy of CHRYSLER LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. See WARNING .
  2. Remove the seat cushion, see REMOVAL .
  3. Release the seat cushion cover J-straps (2) from the seat pan and remove the cushion from the pan.

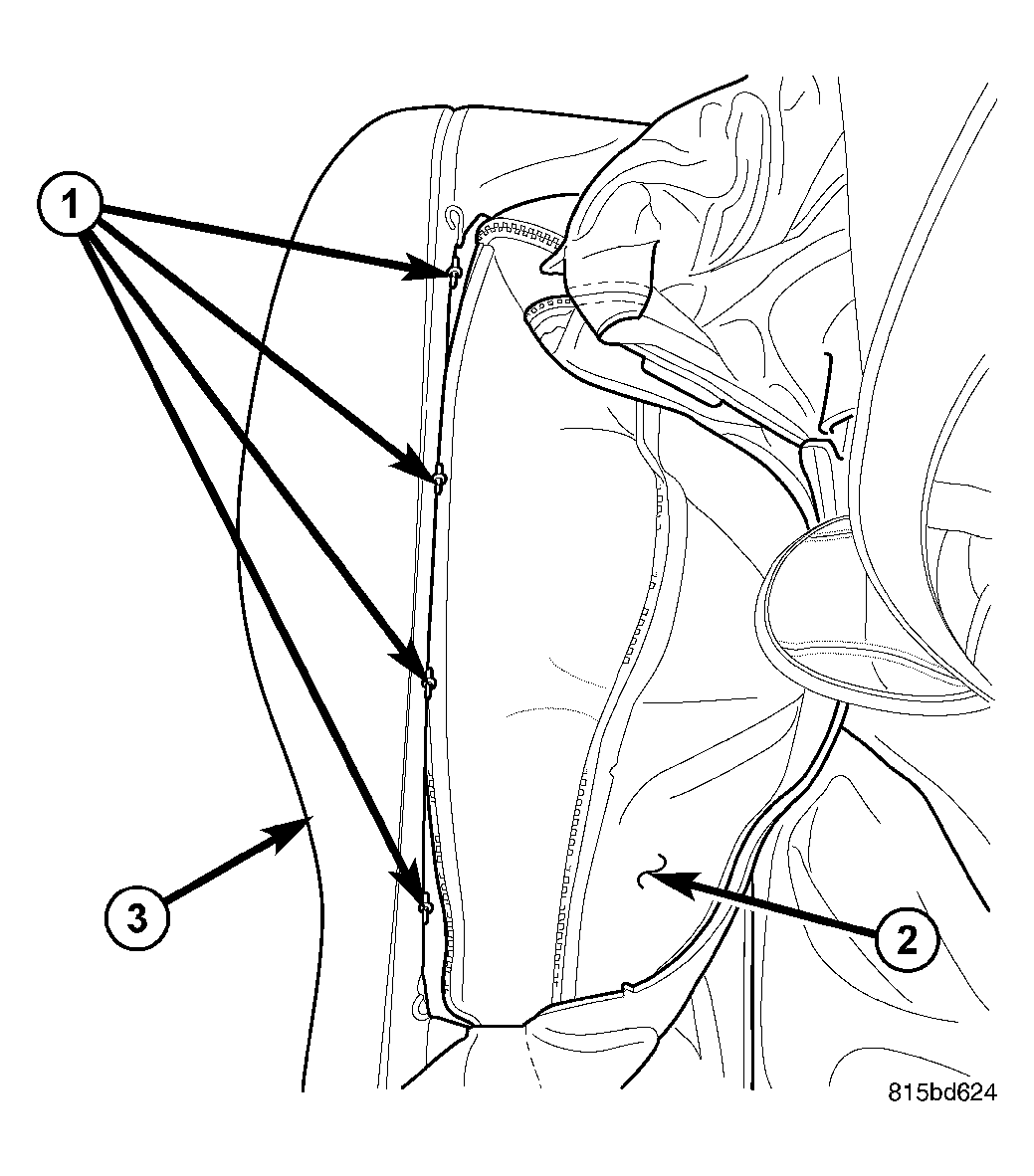

    Fig 2: SEAT CUSHION HOG RINGS
    GC0044994Courtesy of CHRYSLER LLC
  4. Remove the hog rings (1) and separate the seat cushion cover (2) from the seat cushion foam (3).
