Seat Back - Rear

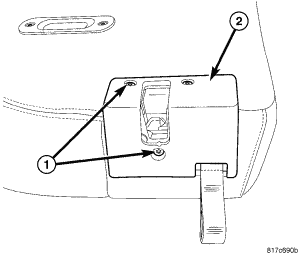

Fig 1: LATCH BEZEL

Courtesy of CHRYSLER LLC

Remove the screws (1) and remove the latch bezel (2).

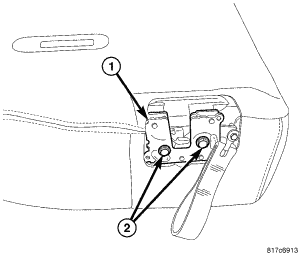

Fig 2: LATCH
Courtesy of CHRYSLER LLC
Remove the bolts (2) and remove the latch (1).

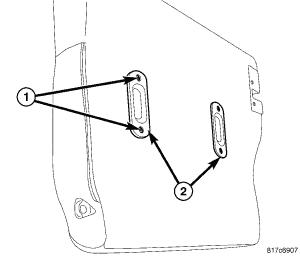

Fig 3: CHILD TETHER BEZELS
Courtesy of CHRYSLER LLC
Remove the screws (1) and remove the tether trim bezels (2).

Fig 4: Removing/Installing Head Rest
Courtesy of CHRYSLER LLC
Remove the headrest.

Fig 5: Zip Strip
Courtesy of CHRYSLER LLC
Separate the zip strips (1 and 2).

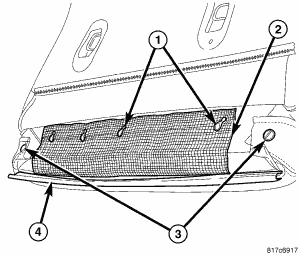

Fig 6: COVER
Courtesy of CHRYSLER LLC
Remove the push pin fasteners (3).
Separate the inner cover (2) from the hooks (1).

Fig 7: COVER ZIPPER
Courtesy of CHRYSLER LLC
Unzip the cover (1).

Fig 8: FOAM INSERT
Courtesy of CHRYSLER LLC

Remove the foam insert (2) from the seat back assembly (1).

Fig 9: Cushion Cover - Hog Rings

Courtesy of CHRYSLER LLC

1 - SEAT FOAM CUSHION

2 - HOG RINGS

3 - SEAT CUSHION COVER

Separate the seat cover (3) from the foam cushion (1) and cut off all hog rings (2) attaching the cover to the foam.

Fig 10: HEADREST SLEEVE REMOVAL
Courtesy of CHRYSLER LLC
Squeeze the locking tab (3) and remove the headrest sleeves (1).
Remove the seat back cover and cushion.
