Cluster Bezel

Fig 1: TOP COVER

Courtesy of CHRYSLER LLC

Remove the top cover (1), see REMOVAL .

Fig 2: STEERING COLUMN OPENING COVER
Courtesy of CHRYSLER LLC
Remove the steering column opening cover, see REMOVAL .

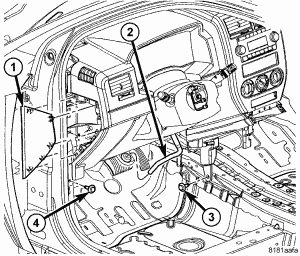

Fig 3: BEZEL LOWER FASTENERS
Courtesy of CHRYSLER LLC
Remove the two lower bezel screws (2) at the steering column opening.

Fig 4: LT SIDE END CAP & FASTENERS
Courtesy of CHRYSLER LLC
Using a trim stick C-4755 or equivalent, separate and remove the end cap (1).

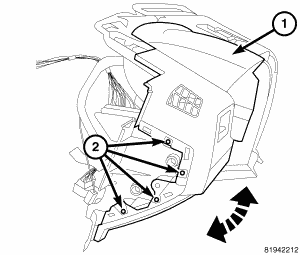

Fig 5: BEZEL SIDE FASTENERS
Courtesy of CHRYSLER LLC
Remove the four screws (2) behind the end cap and rotate the front of the bezel (1) up.

Fig 6: BEZEL UPPER TABS
Courtesy of CHRYSLER LLC
Separate the three rear tabs (2) and remove the bezel (1).
