Body - Interior & Exterior: Sunroof: Hose-Drain: Removal: Hose-Drain

Fig 1: 07 FRONT HOSE

Courtesy of CHRYSLER LLC

NOTE: Compass shown in illustration, Patriot similar.

1. Drop down the headliner as necessary to gain access to the drain hoses. See REMOVAL .
2. Disconnect the front hoses (2) from the sunroof assembly (1).
3. Release the support clips (3) and disconnect the lower grommet and remove the hose.

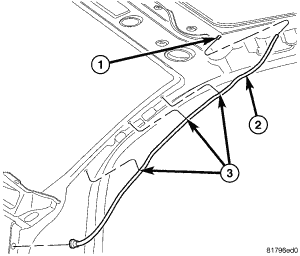

   Fig 2: 07 MK REAR HOSE 1

   Courtesy of CHRYSLER LLC
4. Disconnect the rear hoses (2) from the sunroof assembly (1) and release the support clips (3).
   Fig 3: 07 REAR HOSE 2

   Courtesy of CHRYSLER LLC

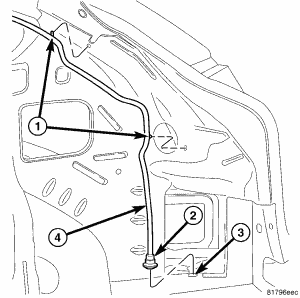

5. Separate the remaining support clips (1).
6. Disconnect the grommet (2) from the body (3) and remove the rear hoses as necessary.

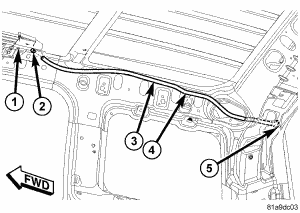

   Fig 4: MK74 RIGHT DRAIN HOSE

   Courtesy of CHRYSLER LLC
7. For the Patriot right rear drain hose, separate the support clips (4) and disconnect the hose ends from the sunroof (2) and the rear header (5).
