Balance Shaft

WARNING: This page is about a different variant/trim than selected.

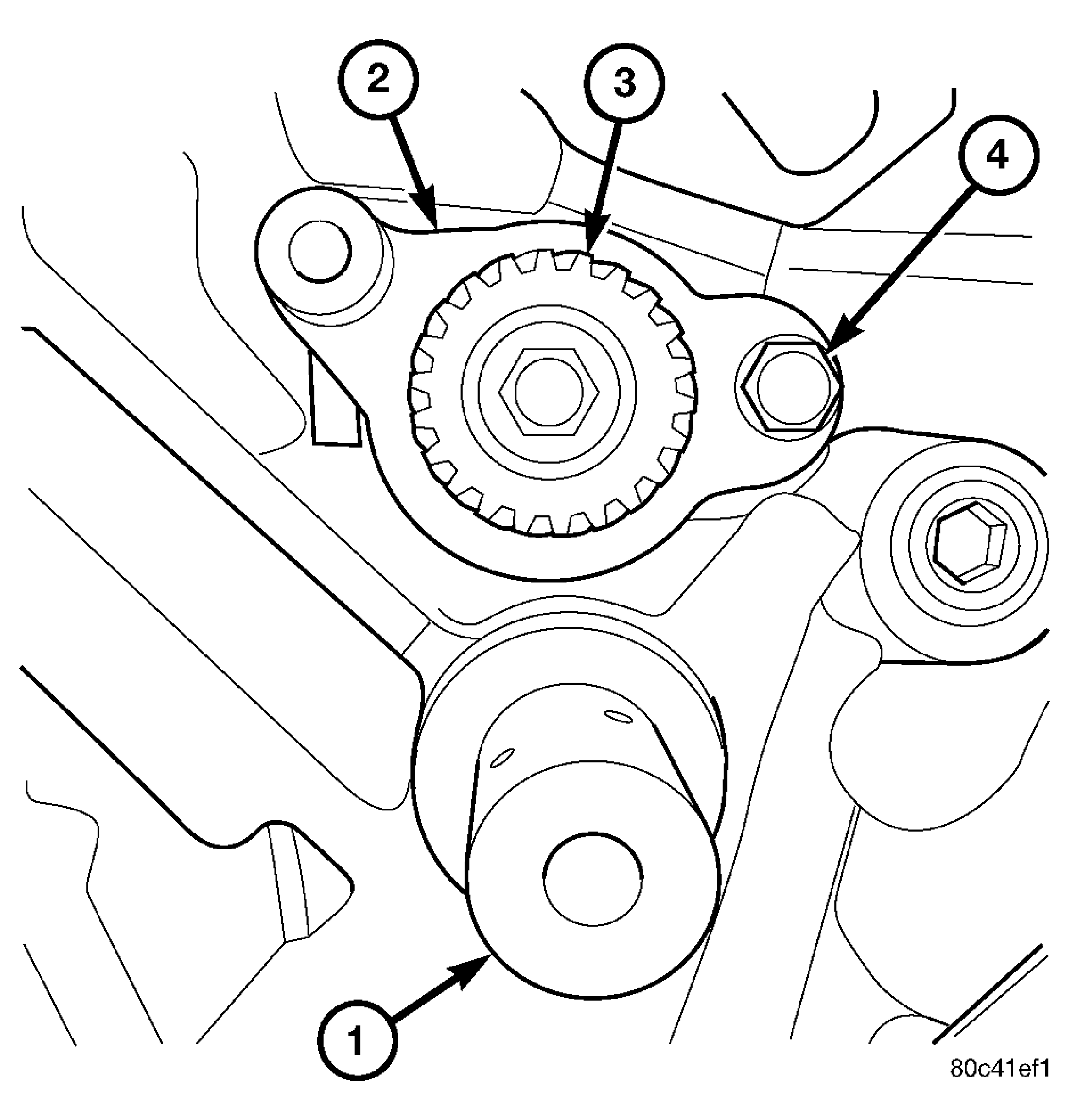

Fig 1: Counterbalance Shaft Retaining Bolt
GC0011850Courtesy of CHRYSLER LLC
1 - IDLER SHAFT
2 - BALANCE SHAFT THRUST PLATE
3 - BALANCE SHAFT DRIVE GEAR
4 - RETAINING BOLT
  1. Remove the primary and secondary timing chains. See REMOVAL .
    NOTE: The balance shaft and gear are serviced as an assembly. Do not attempt to remove the gear from the balance shaft.

    Remove the retaining bolt (4) from the balance shaft thrust plate (2).

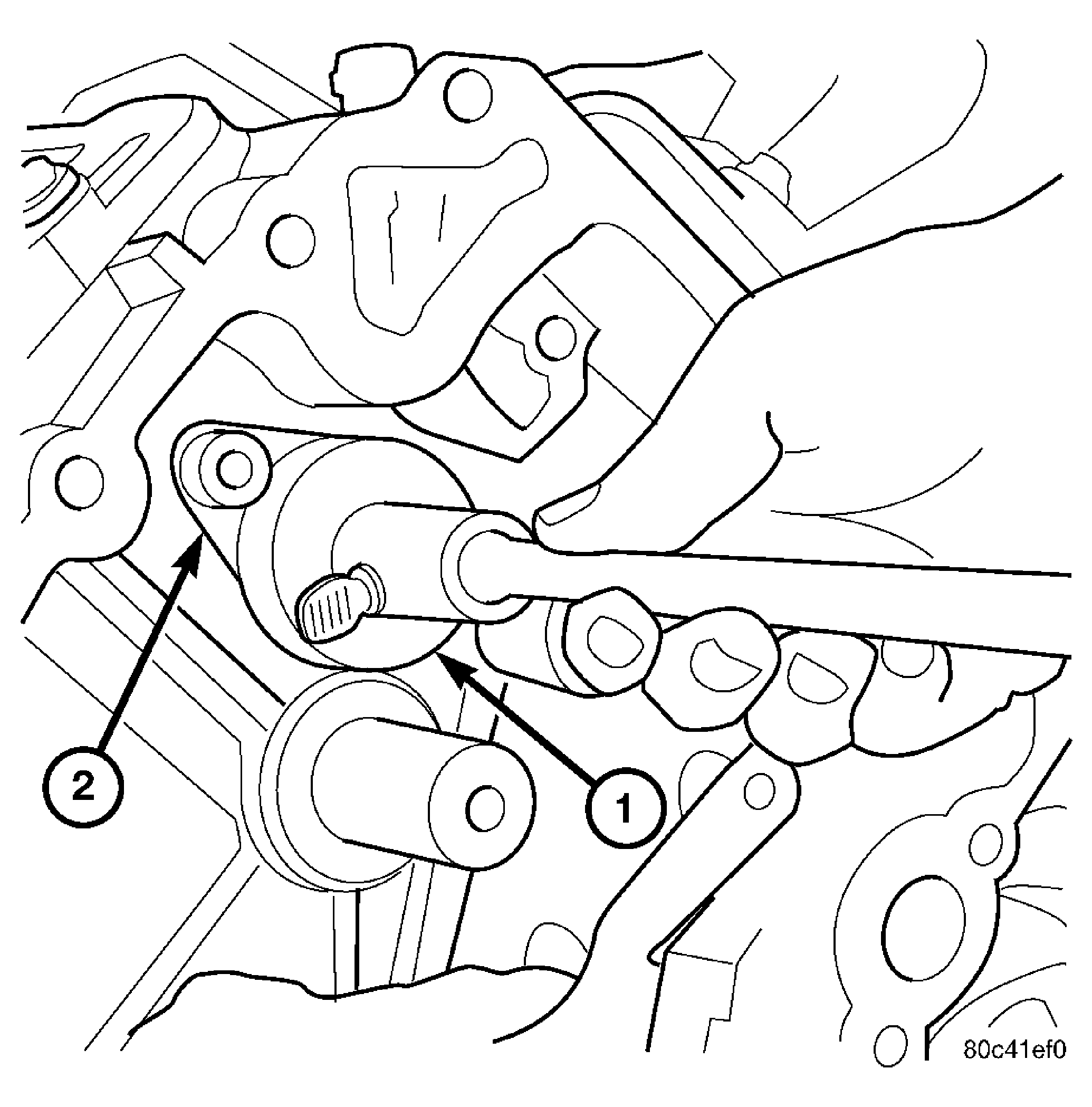

    Fig 2: Counterbalance Shaft Removal/Installation Tool
    GC0011851Courtesy of CHRYSLER LLC
    1 - BALANCE SHAFT REMOVAL AND INSTALLATION TOOL
    2 - BALANCE SHAFT THRUST PLATE
  2. Using Balance Shaft Remover/Installer 8641 (1), remove the balance shaft from the engine.
