Left Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

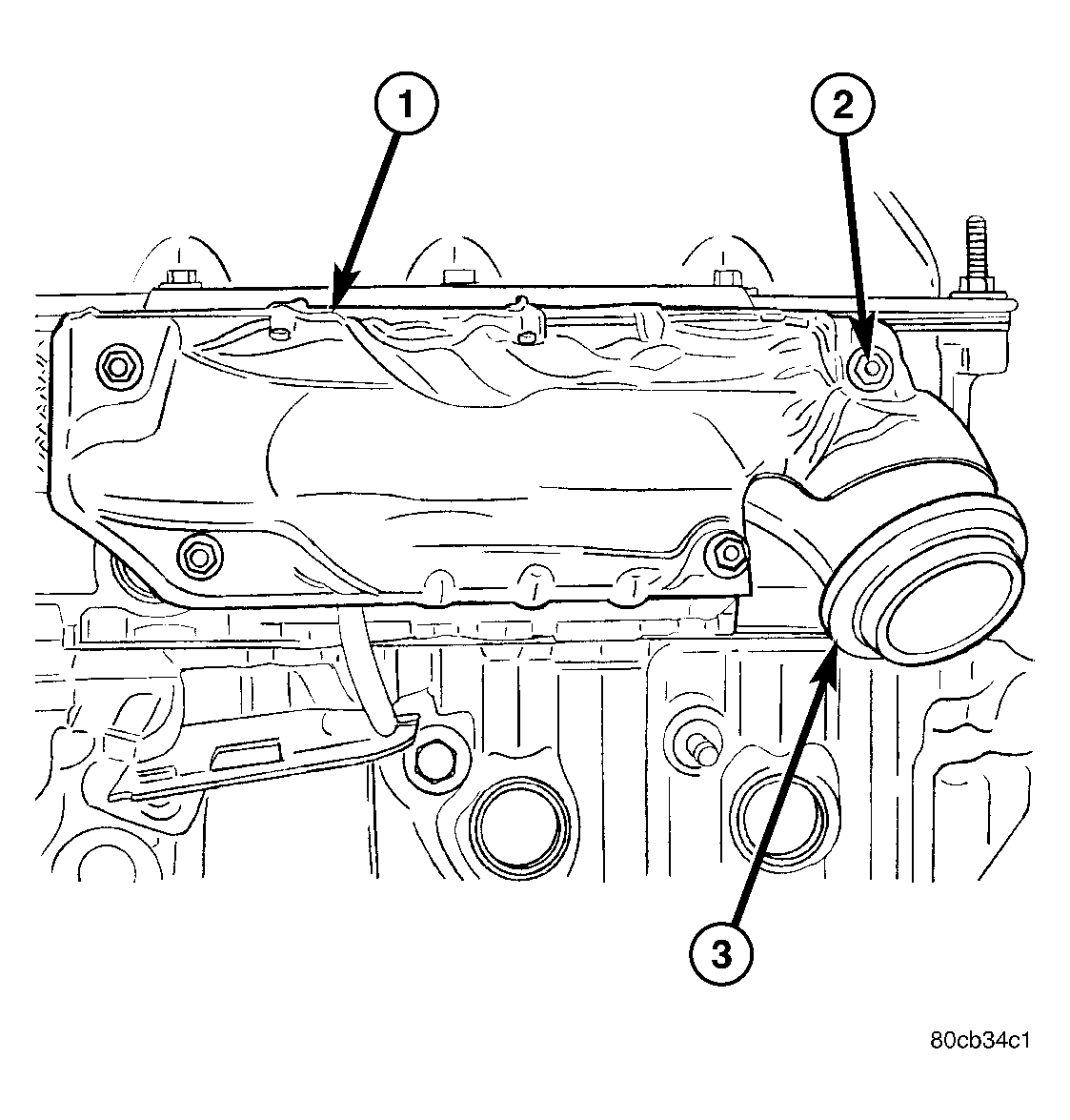

Fig 1: Exhaust Manifold - Left
GC0011838Courtesy of CHRYSLER LLC
  1. Disconnect the negative cable from the battery.
  2. Raise and support the vehicle.
  3. Remove the bolts and nuts attaching the exhaust pipe to the engine exhaust manifold.
  4. Lower the vehicle.
  5. Remove the exhaust heat shields (1).
  6. Remove bolts, nuts (2) and washers attaching manifold to cylinder head.
  7. Remove manifold and gasket from the cylinder head.
