Oil Pump

WARNING: This page is about a different variant/trim than selected.

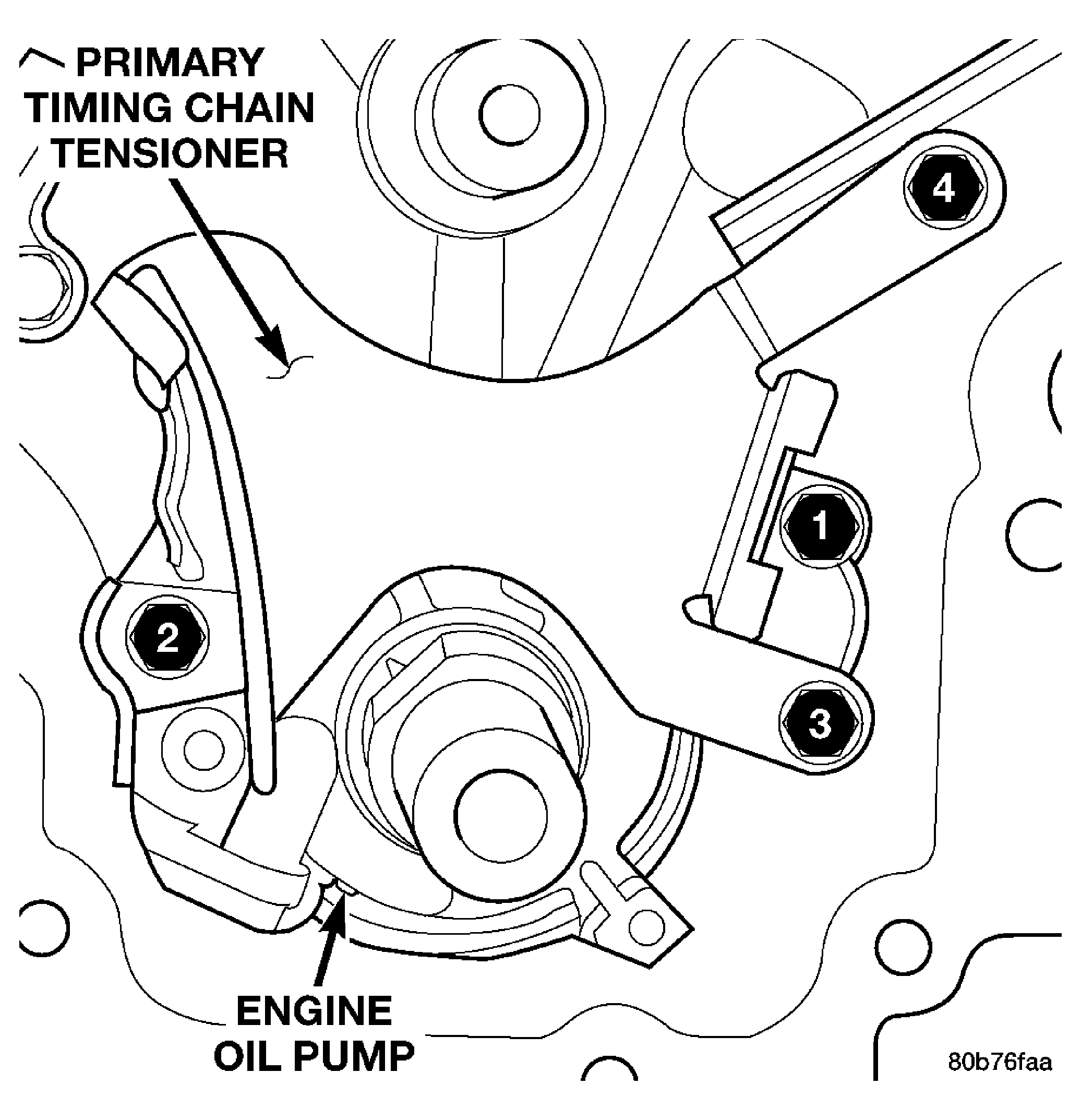

Fig 1: Oil Pump & Primary Timing Chain Tensioner Tightening Sequence
GC0011830Courtesy of CHRYSLER LLC
  1. Position the oil pump onto the crankshaft and install one oil pump retaining bolt.
  2. Position the primary timing chain tensioner and install three retaining bolts.
  3. Tighten the oil pump and primary timing chain tensioner retaining bolts to 28 N.m (250 in. lbs.) in the sequence shown in illustration.
  4. Install the secondary timing chain tensioners and timing chains. See INSTALLATION .
  5. Install the timing chain cover. See INSTALLATION .
  6. Install the pick-up tube and oil pan. See INSTALLATION .
