Oil Pan

WARNING: This page is about a different variant/trim than selected.

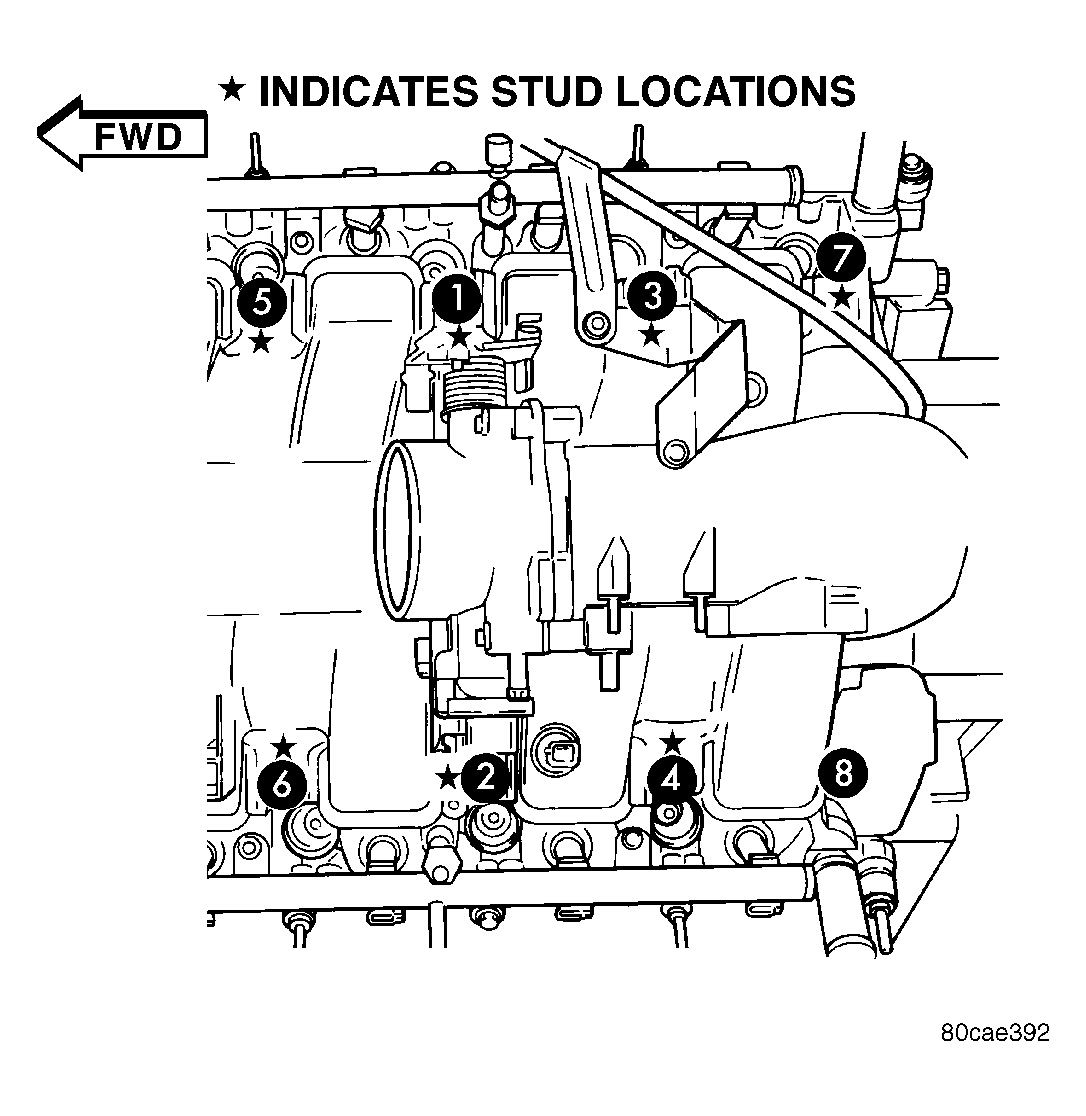

Fig 1: Intake Manifold Bolt Tightening Sequence (Reverse For Removal)
GC0011835Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove the radiator fan. Refer to REMOVAL .
  3. Remove the intake manifold. See REMOVAL .

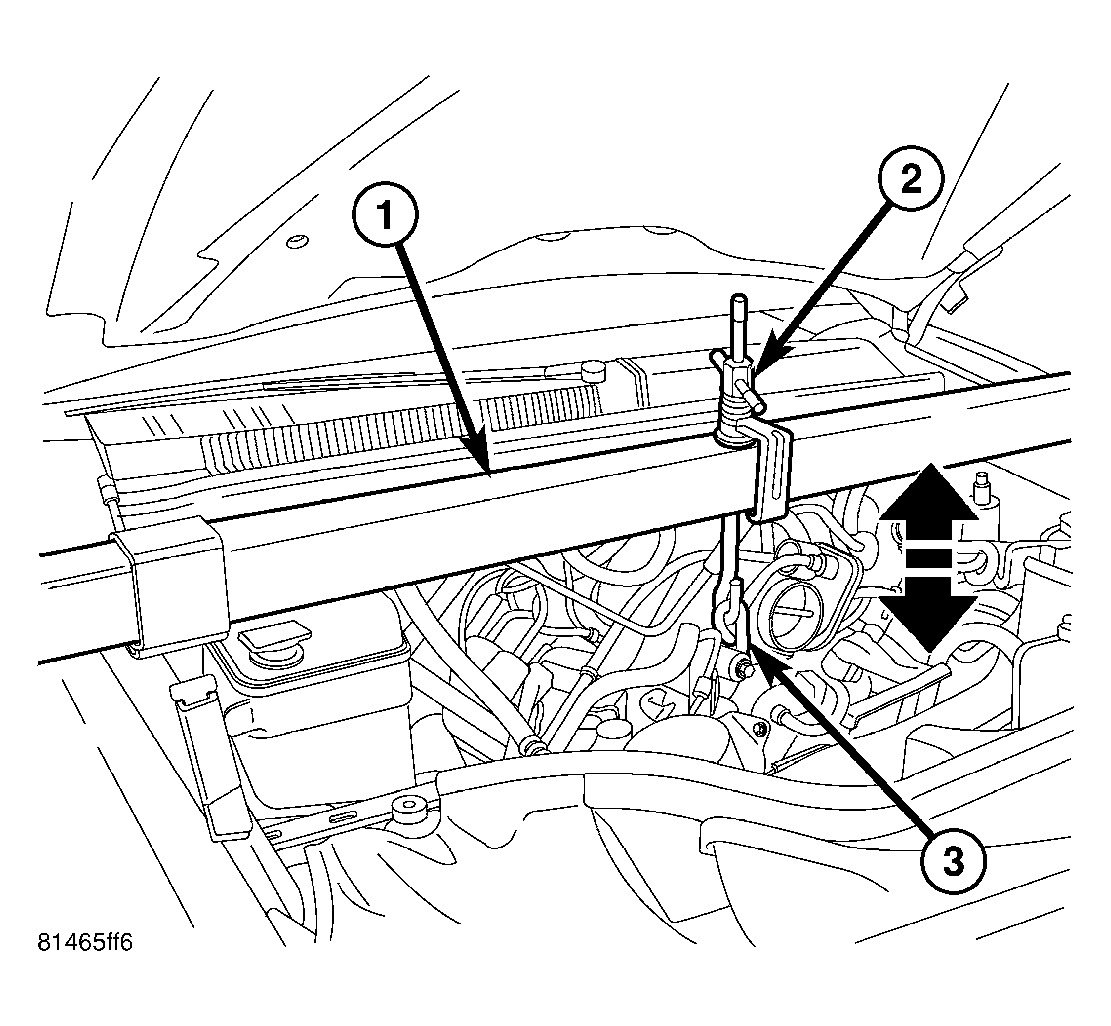

    Fig 2: Engine Support Tool
    GC0011821Courtesy of CHRYSLER LLC
  4. Install Special Tool #8534 Do not raise engine at this time.

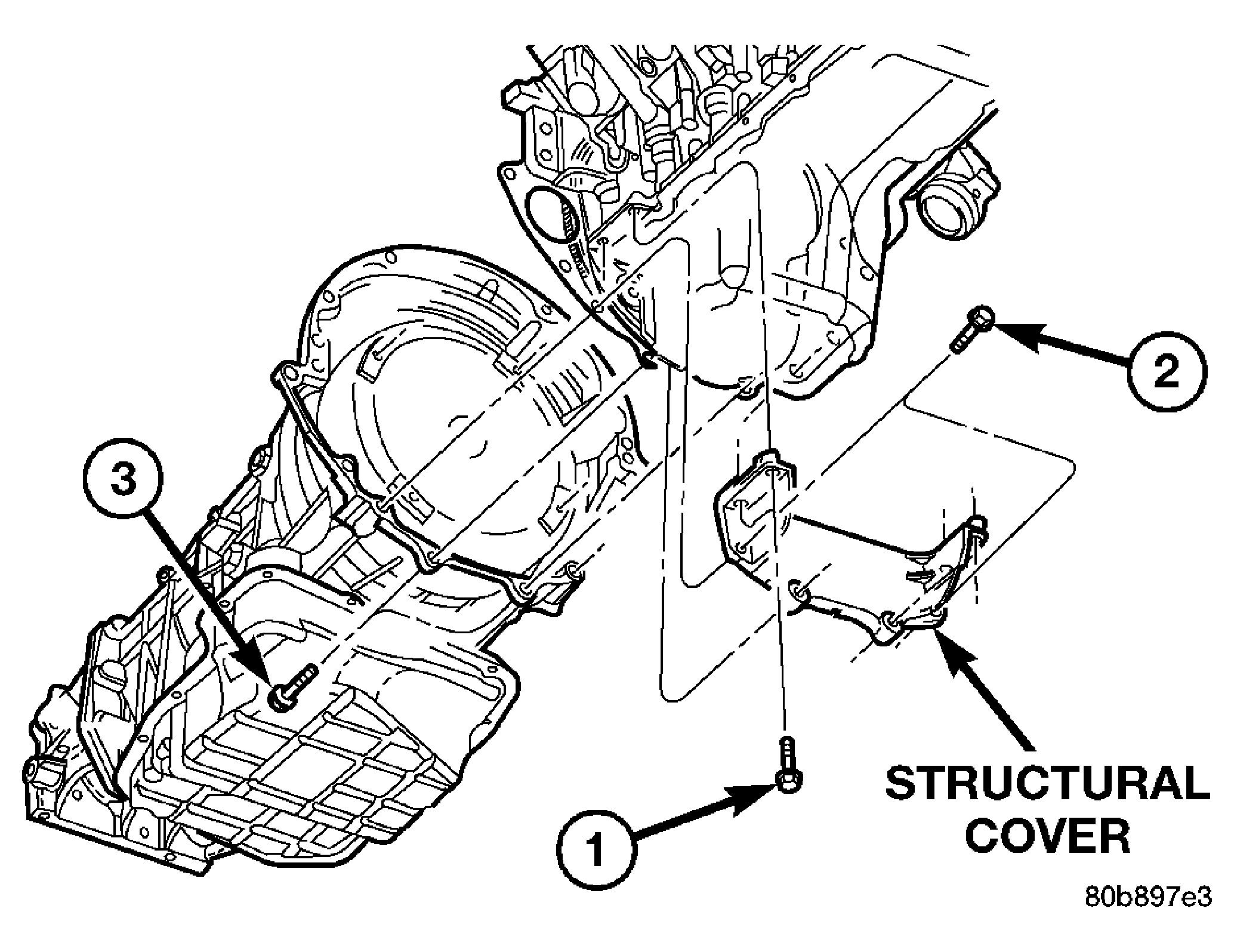

    Fig 3: Structural Cover
    GC0011818Courtesy of CHRYSLER LLC
  5. Remove the structural cove using sequence shown in illustration. See REMOVAL .

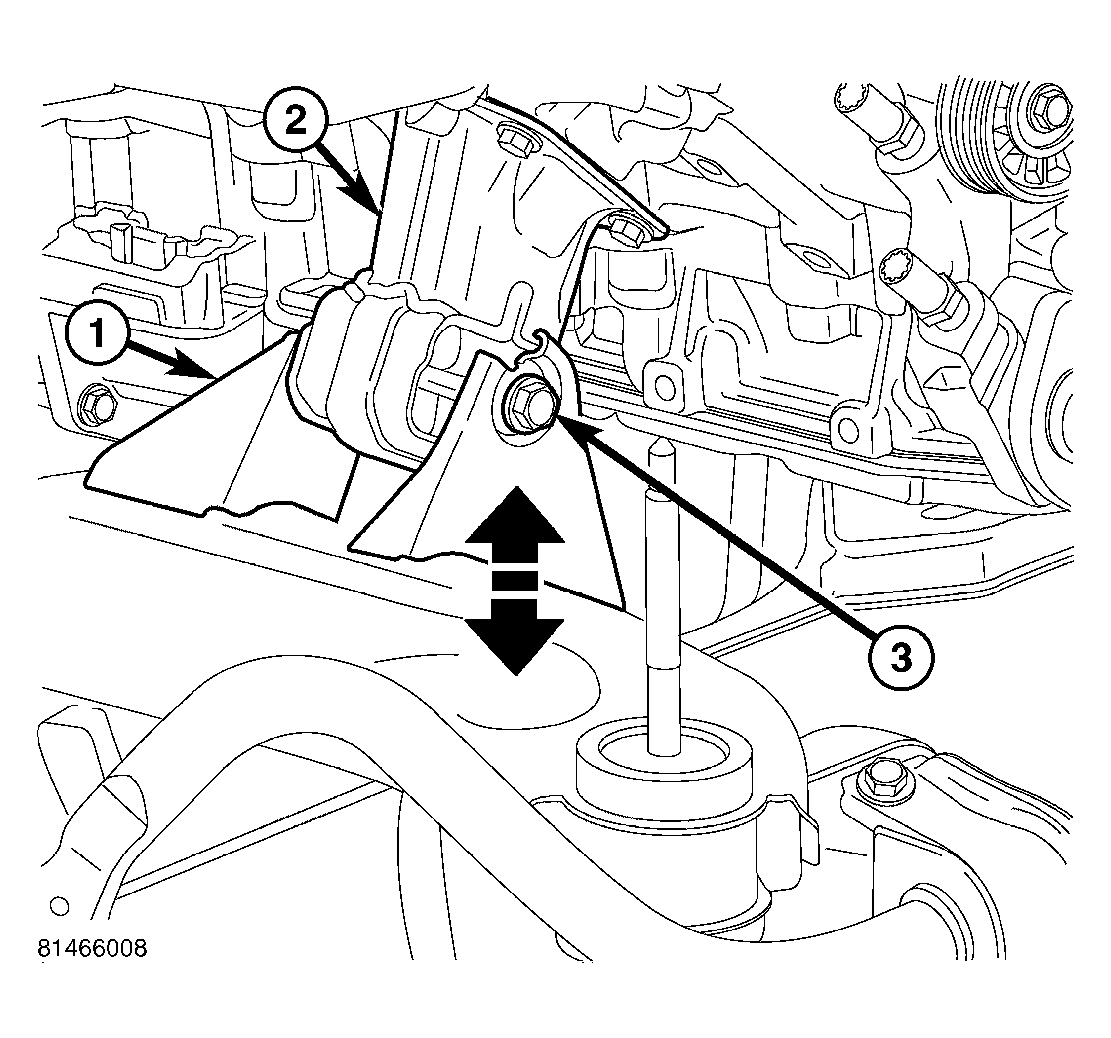

    Fig 4: Engine Mount Bolt
    GC0027235Courtesy of CHRYSLER LLC
  6. Remove both left and right side engine mount through bolts (3).
    Fig 5: Engine Support Tool
    GC0011821Courtesy of CHRYSLER LLC
  7. Raise engine using Engine Support 8534 (1), to provide clearance to remove oil pan.
  8. Drain engine oil and remove oil filter.

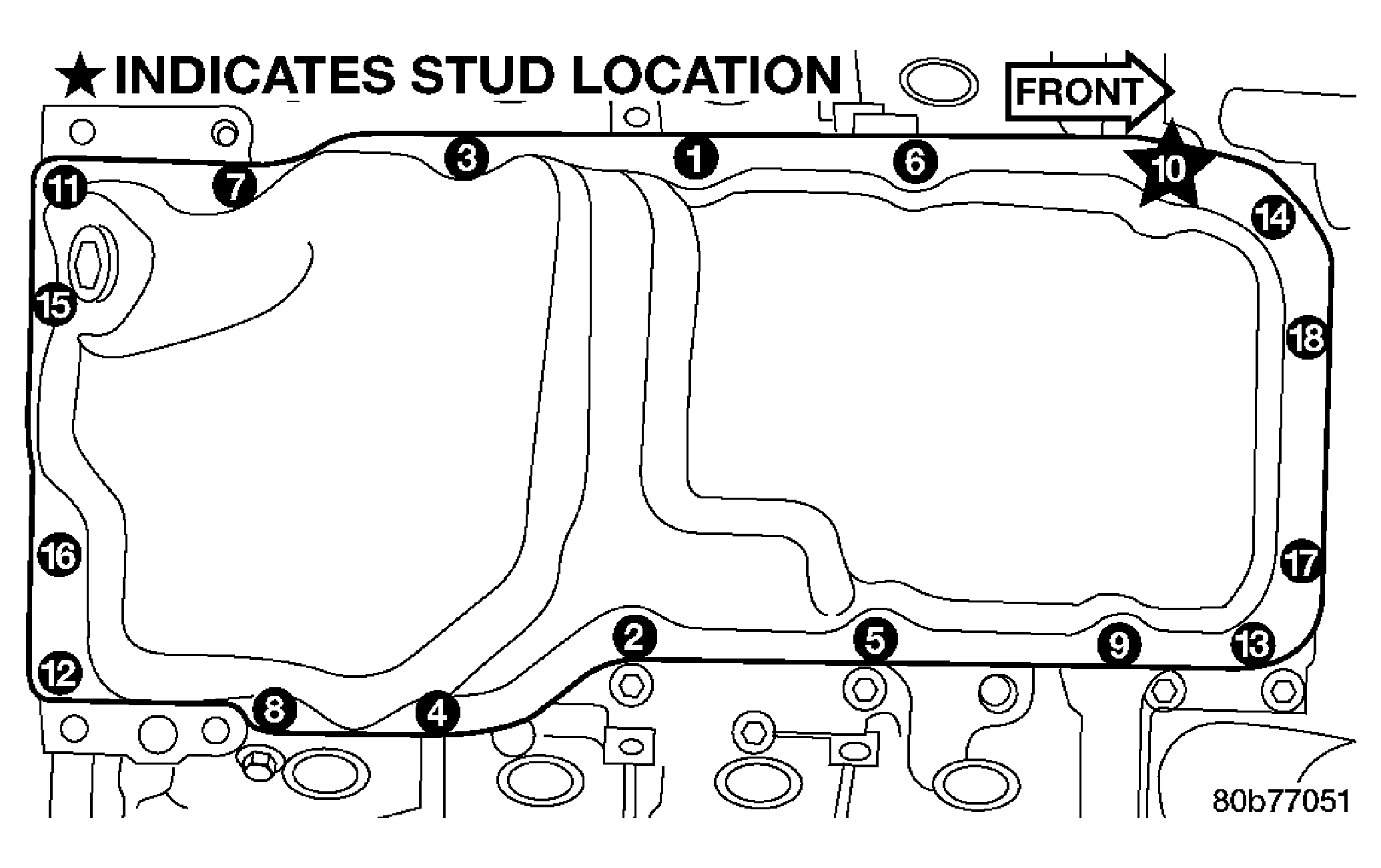

    Fig 6: Oil Pan Mounting Bolt Sequence
    GC0011820Courtesy of CHRYSLER LLC
    NOTE: Do not pry on oil pan or oil pan gasket. Gasket is mounted to engine and does not come out with oil pan.
  9. Remove the oil pan mounting bolts and oil pan.
  10. Unbolt oil pump pickup tube and remove tube and oil pan gasket from engine.
