Crankshaft Oil Seal - Rear

WARNING: This page is about a different variant/trim than selected.

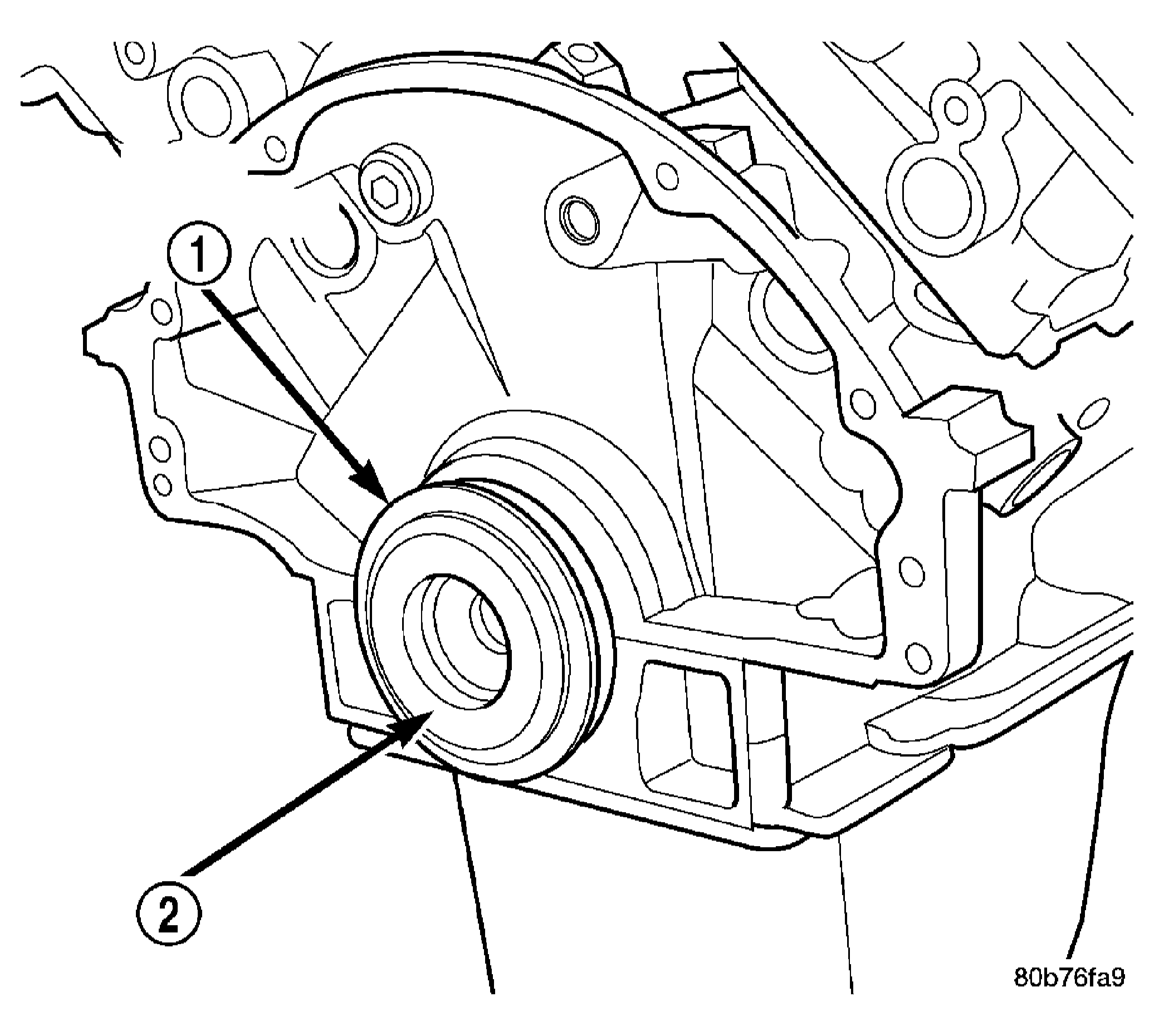

Fig 1: Crankshaft Rear Oil Seal Guide Special Tool 8349-2 & Oil
GC0011784Courtesy of CHRYSLER LLC
  1. Lubricate the crankshaft flange with engine oil.
  2. Position the Seal Installer 8349-2 (2) onto the crankshaft rear face. Then position the crankshaft rear oil seal (1) onto the guide.

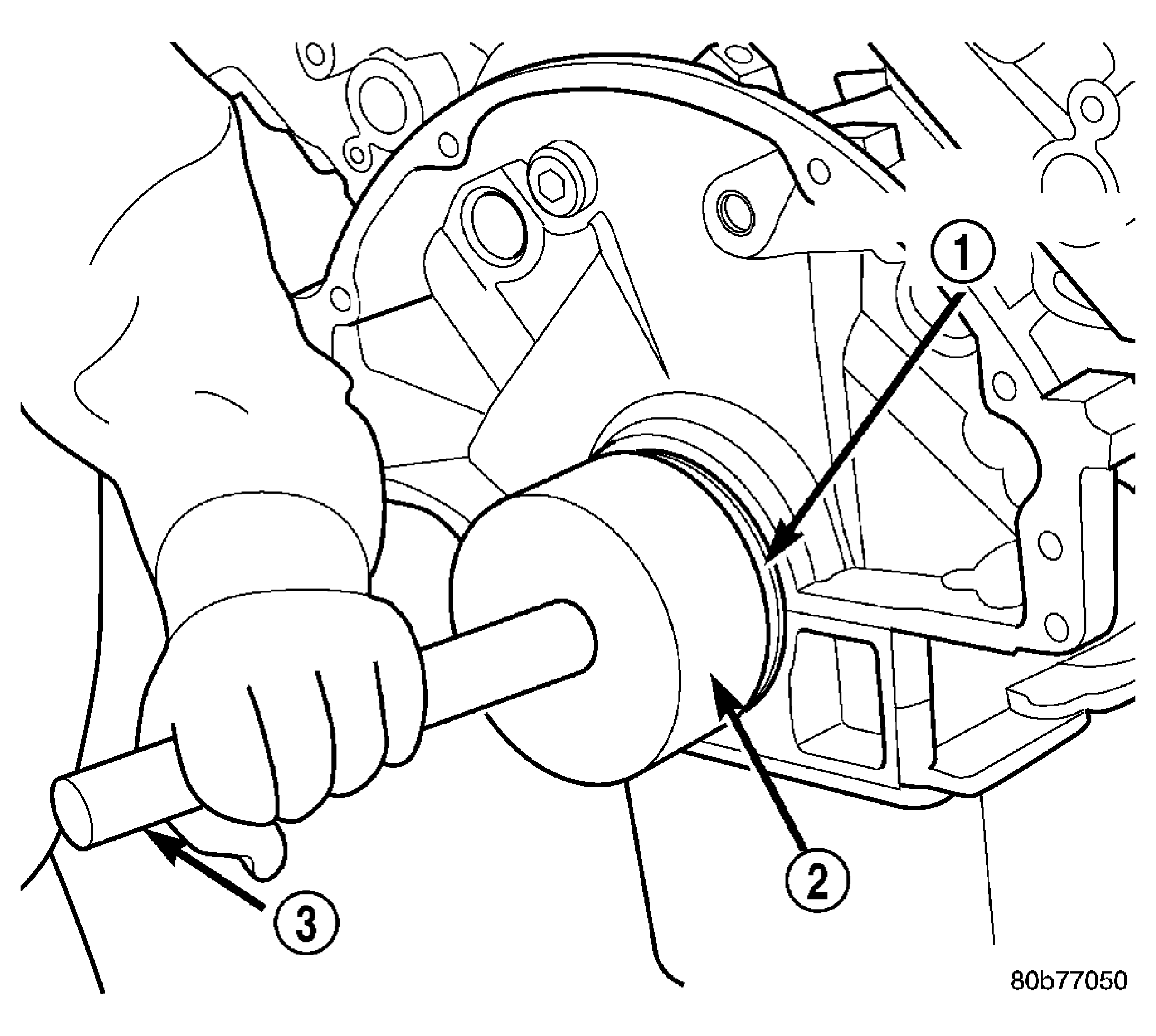

    Fig 2: Installing Crankshaft Rear Oil Seal
    GC0011785Courtesy of CHRYSLER LLC
  3. Using the Seal Installer 8349 (2) and Universal Drive Handle C-4171 (3), with a hammer, tap the seal (1) into place. Continue to tap on the driver handle until the seal installer seats against the cylinder block crankshaft bore.
  4. Install the flexplate. See INSTALLATION .
  5. Install the transmission.
