Crankshaft Oil Seal-Front

WARNING: This page is about a different variant/trim than selected.

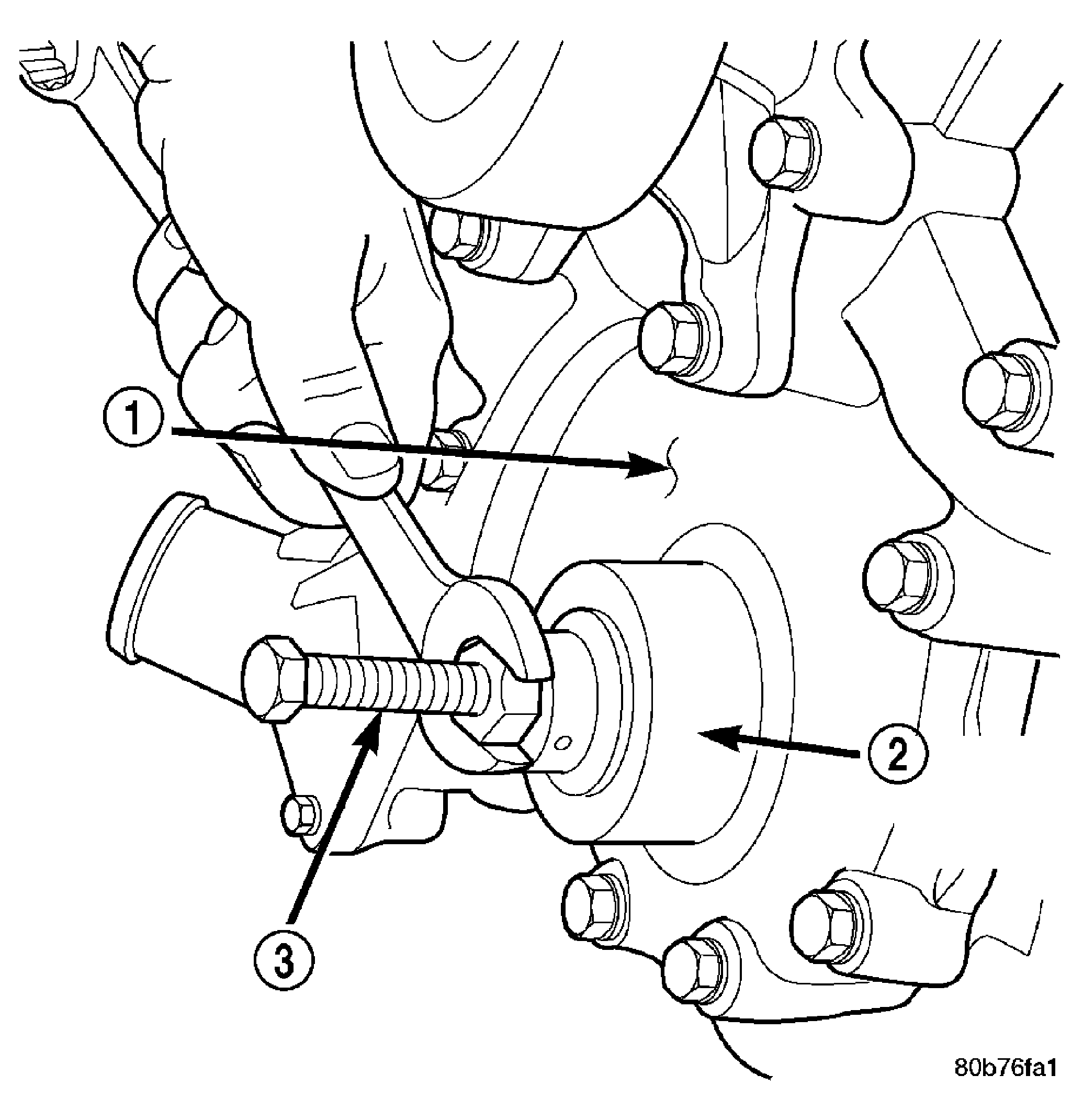

Fig 1: Removing Crankshaft Front Seal
GC0011780Courtesy of CHRYSLER LLC
CAUTION: To prevent severe damage to the Crankshaft, Damper or Damper Installer 8512A, thoroughly clean the damper bore and the crankshaft nose before installing Damper.
  1. Using the Seal Installer 8348 (2) and Damper Installer 8512A (3), install the crankshaft front seal.
  2. Install the vibration damper. See INSTALLATION .
  3. Install the radiator cooling fan and shroud. Refer to INSTALLATION .
  4. Install the upper radiator hose.
  5. Install A/C compressor and tighten fasteners to 54 N.m (40 ft. lbs.). Refer to INSTALLATION .
  6. Install the accessory drive belt. Refer to INSTALLATION .
  7. Refill the cooling system. Refer to STANDARD PROCEDURE .
  8. Connect the negative battery cable to battery.
