Cylinder Head Cover(S)

WARNING: This page is about a different variant/trim than selected.

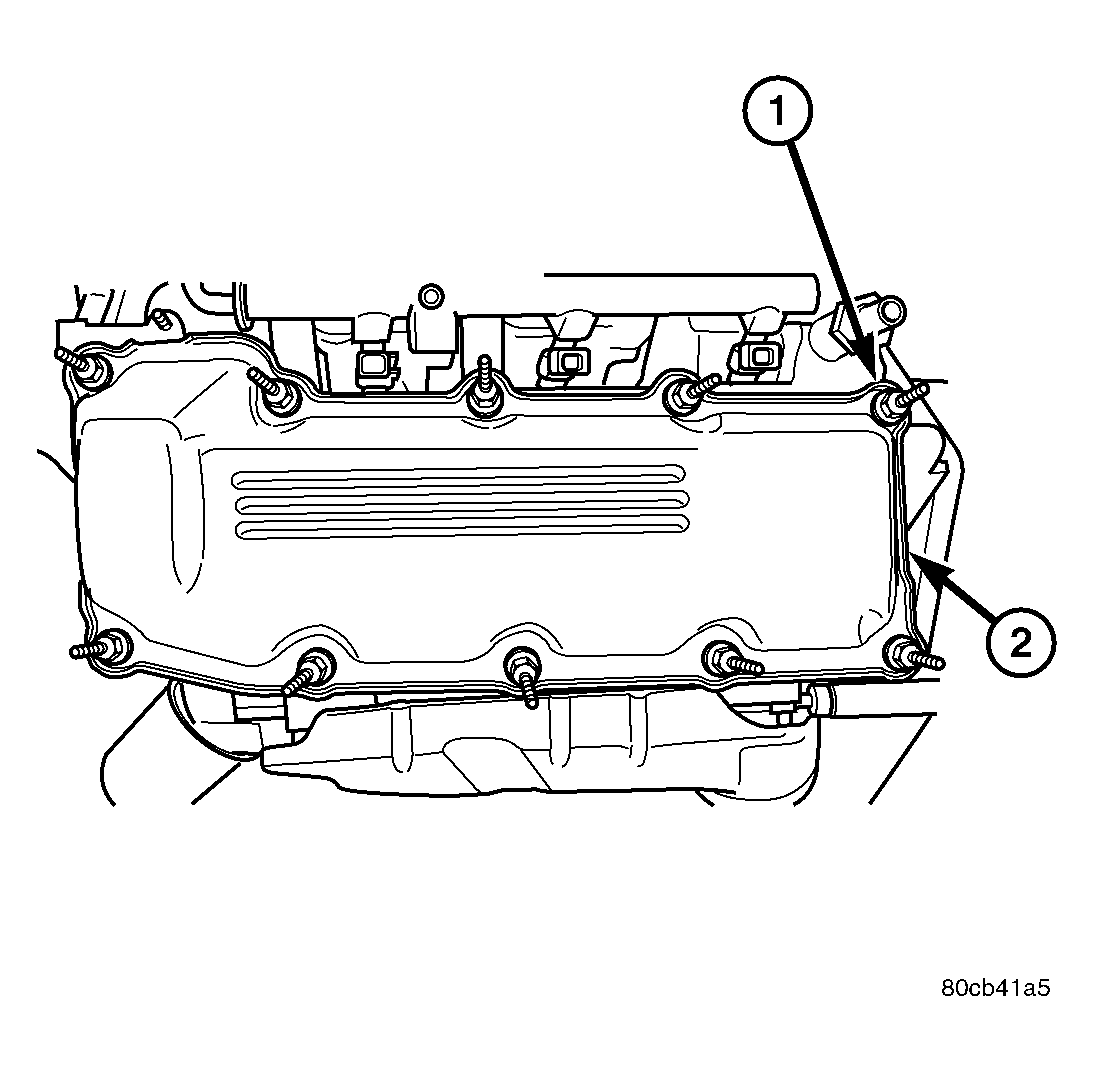

Fig 1: Cylinder Head Cover - Typical
GC0011761Courtesy of CHRYSLER LLC
NOTE: The gasket may be used again, providing no cuts, tears, or deformation has occurred.
  1. Disconnect negative cable from battery.
  2. Remove the resonator assemble and air inlet hose.
  3. Disconnect injector connectors and unclip the injector harness.
  4. Route injector harness in front of cylinder head cover (2).
  5. Disconnect the left side breather tube and remove the breather tube.
  6. Remove the cylinder head cover mounting bolts (1).
  7. Remove cylinder head cover and gasket.
