Seat-Second Row

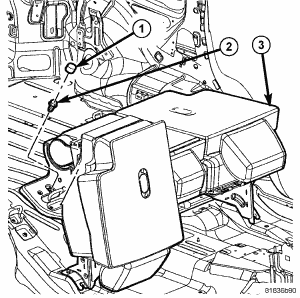

Fig 1: Identifying Bolt, Seats, And Right Side Trim Cap
GC0065161Courtesy of CHRYSLER LLC
  1. Tumble the seats (3) forward.
  2. Remove the right side trim cap (1) and bolt (2).

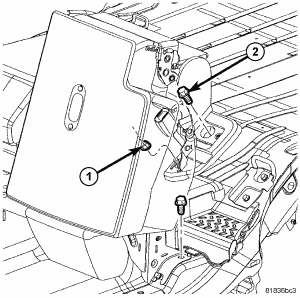

    Fig 2: Identifying Left Side Center Seat Section Bolt And Nut
    GC0065162Courtesy of CHRYSLER LLC
  3. Remove the bolt (2) and nut (1) from the left side center seat section.

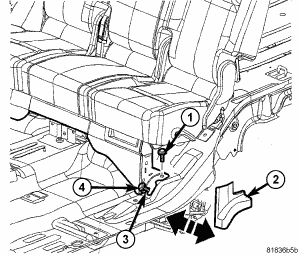

    Fig 3: Identifying Trim Covers And Bolts
    GC0065163Courtesy of CHRYSLER LLC
  4. Tumble seats back down and latch.
  5. Remove the trim covers (2).
  6. Remove the rear bolts (1) from the bracket.
    Fig 4: Identifying Bolts And Seat Assembly
    GC0065164Courtesy of CHRYSLER LLC
  7. Loosen the front bolts (2) and remove the seat assembly (1) from the liftgate.
