Exhaust System & Turbocharger: Muffler: Description

Fig 1: Muffler And Tailpipe Assembly - 3.7L/4.7L

Courtesy of CHRYSLER LLC

1 - EXHAUST PIPE/CATALYTIC CONVERTER FLANGE

2 - NUT

3 - MUFFLER AND TAILPIPE ASSEMBLY

4 - INSULATOR

5 - GROUND STRAP

All engines use a stainless steel muffler and tailpipe assembly to control exhaust noise levels and exhaust back pressure. The 3.7L/4.7L muffler and tailpipe are a one piece assembly. The 5.7L/6.1L engine muffler are service separately.

Fig 2: Muffler And Tailpipe Assembly Components

Courtesy of CHRYSLER LLC

1 - MUFFLER TO FRONT EXHAUST PIPE CATALYTIC CONVERTER FLANGE

2 - MUFFLER

3 - INSULATOR

4 - MUFFLER TO TAILPIPE RESONATOR ASSEMBLY

5 - TAILPIPE/RESONATOR ASSEMBLY

The 5.7L tailpipe is serviced separately.

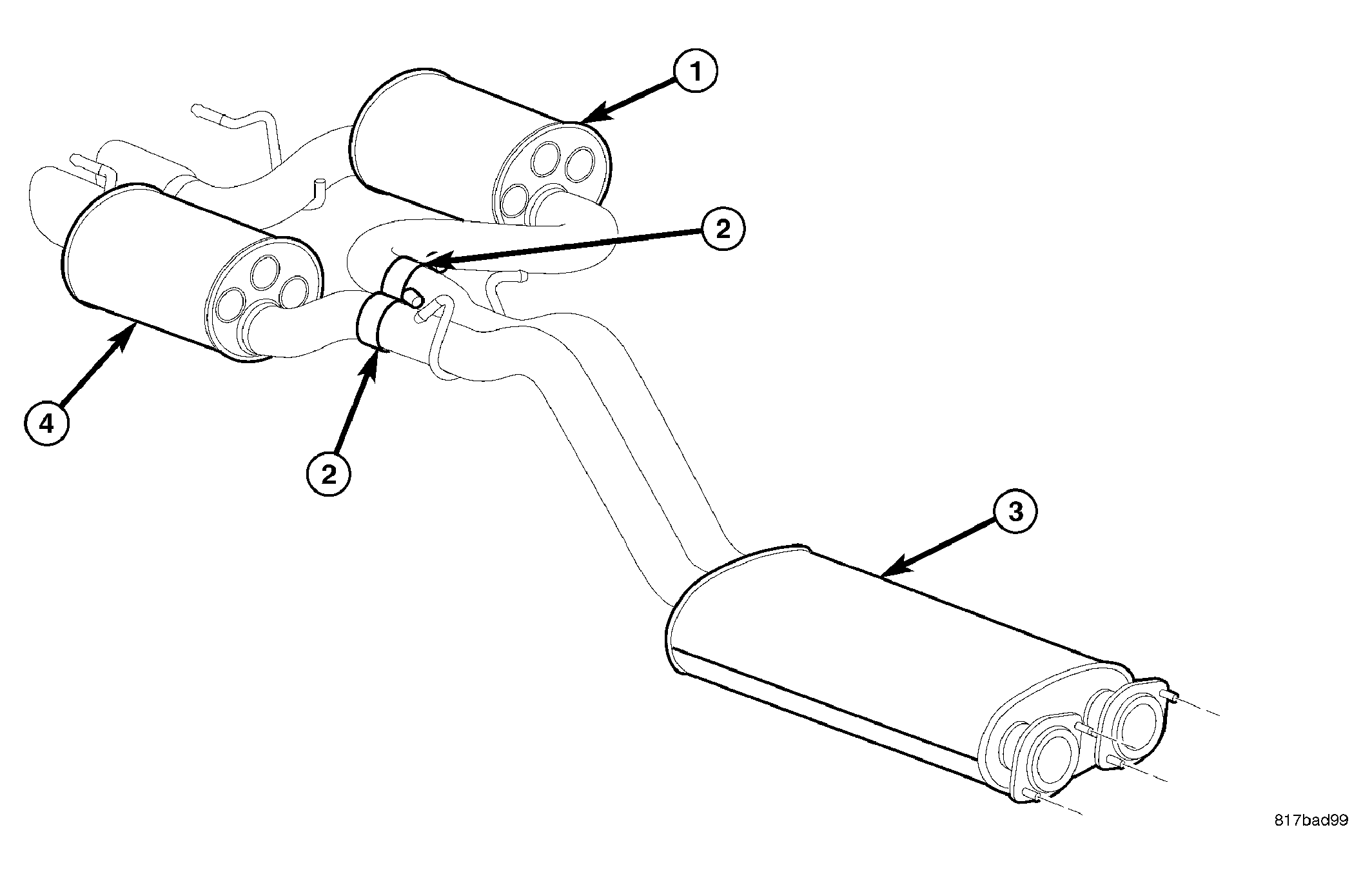

Fig 3: Muffler And Tailpipe Assembly - 6.1L

Courtesy of CHRYSLER LLC

1 - LH RESONATOR AND TAILPIPE

2 - CLAMP

3 - MUFFLER

4 - RH RESONATOR AND TAILPIPE

The 6.1L tailpipes are serviced separately.
