Liftgate Glass Hinge: Removal

  1. Open tailgate.
  2. Open and support liftgate glass.
  3. Remove wiper motor cover (right hinge only). (Refer to ELECTRICAL/REAR WIPERS/WASHERS/REAR WIPER MOTOR TRIM COVER - REMOVAL) .
  4. Remove the wiper blade. (Refer to ELECTRICAL/FRONT WIPERS/WASHERS/REAR WIPER BLADE - REMOVAL) and (Refer to ELECTRICAL/REAR WIPERS/WASHERS/REAR WIPER BLADE - REMOVAL) .
  5. Remove the nut attaching the liftgate hinge to the liftgate glass.
  6. Mark the position of the hinge in the top and remove the bolts attaching the hinge to the top. See Fig 1.

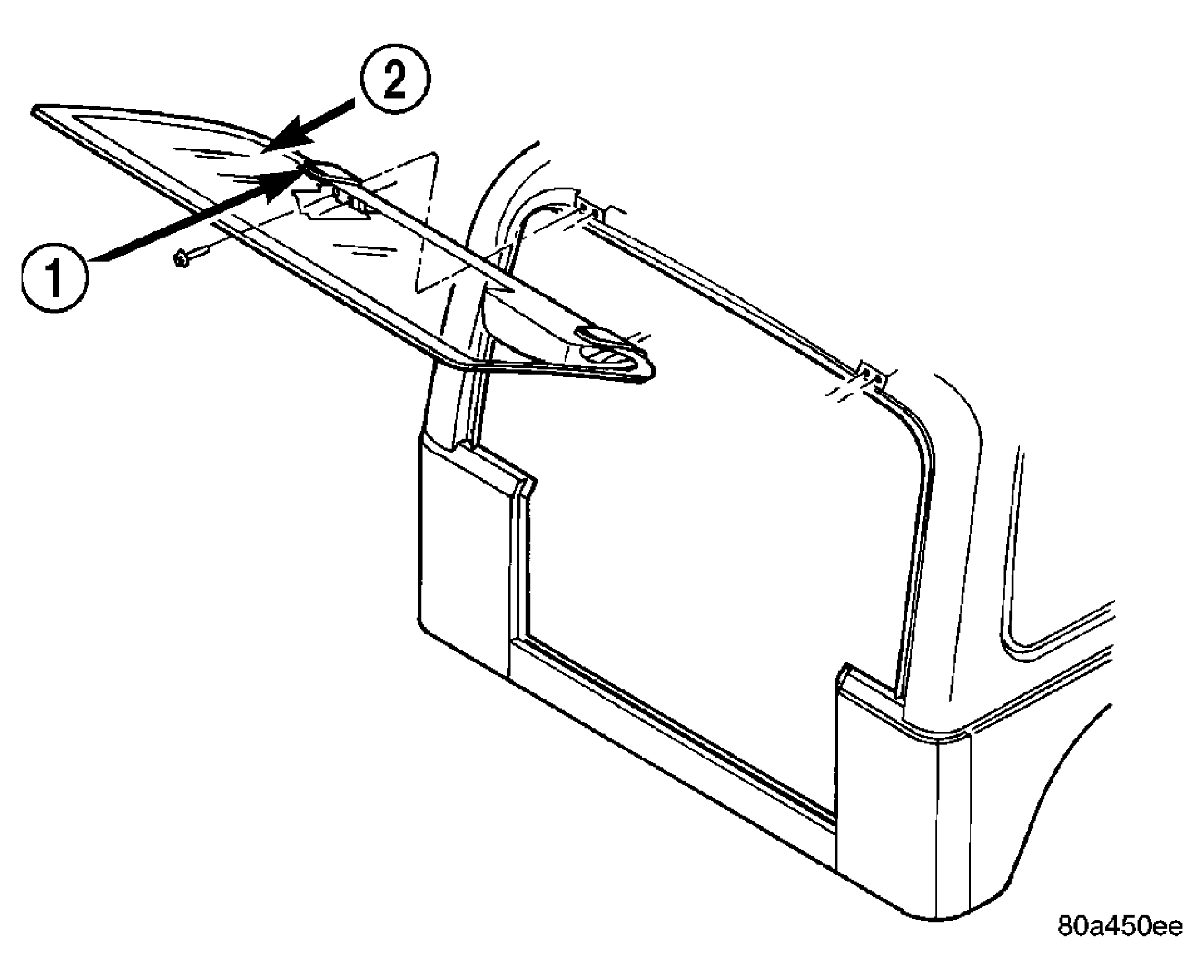

Fig 1: Liftgate Hinge
GC0030569Courtesy of DAIMLERCHRYSLER CORP.
1 - LIFTGATE HINGE
2 - LIFTGATE GLASS
