Hard Top: Removal

  1. Disengage latches at windshield frame. See Fig 1.
    NOTE: The two forward bolts/nuts are not captured. Do not lose the nuts when removing.
  2. Remove the six bolts that attach the hard top to the body. See Fig 2.
  3. Depress tab on rear wiper motor connector and pull downward to disengage. See Fig 3.
  4. Disconnect the rear washer fluid hose. Cap the hose to prevent washer fluid leakage. See Fig 4.
    CAUTION: Protect the lower edges of the top from potential damage, cracks, paint chips, gouges and scratches that are not covered under warranty.
  5. Carefully remove the hard top assembly from the vehicle.
Fig 1: Hard/Soft Top Latch
GC0030642Courtesy of DAIMLERCHRYSLER CORP.
1 - LATCH
2 - HARD TOP
3 - WINDSHIELD FRAME
Fig 2: Hard Top Removal
GC0030643Courtesy of DAIMLERCHRYSLER CORP.
1 - HARD TOP
2 - HOLD DOWN BOLT
3 - BODY RAIL
Fig 3: Rear Wiper Wire Harness Connector
GC0030644Courtesy of DAIMLERCHRYSLER CORP.
1 - WIPER MOTOR CONNECTOR

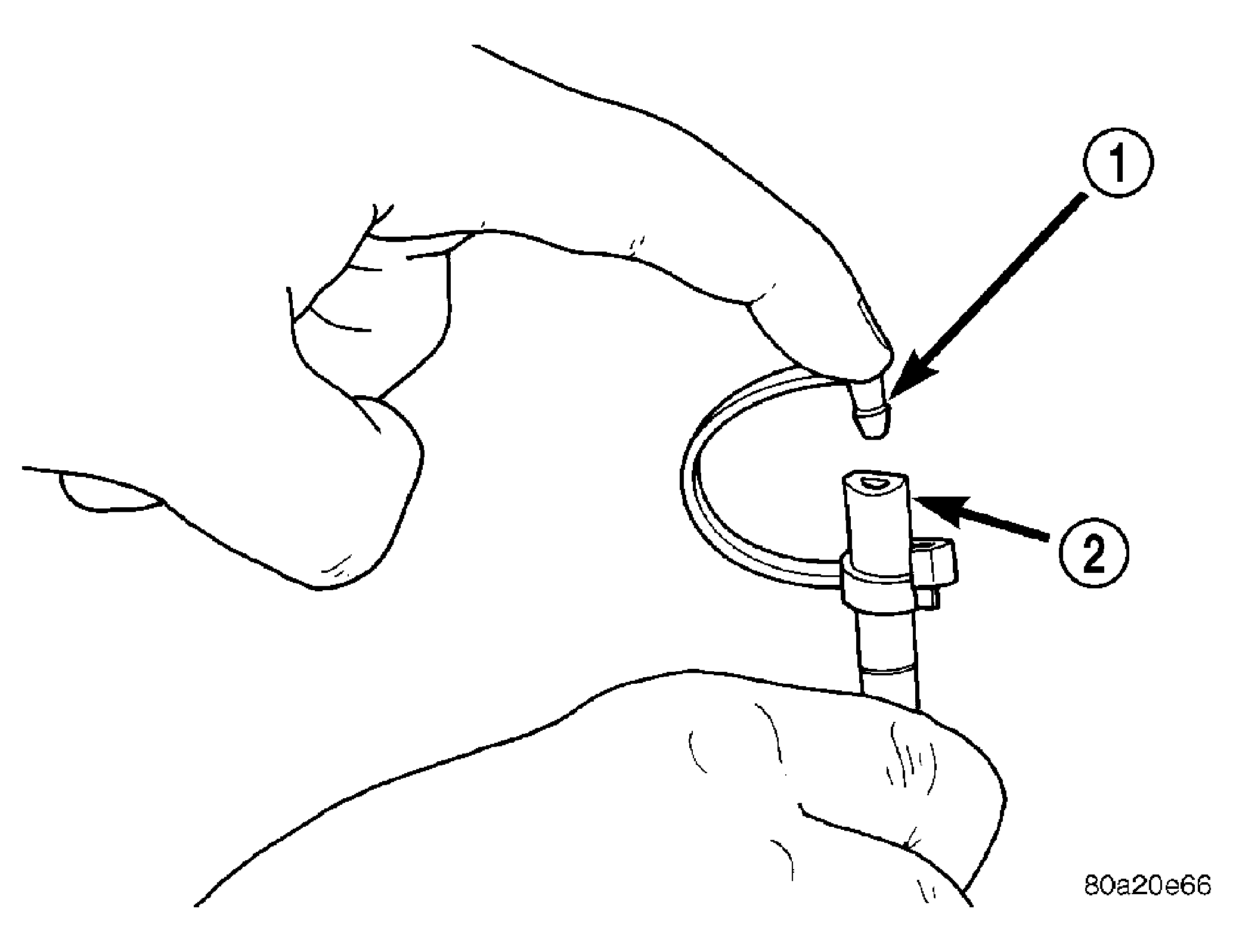

Fig 4: Rear Washer Fluid Tube
GC0030477Courtesy of DAIMLERCHRYSLER CORP.
1 - WASHER HOSE CAP
2 - REAR WASHER SUPPLY HOSE - BODY HALF
