Transfer Case Switch (Except Off-Road Package) - Black 2 Way

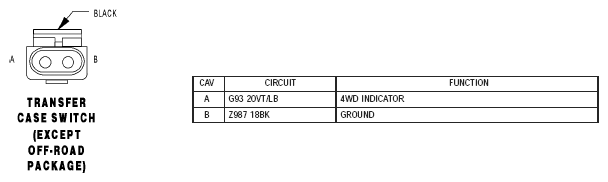

Fig 1: Identifying Connector Pinouts - Transfer Case Switch (Except Off-Road Package) - Black 2 Way

G04764112

Courtesy of DAIMLERCHRYSLER CORPORATION
