Right Dome Lamp - Black 2 Way

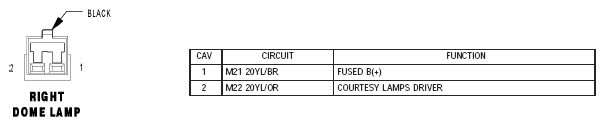

Fig 1: Identifying Connector Pinouts - Right Dome Lamp - Black 2 Way

G04764107

Courtesy of DAIMLERCHRYSLER CORPORATION
