Rear Locker Pump (Off-Road Package) - LT. Gray 3 Way

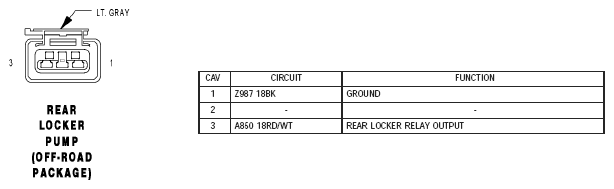

Fig 1: Identifying Connector Pinouts - Rear Locker Pump (Off-Road Package) - LT. Gray 3 Way

G04764102

Courtesy of DAIMLERCHRYSLER CORPORATION
