Passenger Airbag Squib 1 - Yellow 2 Way

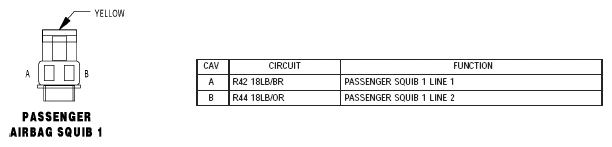

Fig 1: Identifying Connector Pinouts - Passenger Airbag Squib 1 - Yellow 2 Way

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Power Distribution Center Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORPORATION
