Passenger Airbag On-Off Switch (LHD) - 6 Way

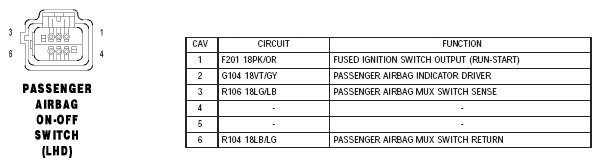

Fig 1: Identifying Connector Pinouts - Passenger Airbag On-Off Switch (LHD) - 6 Way

G04764094

Courtesy of DAIMLERCHRYSLER CORPORATION
