Multi-Function Switch C1 - Gray 20 Way

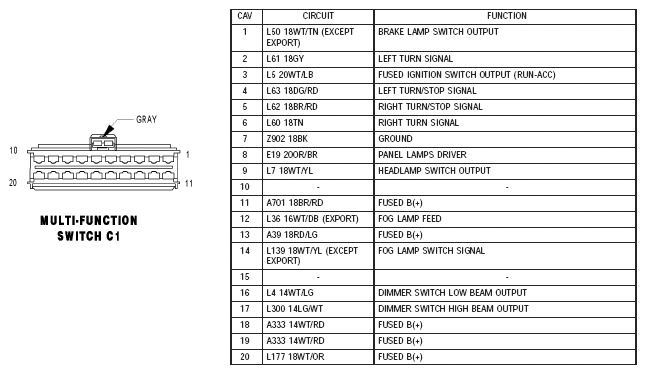

Fig 1: Identifying Connector Pinouts - Multi-Function Switch C1 - Gray 20 Way

G04764092

Courtesy of DAIMLERCHRYSLER CORPORATION
