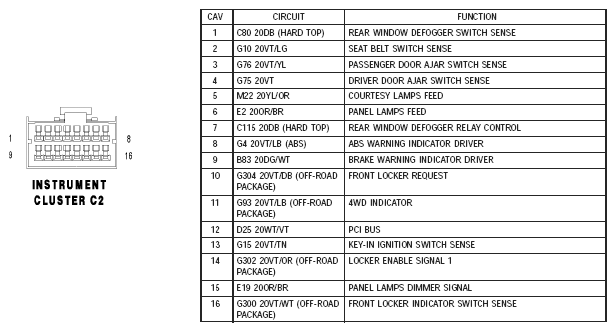

Home >> Jeep >> 2006 >> Wrangler X, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Connector PINOUTS >> Instrument Cluster C2 - 16 Way
