Fuse (FB)

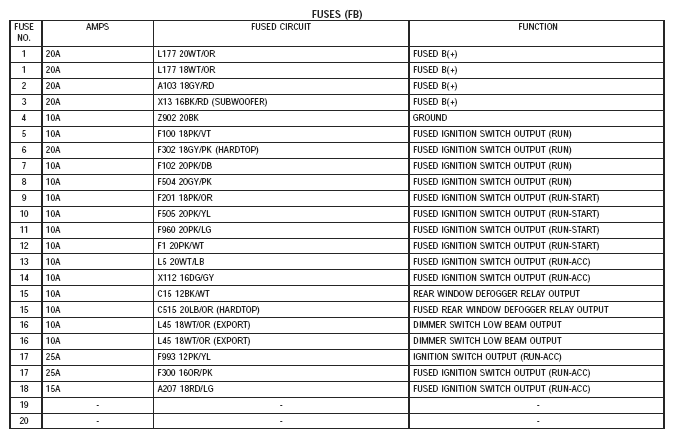

Fig 1: Fuse Block Connector Pinouts Description Chart
G04764084Courtesy of DAIMLERCHRYSLER CORPORATION
