FUAW (PDC)

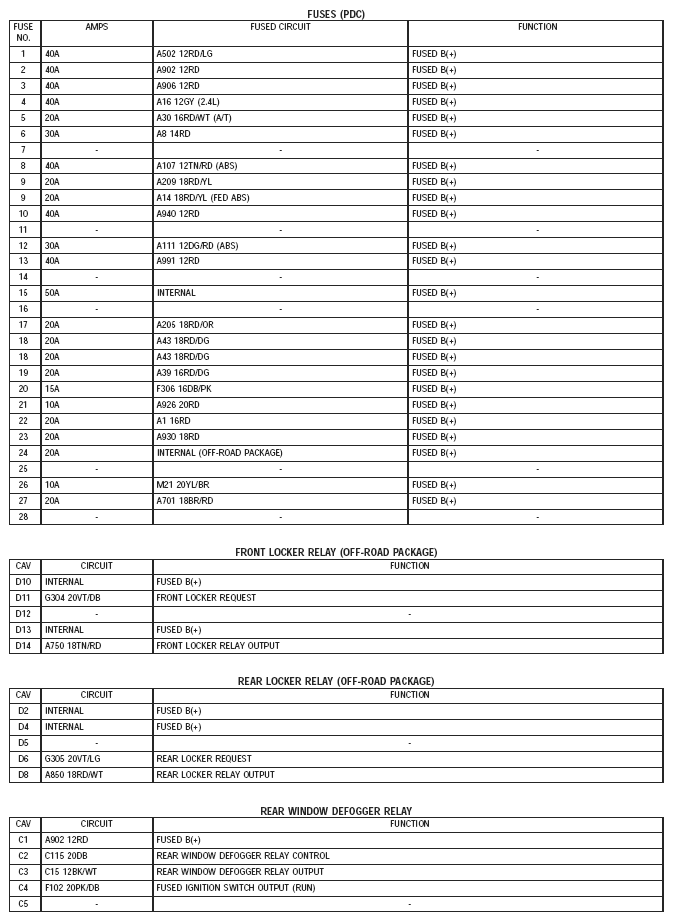

Fig 1: Power Distribution Center Connector Pinouts Description Chart
G04764097Courtesy of DAIMLERCHRYSLER CORPORATION
