Driver Airbag Squib 1 - Yellow 2 Way

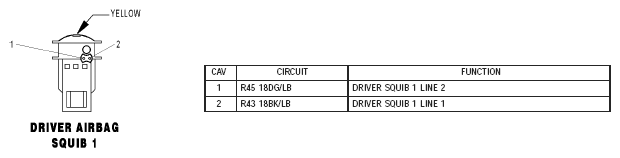

Fig 1: Identifying Connector Pinouts - Driver Airbag Squib 1 - Yellow 2 Way

G04764080

Courtesy of DAIMLERCHRYSLER CORPORATION
