Airbag Control Module - Yellow 22 Way

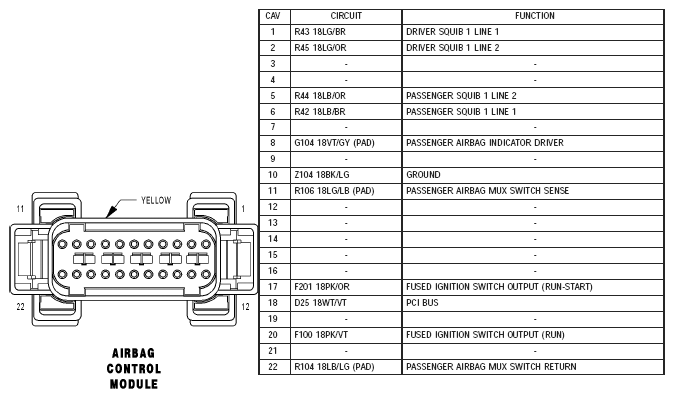

Fig 1: Identifying Connector Pinouts - Airbag Control Module - Yellow 22 Way

G04764074

Courtesy of DAIMLERCHRYSLER CORPORATION
